7 - REGULATION

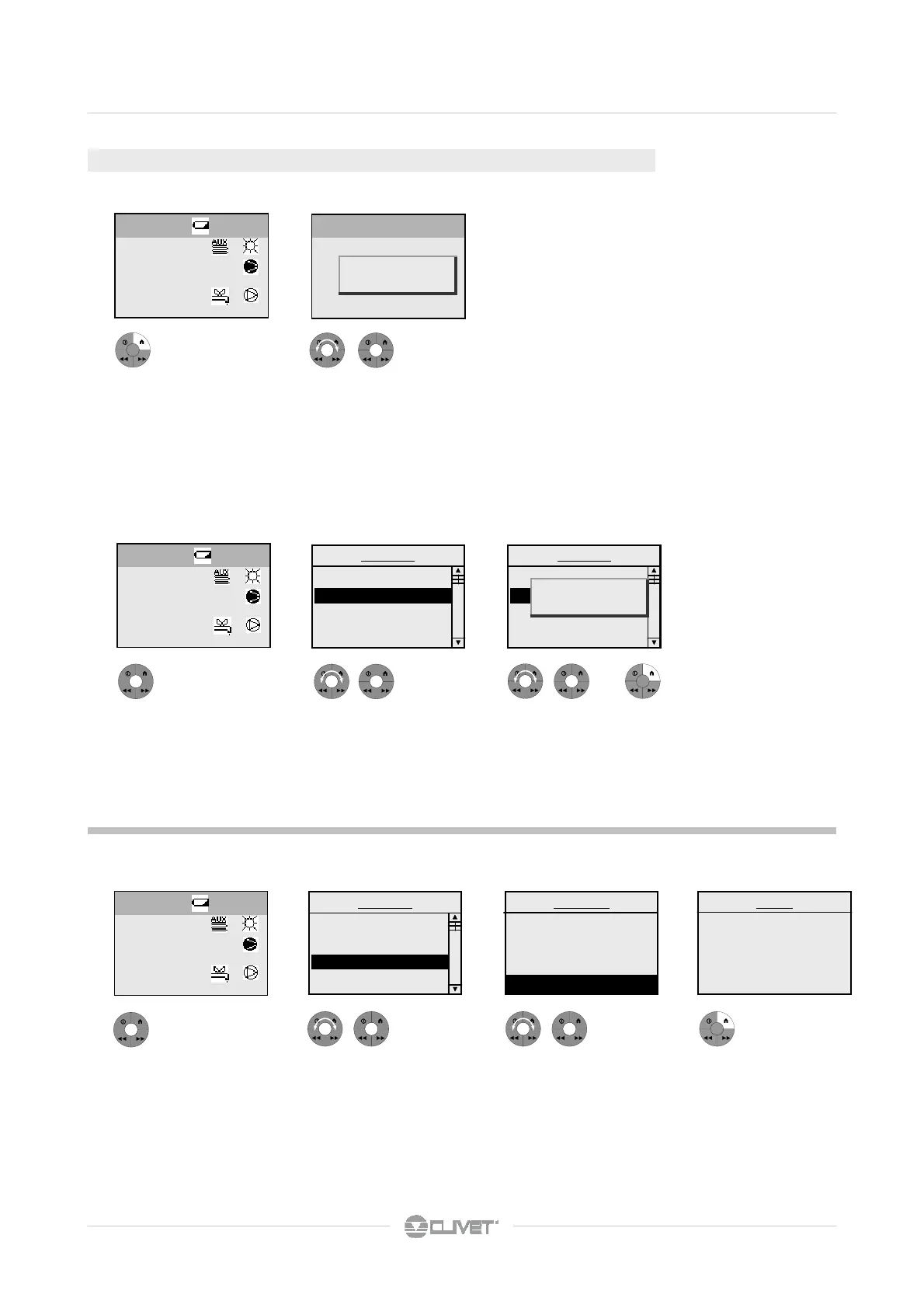

SYSTEM MODALITIES
1
2
1
2
3
Access from the Main Menu
Accesso rapido
STATA VISUALIZATION (visible only after having entered the password INSTALLER )
1
2
3 4
Status ON
Setpoint 19.0 100 %
T In 17.0
T Out 26.0
Fri. 17/10/08 18:02
Status ECO
Setpoint 19.0 100 %
T In 17.0
T Out 26.0
Fri. 17/10/08 18:02
Heating
Cooling
Press. Select the modalities and confirm:
- Heating;
- Cooling.
Status ECO
Setpoint 19.0 100 %
T In 17.0
T Out 26.0
Fri. 17/10/08 18:02
Main Menu
System controls
System modalities
Alarms
Configurations
Main Menu
Sys
Sys
Alar
Configurations
Heating
Cooling
Press. Select SYSTEM
MODALITIES and confirm.
Select the modality and
confirm.
Press Home to go back to the
normal visualization.
Status ECO
Setpoint 19.0 100 %
T In 17.0
T Out 26.0
Fri. 17/10/08 18:02
Press.
Main Menu
System controls
System modalities
Status
Alarms
Select STATA and confirm.
Stata Menu
Base Info
Keypad Info
Stata I/O
Machine stata
Select and confirm:
- Base Info version and base
revision;
- Keypad Info keypad version;
- Unit stata visualization only;
- Stata I/O visualization only.
I/O Unit
Digital inputs
Analogical inputs
Analogical outputs
Digital outputs
Press Home to go back to the
normal visualization.
Base Info :
keypad FW xx
