SIZE 80.3 ÷ 100.4 EXC / 90.3 ÷ 130.4 PRM

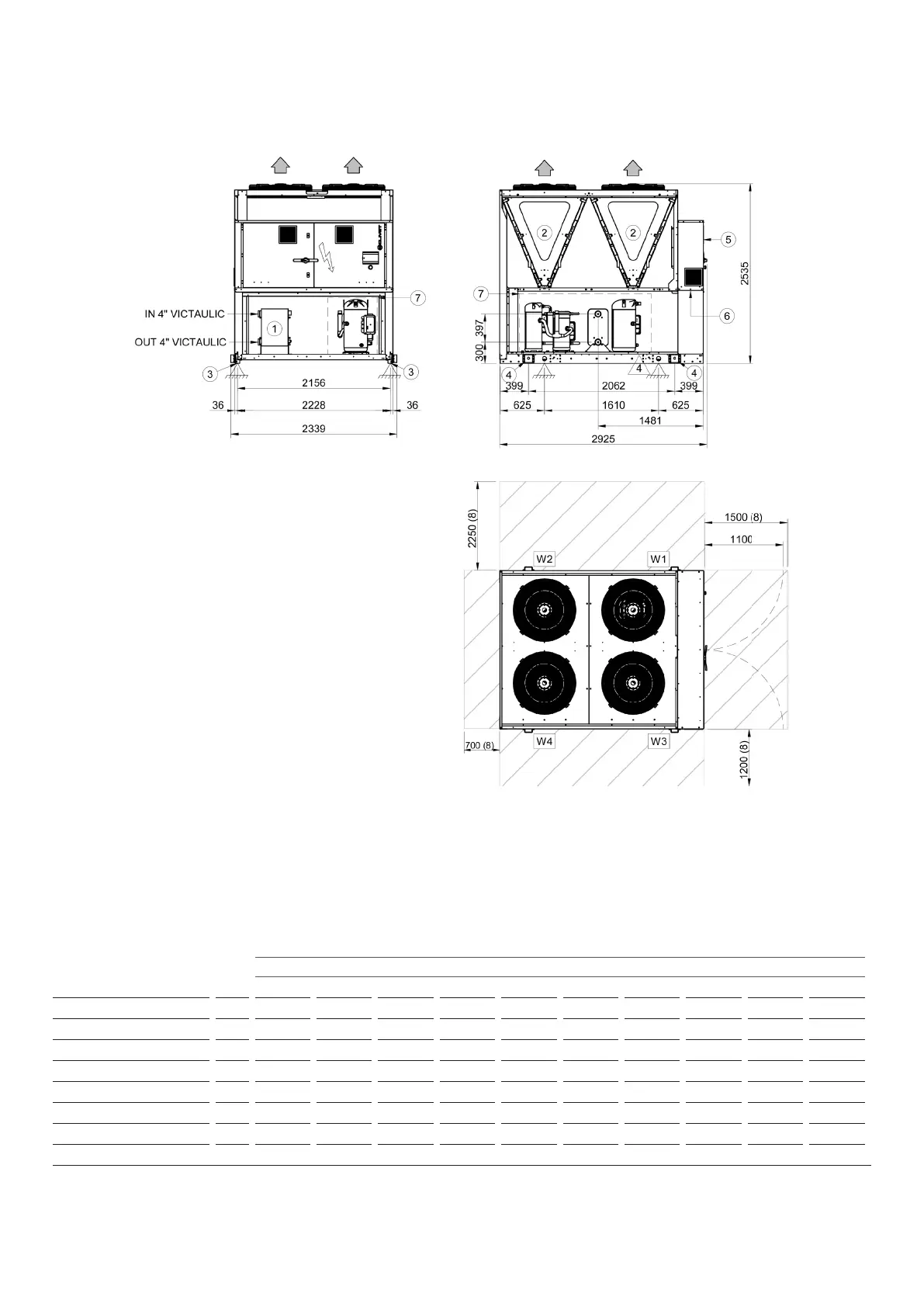

1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit fixing holes
4. Lifting brackets (removable)
5. Electrical panel
6. Power input
7. Sound proof enclosure (optional)
8. Clearance access recommended
SIZE
80.3 EXC 100.4 EXC 90.3 PRM 110.4 PRM 130.4 PRM
ST SC/EN ST SC/EN ST SC/EN ST SC/EN ST SC/EN
Length mm 2925 2925 2925 2925 2925 2925 2925 2925 2925 2925
Depth mm 2228 2228 2228 2228 2228 2228 2228 2228 2228 2228
Height mm 2535 2535 2535 2535 2535 2535 2535 2535 2535 2535
W1 Supporting point kg 450 509 463 522 485 544 504 563 526 585
W2 Supporting point kg 432 494 431 493 406 468 455 517 505 567
W3 Supporting point kg 413 446 423 456 446 479 450 483 458 491
W4 Supporting point kg 395 431 391 427 367 403 401 437 437 473
Operating weight kg 1689 1879 1708 1898 1703 1893 1810 2000 1926 2116
Shipping weight kg 1628 1818 1647 1837 1642 1832 1749 1939 1868 2058
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
