MotorAssemblyELECTRICVEHICLE-MOTOR
758

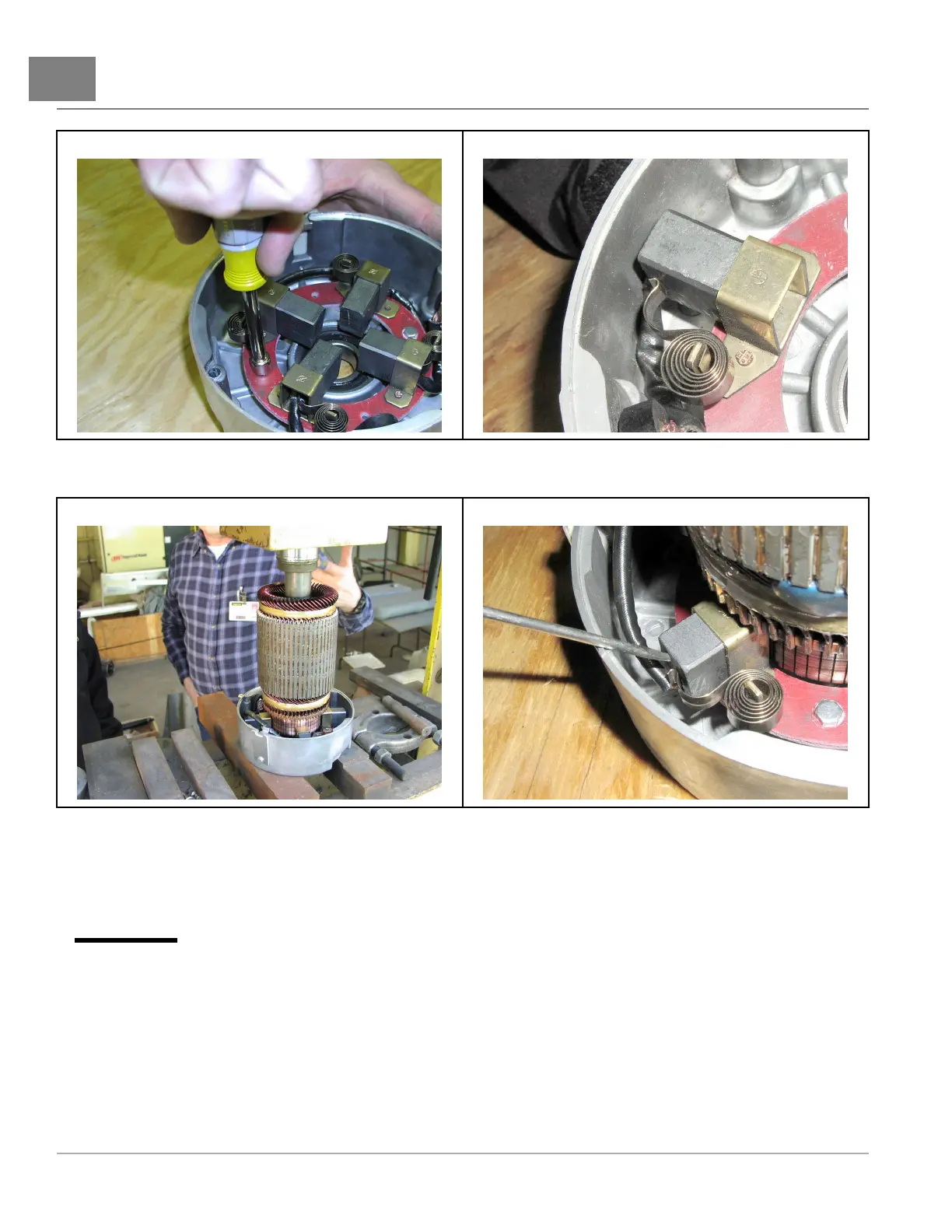

Figure16-16BrushRigging
759
Figure16-17RetractedBrushes
760
Figure16-18ArmatureInstallation
761
Figure16-19BrushSetting
3.Withthebrushesretracted,useanarborpresstopressthearmatureshaftintotheendcapbearing(Figure
16-18,Page16-14).SeefollowingCAUTION.
CAUTION
•Makesurethebrushesareheldback.Donotallowthebrushestosupporttheweightofthe
commutator.Thebrushescanbeeasilydamagedbythisweight.
4.Gentlypresseachbrushwithasmallscrewdriveruntilthespringrestsontheendofeachbrushasshown
(Figure16-19,Page16-14).
5.Alignthematchmarksontheendcapandthemotorframe(1)andsecurewithtwobolts(16)(Figure16-15,
Page16-12).Tightenboltsto130in·lb(14.7N·m).
6.Installthespeedsensormagnet(24)withscrew(23).Tightento65in·lb(7.3N·m).
7.Installthespeedsensor(10)withscrews(25).Tightento20in·lb(2.2N·m).
Page16-142019PrecedentVillager2MaintenanceandServiceManual

Club Car Precedent Villager 2 Specifications

General

Model	Precedent Villager 2
Seating Capacity	2
Power Source	48-volt DC (Electric)
Overall Length	91.5 inches
Ground Clearance	4.5 in (11 cm)
Power Source (Electric)	48-volt DC
Batteries	6 x 8V
Charger	Onboard
Forward Speed (Nominal)	14-19 mph
Steering	Rack and Pinion
Tires	18 x 8.5-8
Overall Width	47 in (119 cm)
Turning Radius	10 ft (305 cm)
