CM LODESTAR - Page 6

6
UNIVERSAL TROLLEY
P/N 33339401 Rev AB August 2018
Each washer/spacer chart shows the available trackwheel ange width setting from minimum to maximum. To center
the hoist under the beam, use the same amount of washers and spacers between the lug adapter and sideplates.
The amount of washers and spacers on the outside of the sideplates does not have to be the same.
Note: For triple-line Man Guard, omit one long spacer per side of the lug adapter.
Example using a UT1 model:
Measure your beam ange width
- 4.94".
In the trackwheel ange width
column, the measured beam size is
between 4.89" and 5.12". Always
use the larger setting – 5.12".
The 5.12" setting requires 1-LS
(long spacer), 1-SS (short spacer)
and 4-W (washers) between the lug
adapter and sideplates.
The total clearance distance will
be 5.12" - 4.94" = 0.18". If the
application requires more clearance,
move to the next larger setting-
5.36".
CAUTION: The installer must
conrm that the trolley will remain
on straight sections of beam at
increased clearance settings.

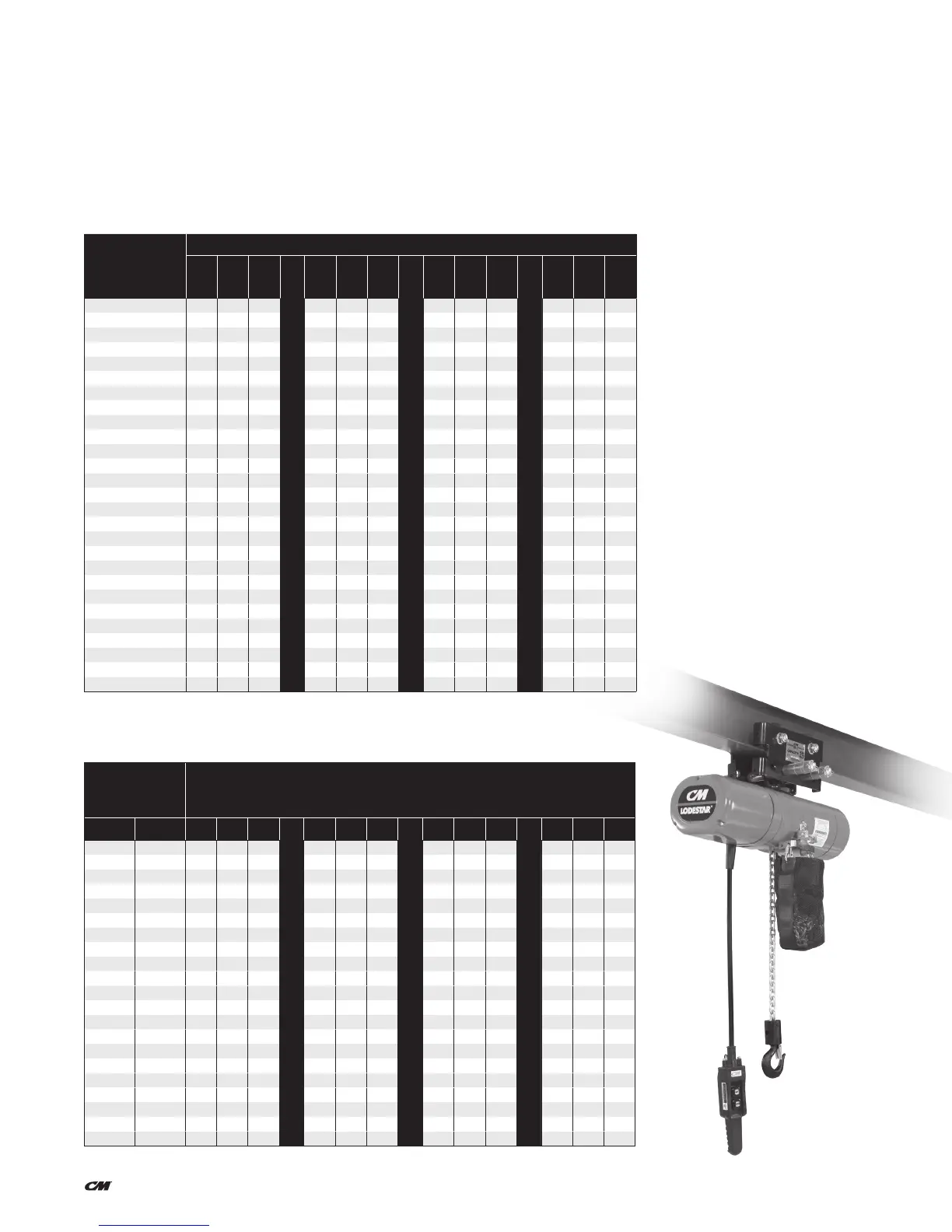

UT WASHER & SPACER PLACEMENT (CONTINUED)
TRACKWHEEL
FLANGE WIDTH
(in.)
NUMBER OF WASHERS & SPACERS
W SS LS
SIDEPLATE
W SS LS
LUG ADAPTER
LS SS W
SIDEPLATE
LS SS W
2.45 7 1 1 0 0 1 1 0 0 1 1 7
2.68 6 1 1 1 0 1 1 0 1 1 1 6
2.92 5 1 1 2 0 1 1 0 2 1 1 5
3.16 4 1 1 3 0 1 1 0 3 1 1 4
3.39 3 1 1 4 0 1 1 0 4 1 1 3
3.63 2 1 1 5 0 1 1 0 5 1 1 2
3.86 1 1 1 6 0 1 1 0 6 1 1 1
4.18 7 0 1 0 1 1 1 1 0 1 0 7
4.42 6 0 1 1 1 1 1 1 1 1 0 6
4.65 5 0 1 2 1 1 1 1 2 1 0 5
4.89 4 0 1 3 1 1 1 1 3 1 0 4
5.12 3 0 1 4 1 1 1 1 4 1 0 3
5.36 2 0 1 5 1 1 1 1 5 1 0 2
5.60 7 1 0 0 0 2 2 0 0 0 1 7
5.83 6 1 0 1 0 2 2 0 1 0 1 6
6.07 5 1 0 2 0 2 2 0 2 0 1 5
6.31 4 1 0 3 0 2 2 0 3 0 1 4
6.54 3 1 0 4 0 2 2 0 4 0 1 3
6.78 2 1 0 5 0 2 2 0 5 0 1 2
7.01 1 1 0 6 0 2 2 0 6 0 1 1
7.33 7 0 0 0 1 2 2 1 0 0 0 7
7.57 6 0 0 1 1 2 2 1 1 0 0 6
7.80 5 0 0 2 1 2 2 1 2 0 0 5
8.04 4 0 0 3 1 2 2 1 3 0 0 4
8.27 3 0 0 4 1 2 2 1 4 0 0 3
8.51 2 0 0 5 1 2 2 1 5 0 0 2
8.75 1 0 0 6 1 2 2 1 6 0 0 1
UT1 MODEL
TRACKWHEEL
FLANGE WIDTH
(in.)
NUMBER OF WASHERS & SPACERS
UT2 UT3 W SS LS
SIDEPLATE
W SS LS
LUG ADAPTER
LS SS W
SIDEPLATE
LS SS W
2.45 2.46 6 1 1 0 0 1 1 0 0 1 1 6
2.76 2.78 5 1 1 1 0 1 1 0 1 1 1 5
3.08 3.09 4 1 1 2 0 1 1 0 2 1 1 4
3.39 3.41 3 1 1 3 0 1 1 0 3 1 1 3
3.71 3.72 2 1 1 4 0 1 1 0 4 1 1 2
4.02 4.04 6 0 1 0 1 1 1 1 0 1 0 6
4.34 4.35 5 0 1 1 1 1 1 1 1 1 0 5
4.65 4.67 4 0 1 2 1 1 1 1 2 1 0 4
4.97 4.98 3 0 1 3 1 1 1 1 3 1 0 3
5.28 5.30 2 0 1 4 1 1 1 1 4 1 0 2
5.60 5.61 6 1 0 0 0 2 2 0 0 0 1 6
5.91 5.93 5 1 0 1 0 2 2 0 1 0 1 5
6.23 6.24 4 1 0 2 0 2 2 0 2 0 1 4
6.54 6.56 3 1 0 3 0 2 2 0 3 0 1 3
6.86 6.87 2 1 0 4 0 2 2 0 4 0 1 2
7.17 7.19 6 0 0 0 1 2 2 1 0 0 0 6
7.49 7.50 5 0 0 1 1 2 2 1 1 0 0 5
7.80 7.82 4 0 0 2 1 2 2 1 2 0 0 4
8.12 8.13 3 0 0 3 1 2 2 1 3 0 0 3
8.43 8.45 2 0 0 4 1 2 2 1 4 0 0 2
8.75 8.76 1 0 0 5 1 2 2 1 5 0 0 1
UT2 & UT3 MODELS
