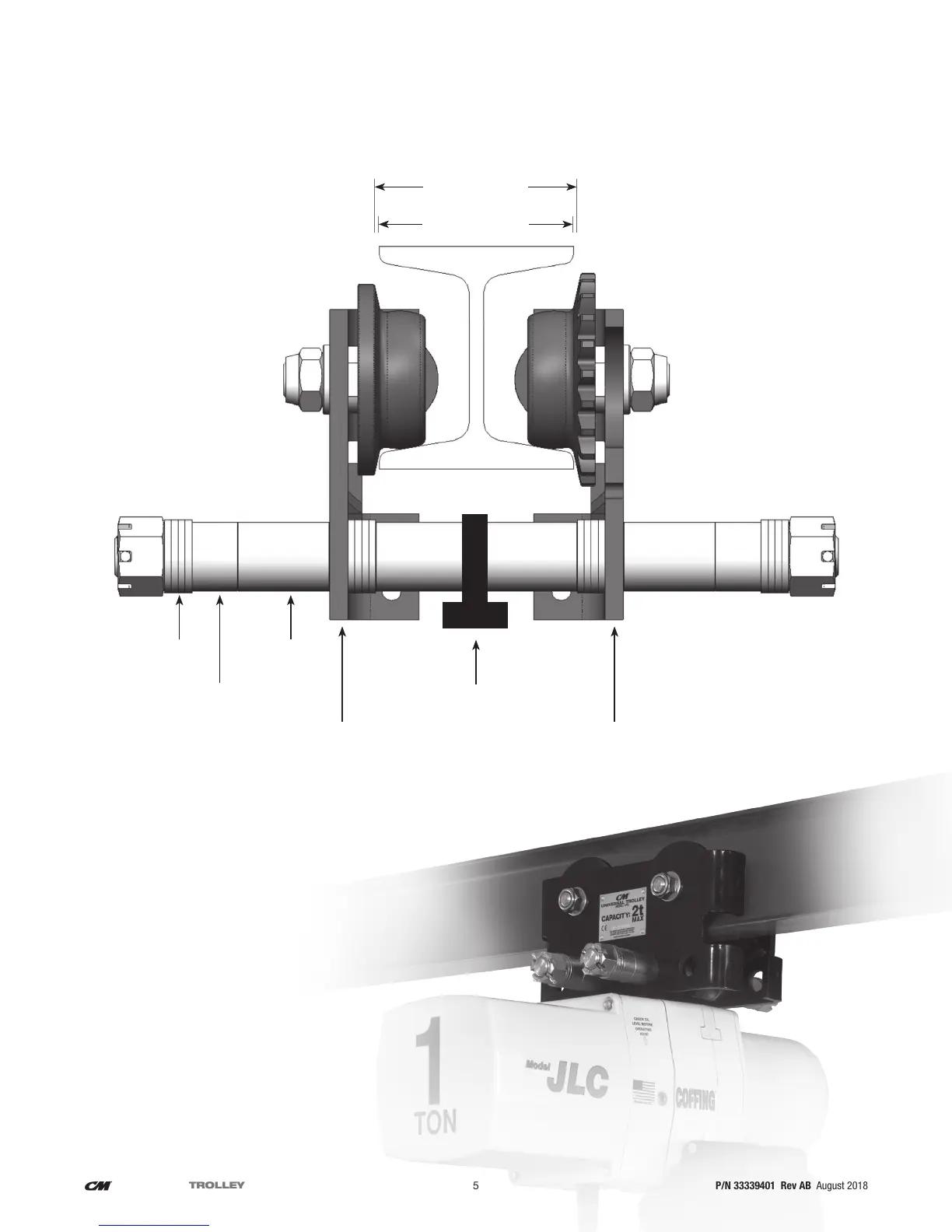

UT WASHER & SPACER PLACEMENT
WASHER
(W)
LONG SPACER
(LS)
LUG ADAPTER
SHORT SPACER
(SS)
Due to the variations in beam ange widths,
it is suggested that the beam ange width be
measured to determine the exact distribution
of washers and spacers. The distance
between trackwheel anges should be 1/8 to
3/16 inch greater than the beam ange width
for straight runway beams and 3/16 to 1/4 inch
greater than the beam ange width if runway
system includes sharp curves. Also, the use of
other than CM supplied washers and spacers
may result in trackwheel to beam ange
variations and thus the recommendations in
the following tables will not apply.
BEAM
FLANGE WIDTH
TRACKWHEEL
FLANGE WIDTH
SIDEPLATE SIDEPLATE
