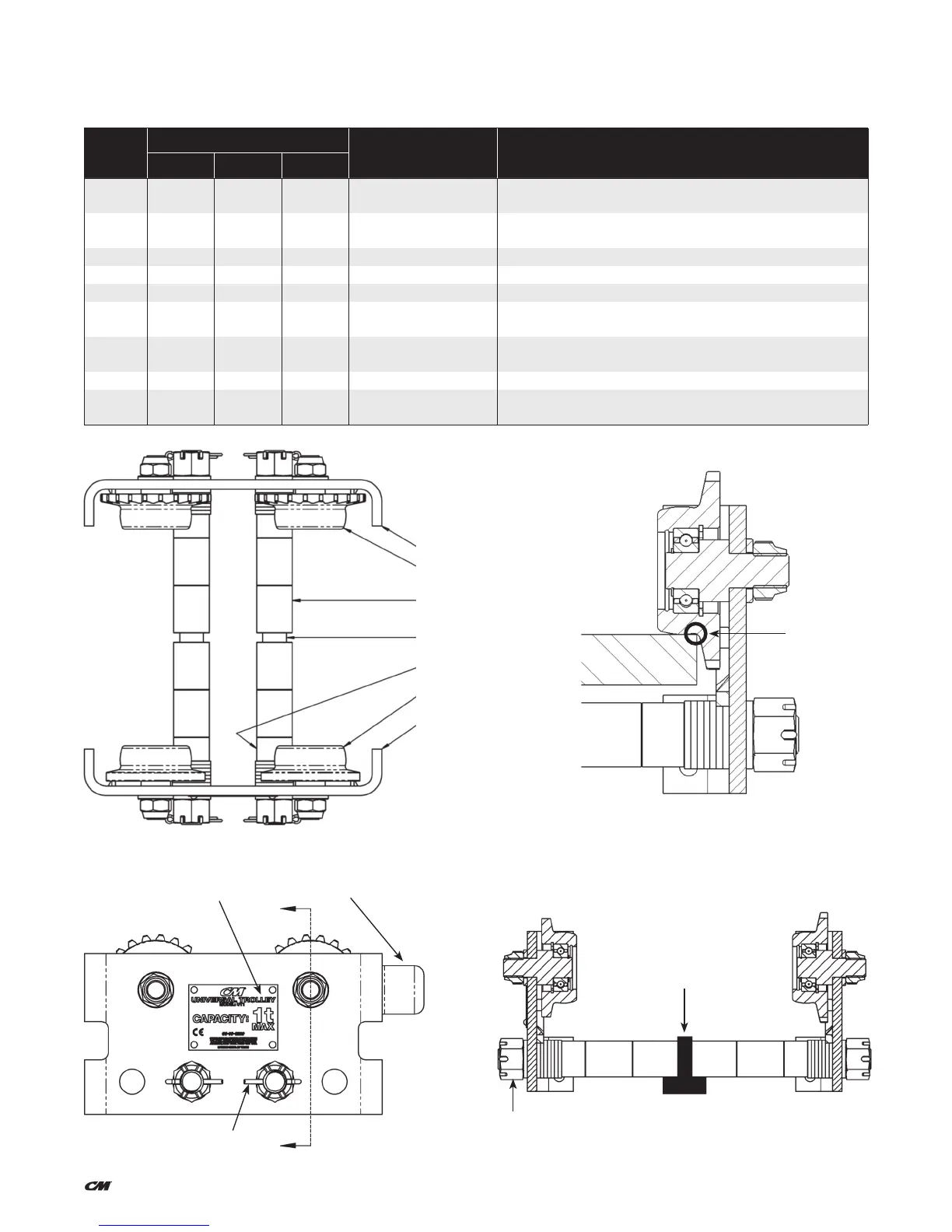

CM LODESTAR - UT Parts List

8
UNIVERSAL TROLLEY
P/N 33339401 Rev AB August 2018
UT PARTS LIST
ITEM
NUMBER
PART NUMBER
DESCRIPTION KIT CONTENTS
UT1 UT2 UT3
1
11843108 23554608 33336308 SIDEPLATE KIT, GEARED
2 - geared wheels, 1 - geared sideplate, 2 (UT1 & UT2) or 4 (UT3) - bearings,
4 - retaining rings, 2 - axles, 2 - nuts and 2 - washers
2
0508211A 0508212A 0508213A WHEEL ASSEMBLY, GEARED
1 - geared wheel, 2 - retaining rings, 1 (UT1 & UT2) or 2 (UT3) - bearings,
1 - axle, 1 - washer and 1 - nut
3
11842001 11842003 11842007 SPACER KIT, LONG 8 - long spacers
4
11843101 23554601 33336301 SUSPENSION PIN KIT 2 - suspension pins
5
11842002 11842004 11842008 SPACER KIT, SHORT 4 - short spacers
6
0508207A 0508208A 0508209A WHEEL ASSEMBLY, PLAIN
1 - plain wheel, 2 - retaining rings, 1 (UT1 & UT2) or 2 (UT3) - bearings,
1 - axle, 1 - washer and 1 - nut
7
11843107 23554607 33336307 SIDEPLATE KIT, PLAIN
2 - plain wheels, 1 - plain sideplate, 2 (UT1 & UT2) or 4 (UT3) - bearings,
4 - retaining rings, 2 - axles, 2 - nuts and 2 - washers
8
11843102 23554602 33336302 NAMEPLATE KIT 1 - nameplate and 4 - drive screws
9
11843104 23554604 33336304 HARDWARE KIT
28 (UT1) or 24 (UT2 & UT3) - suspension pin washers,
4 - slotted nuts and 4 - cotter pins
1
2
3
4
5
6
7
BEAM
1/16"
8
9
Optional rubber bumper shown
Kit Number: 33337905
9
See page 3 for hoist
top suspension kit
