CM LODESTAR - UTG Geared Hand Drive Installation

7
UNIVERSAL TROLLEY
P/N 33339401 Rev AB August 2018
UTG GEARED HAND DRIVE IN-
STALLATION
The CM Universal Trolley is available in both plain and geared trolley
models. The CM UT is designed to be easily converted from plain to
geared in the eld. Simply attach the appropriate geared hand drive
assembly to the geared sideplate as shown.
Note: All hoists, except Shopstar / Shopair / SLC / SLA / SLM / Shophoist / Series 600, are to be parallel mounted when
using geared hand drive assembly.
UNIVERSAL TROLLEY
GEARED HAND DRIVE
ASSEMBLY
GEARED HAND DRIVE
ASSEMBLY
INSTRUCTIONS:

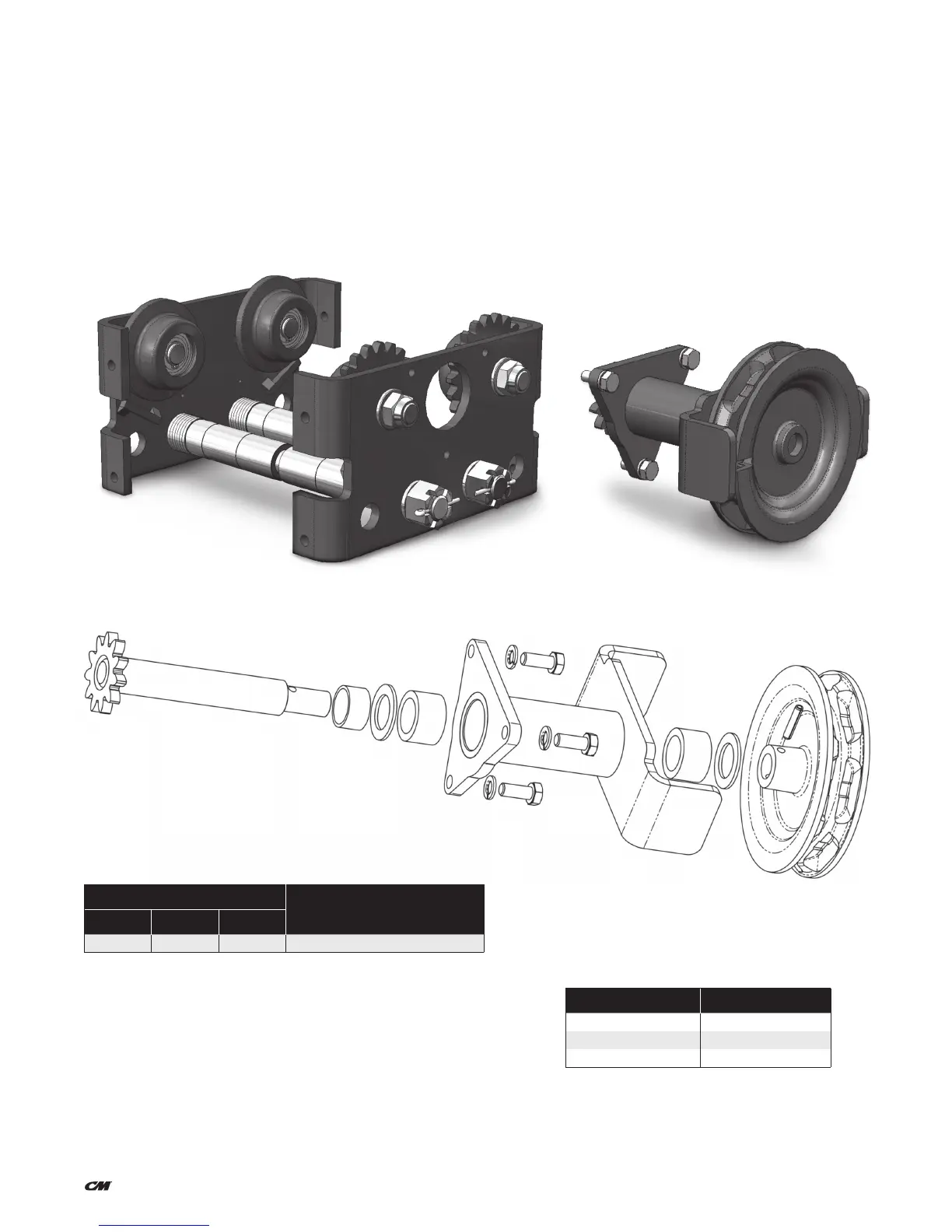

1) Position hand drive assembly onto trolley as shown
2) Install (3) lock washers and (3) hex bolts
3) Tighten each hex bolt to 19-24 Nm [14-18 ft./lb.]
For UT1G & UT2G, use Geared Hand Drive Assembly 11843110
For UT3G, use Geared Hand Drive Assembly 33336310
For Motorized Universal Trolley, contact factory
KIT PART NUMBER
DESCRIPTION
UT1 UT2 UT3
11843110 11843110 33336310 GEARED HAND DRIVE ASSEMBLY
* Hand chain and connector link are included with this kit (not shown).
Hand chain part number: 04307654.
Connecting link part number: 00404733.
GEARED HAND DRIVE ASSEMBLY KITS*
KIT PART NUMBER DESCRIPTION
51703230 for 30 ft. lift hoist
51703240 for 40 ft. lift hoist
51703250 for 50 ft. lift hoist
CHAIN EXTENSION KITS**
** This kit extends the standard hand chain furnished
with trolley, which is in proportion to a 20' lift hoist.
