CMC ARIZONA VORTEX KIT - LEGS TO HEADS ASSEMBLY; Connecting Outer Legs to Heads; Connecting Inner Legs to Heads

ASSEMBLY
LEGS TO HEADS
This is the last hole >>>

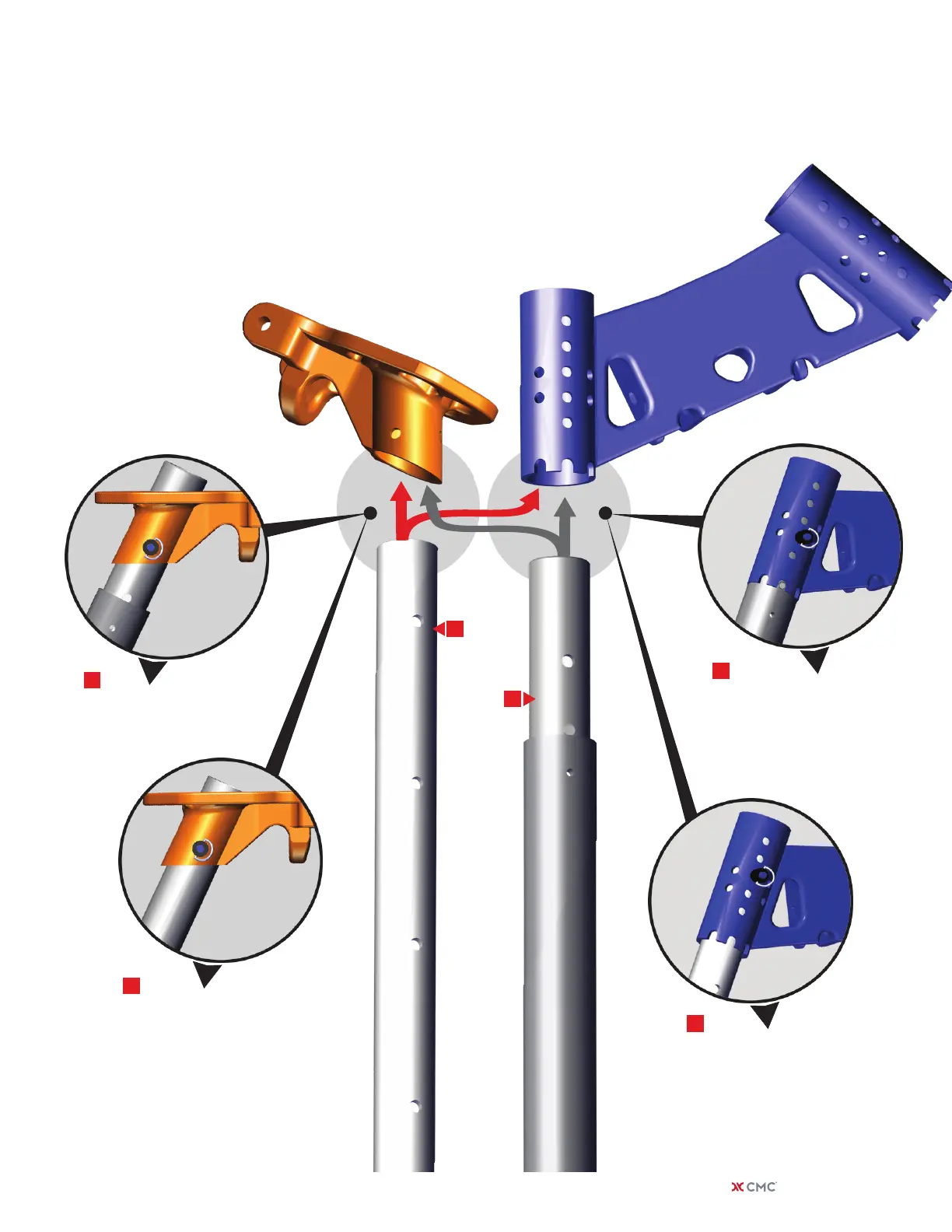

The Vortex utilizes two types of legs: Inner Legs and
Outer Legs. Both the Inner and Outer Leg types can be
connected to the A-Frame and Gin Pole Head sections.
The A-Frame Head section has multiple options for the
connecting ball-lock pin. This enables minor adjust-
ments to leg length and rotational orientation.
Inner Leg shown connected
to the A-Frame Head.
Outer Leg shown connected
to A-Frame Head. Note
placement of alignment stud
in one of three possible
positions.
Outer Leg shown
attached to Gin Pole Head.
Inner Leg shown attached
to Gin Pole Head.
INNER Leg
A
OUTER Leg
B
E
F
C
D
