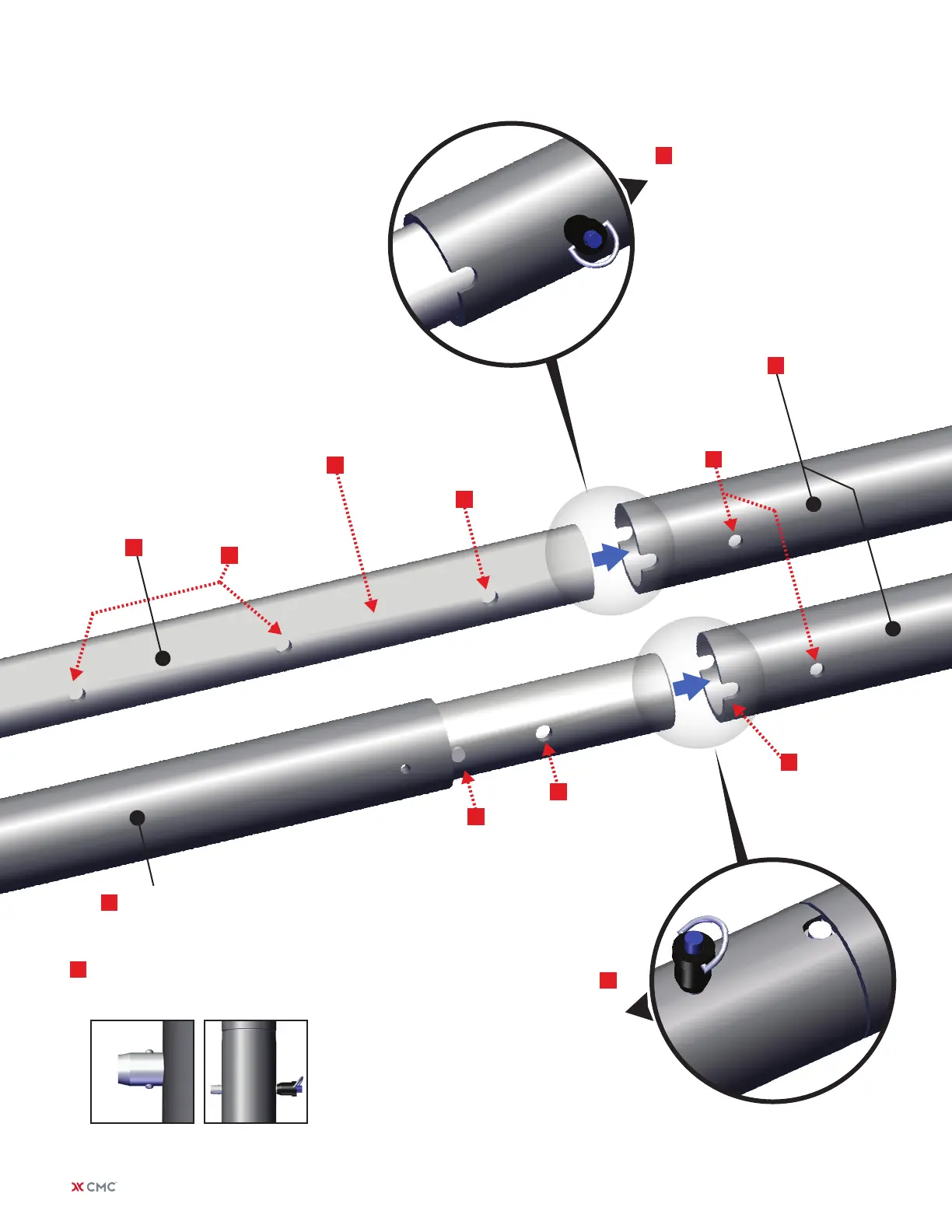

DETAIL VIEW
VORTEX LEGS
Correct Pin Placement:
Pin balls should extend outside the
wall of the leg, securing pin in place.
ALIGNMENT
STUD
3/8” PIN
HOLE
Two Outer Legs are correctly
connected when the alignment
stud ts properly into the slot on
the other Outer Leg with the
ball-lock pin inserted as shown.
ALIGNMENT
SLOT
3/8” PIN HOLE
3/8” ADJUSTMENT
HOLES
LAST HOLE
WARNING
INNER LEG
OUTER LEG
An Outer and Inner Leg are
correctly assembled when the
Leg Pin joins the Inner Leg at the
end of the Outer Leg as shown.
OUTER LEG
This is the last hole >>>
C
B
A
D
G
H
I
B
J
K
E
D
F
The Inner and Outer Legs are both CNC
milled to obtain precise inner and outer
dimensions. The result is legs and
couplers that t with the proper
tolerance, every time.
| ARIZONA VORTEX KIT USER MANUAL12
