MAN. 126 rev.4 Use and maintenance manual S19
18 of 77
3.3
Stabilization station

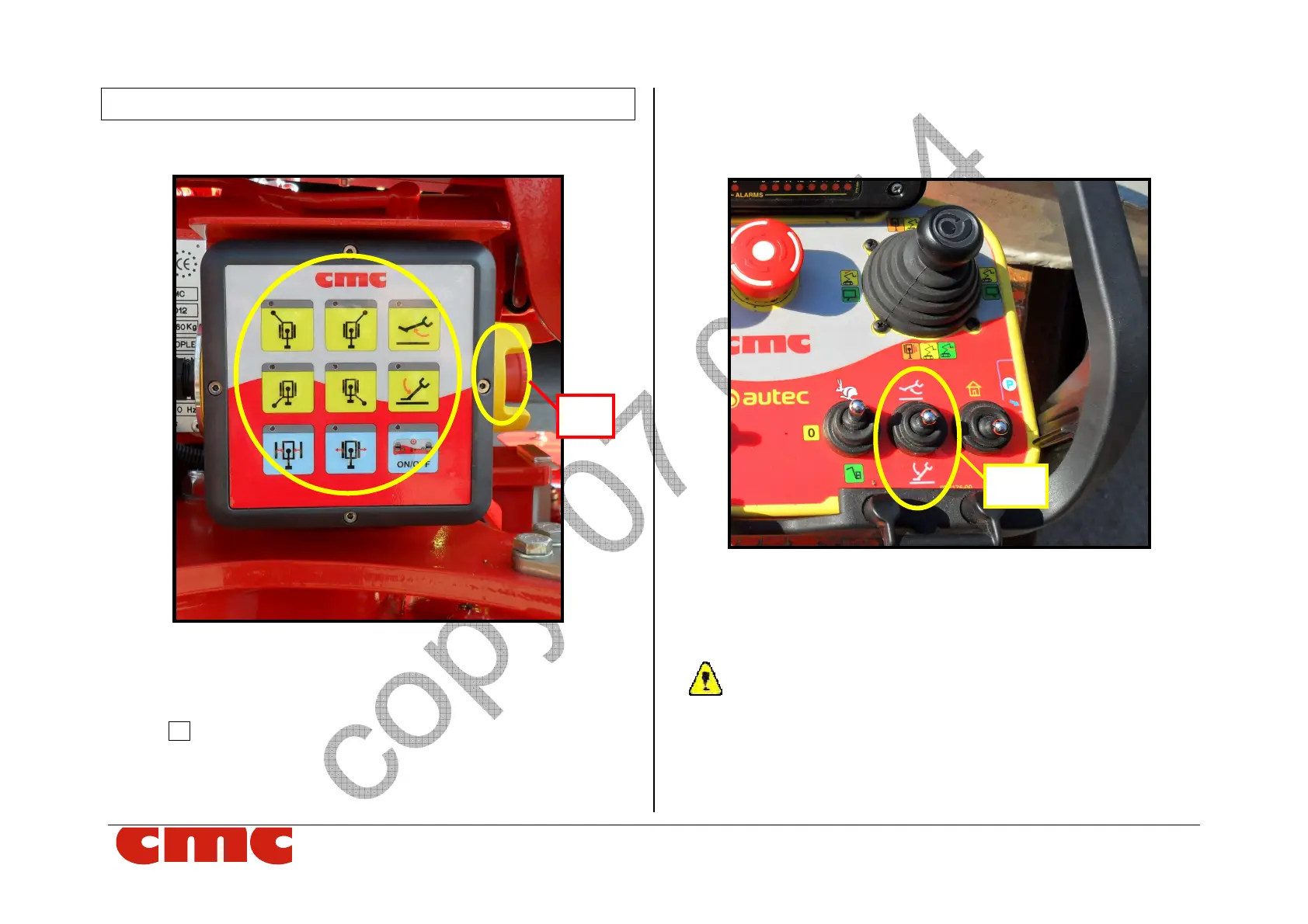

Picture 11: stabilization type selector
Through this station it is possible to perform stabilization/destabilization of
the Sup24, widen/narrow the crawlers and enable/disable the use of the
radio control. Furthermore, there i san emergency button, mushroom-
shape TE (Picture 11) that blocks the machine unfeeding the control
circuits; the machine has a mechanical blocking device, therefore, to reset
its operability, it is necessary to unblock the button turning it clockwise.
This button has the priority on any other control; it is only allowed to
manually descend on the ground..
Picture 12: automatic stabilization control station (radiocontrol)
Through the radio control it is possible to carry out the automatic
stabilization/destabilization through the SSA selector.
The radiocontrol on the side has a green “link” (small key)
which starts the connection between the receiver and the radio and
activates the emergencies once the machine is electrically fed.
TE
SSA
