MAN. 126 rev.4 Use and maintenance manual S19

39 of 77

In case of emergency due to an electrical system failure (cable shearing

etc.) to get the pressure inside the hydraulic circuit, necessary for the

functioning of the platform components, it is possible to use the operations

distributor DM.

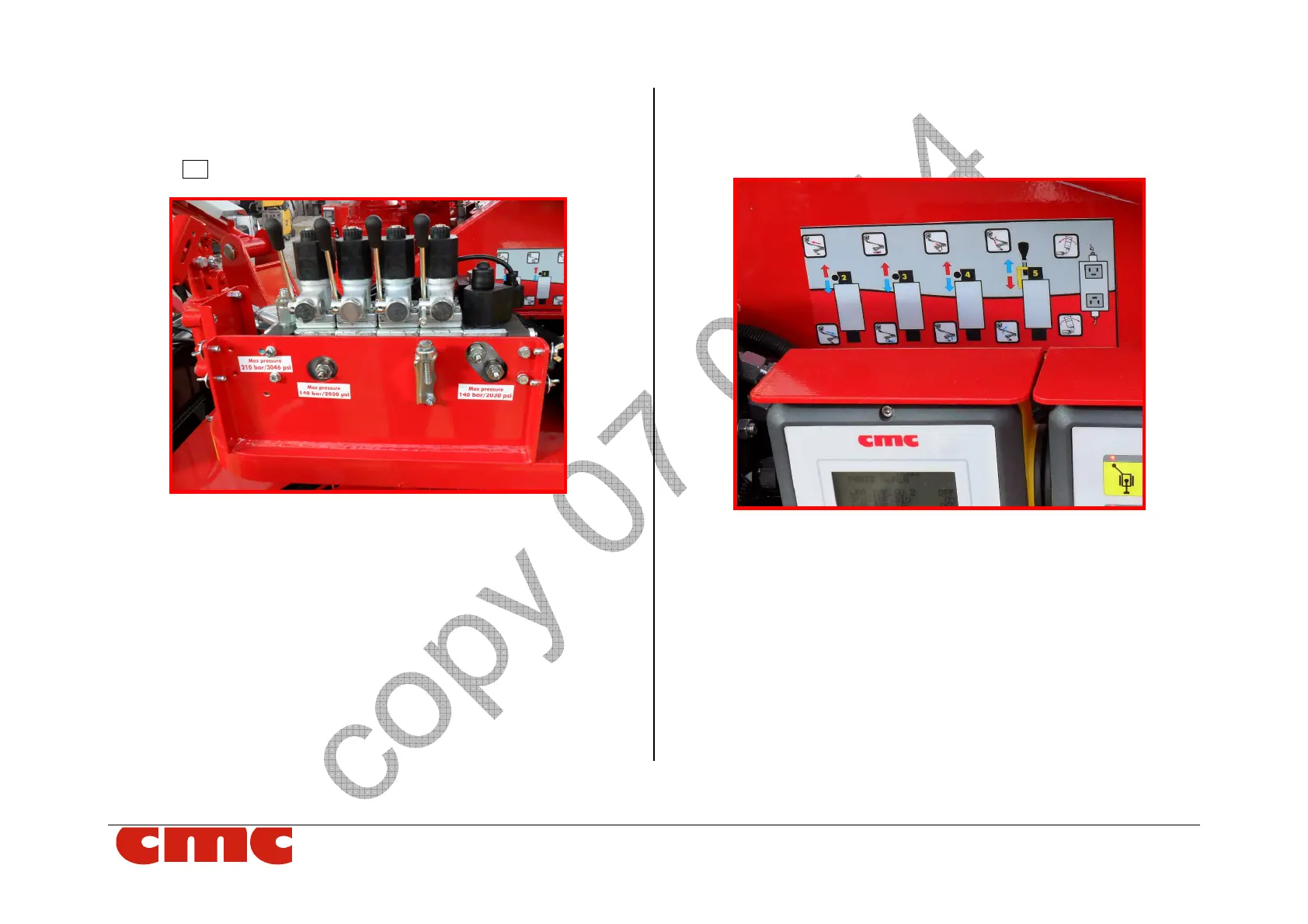

Picture 32 - DM Distributor

Then, operate according to the procedure:

1. stall the engine;

2. individuare the emergency label (Picture 33);

Picture 33 – protection carter and internal label
