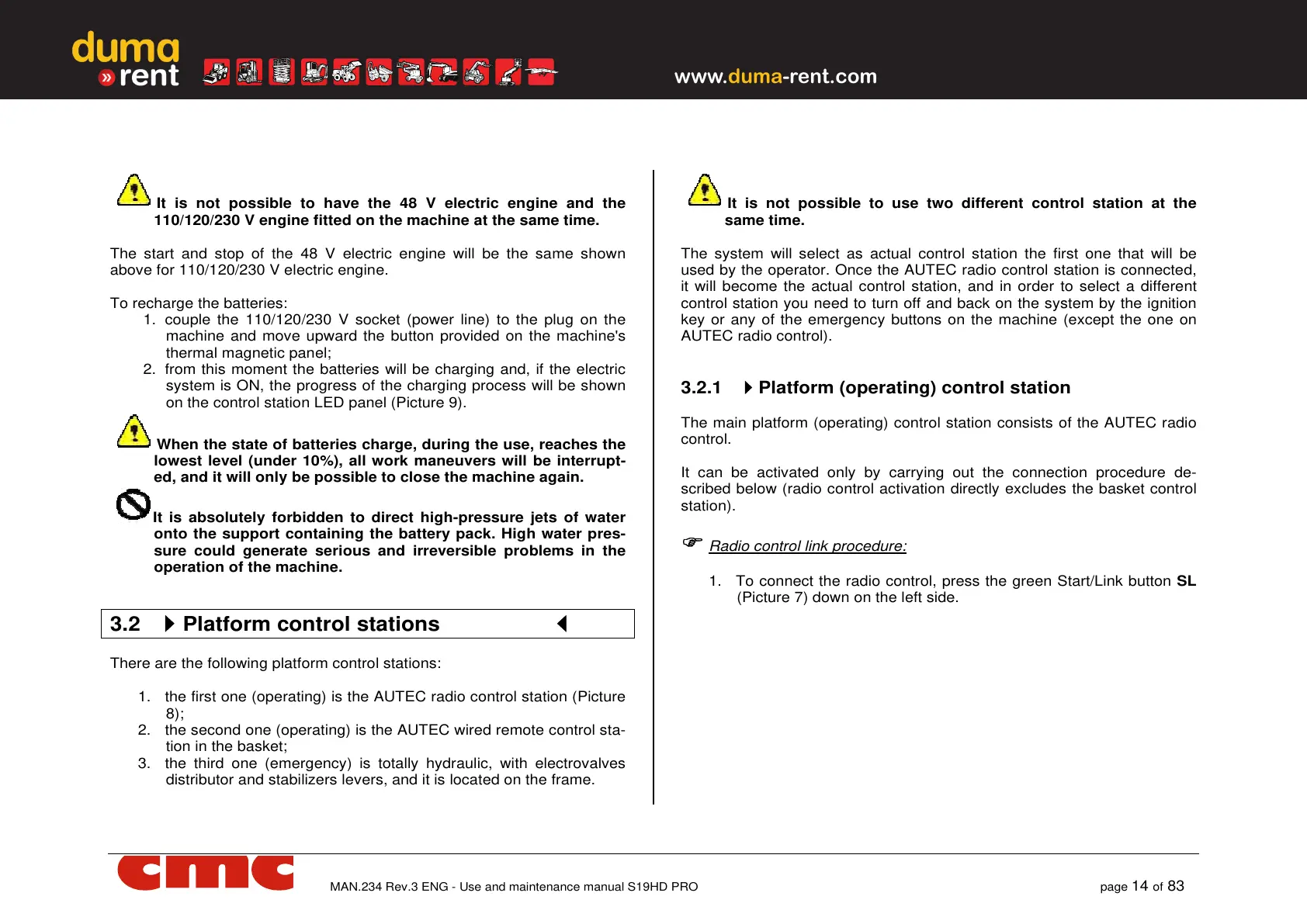

It is not possible to have the 48 V electric engine and the
110/120/230 V engine fitted on the machine at the same time.
The start and stop of the 48 V electric engine will be the same shown
above for 110/120/230 V electric engine.
To recharge the batteries:
1. couple the 110/120/230 V socket (power line) to the plug on the
machine and move upward the button provided on the machine's
thermal magnetic panel;
2. from this moment the batteries will be charging and, if the electric
system is ON, the progress of the charging process will be shown
on the control station LED panel (Picture 9).
When the state of batteries charge, during the use, reaches the
lowest level (under 10%), all work maneuvers will be interrupt-
ed, and it will only be possible to close the machine again.
It is absolutely forbidden to direct high-pressure jets of water
onto the support containing the battery pack. High water pres-
sure could generate serious and irreversible problems in the
operation of the machine.
3.2
Platform control stations
There are the following platform control stations:
1. the first one (operating) is the AUTEC radio control station (Picture
8);
2. the second one (operating) is the AUTEC wired remote control sta-
tion in the basket;
3. the third one (emergency) is totally hydraulic, with electrovalves
distributor and stabilizers levers, and it is located on the frame.
It is not possible to use two different control station at the
same time.
The system will select as actual control station the first one that will be
used by the operator. Once the AUTEC radio control station is connected,
it will become the actual control station, and in order to select a different
control station you need to turn off and back on the system by the ignition
key or any of the emergency buttons on the machine (except the one on
AUTEC radio control).
3.2.1
Platform (operating) control station
The main platform (operating) control station consists of the AUTEC radio
control.
It can be activated only by carrying out the connection procedure de-
scribed below (radio control activation directly excludes the basket control
station).
Radio control link procedure:
1. To connect the radio control, press the green Start/Link button SL
(Picture 7) down on the left side.
