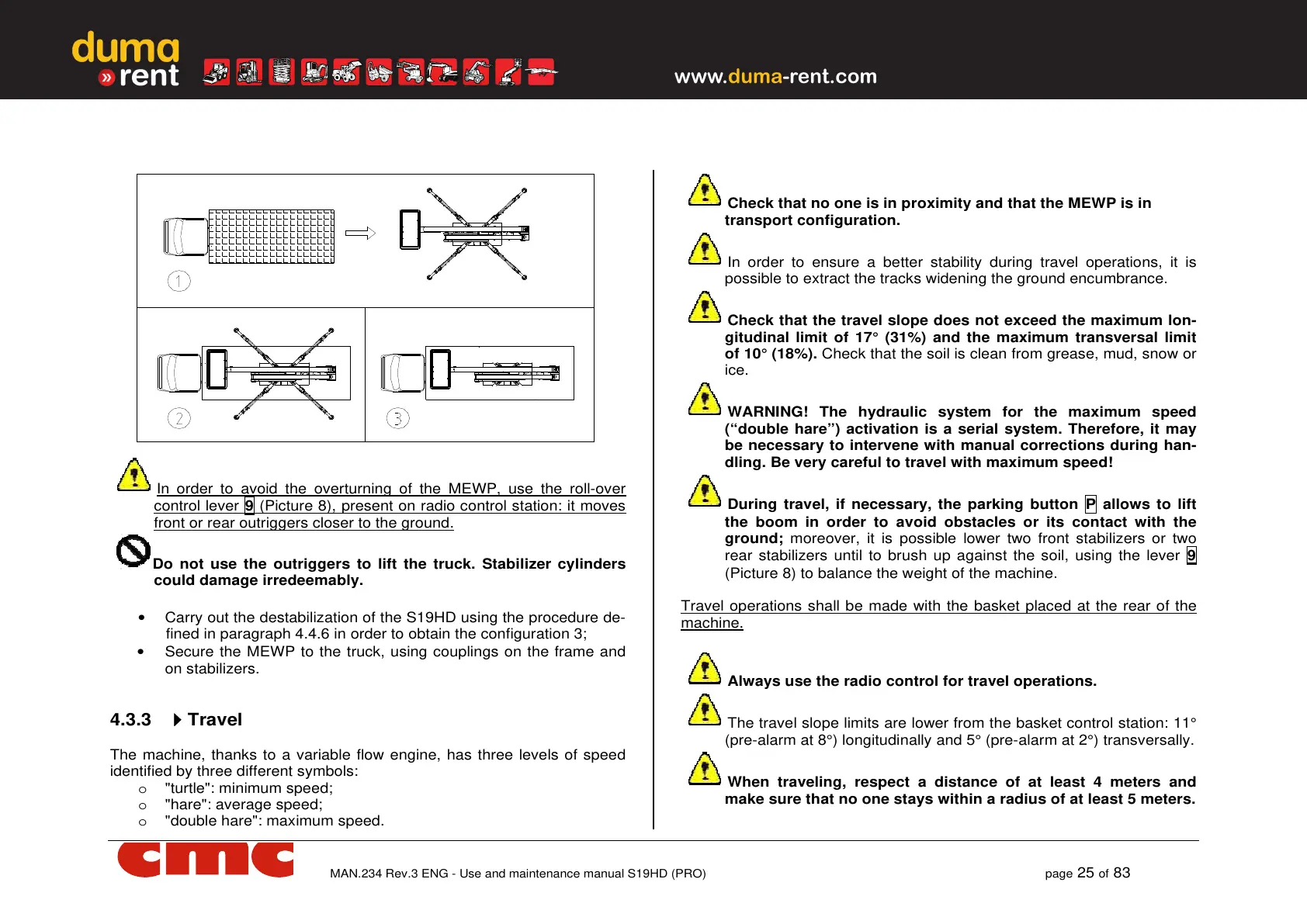

MAN.234 Rev.3 ENG - Use and maintenance manual S19HD (PRO) page
25
of
83
In order to avoid the overturning of the MEWP, use the roll-over
control lever 9 (Picture 8), present on radio control station: it moves
front or rear outriggers closer to the ground.
Do not use the outriggers to lift the truck. Stabilizer cylinders
could damage irredeemably.
• Carry out the destabilization of the S19HD using the procedure de-
fined in paragraph 4.4.6 in order to obtain the configuration 3;
• Secure the MEWP to the truck, using couplings on the frame and
on stabilizers.
4.3.3
Travel
The machine, thanks to a variable flow engine, has three levels of speed
identified by three different symbols:
o "turtle": minimum speed;
o "hare": average speed;
o "double hare": maximum speed.
Check that no one is in proximity and that the MEWP is in
transport configuration.
In order to ensure a better stability during travel operations, it is
possible to extract the tracks widening the ground encumbrance.
Check that the travel slope does not exceed the maximum lon-
gitudinal limit of 17° (31%) and the maximum transversal limit
of 10° (18%). Check that the soil is clean from grease, mud, snow or
ice.
WARNING! The hydraulic system for the maximum speed
(“double hare”) activation is a serial system. Therefore, it may
be necessary to intervene with manual corrections during han-
dling. Be very careful to travel with maximum speed!
During travel, if necessary, the parking button P allows to lift
the boom in order to avoid obstacles or its contact with the
ground; moreover, it is possible lower two front stabilizers or two
rear stabilizers until to brush up against the soil, using the lever 9
(Picture 8) to balance the weight of the machine.
Travel operations shall be made with the basket placed at the rear of the
machine.
Always use the radio control for travel operations.
The travel slope limits are lower from the basket control station: 11°
(pre-alarm at 8°) longitudinally and 5° (pre-alarm at 2°) transversally.
When traveling, respect a distance of at least 4 meters and
make sure that no one stays within a radius of at least 5 meters.
