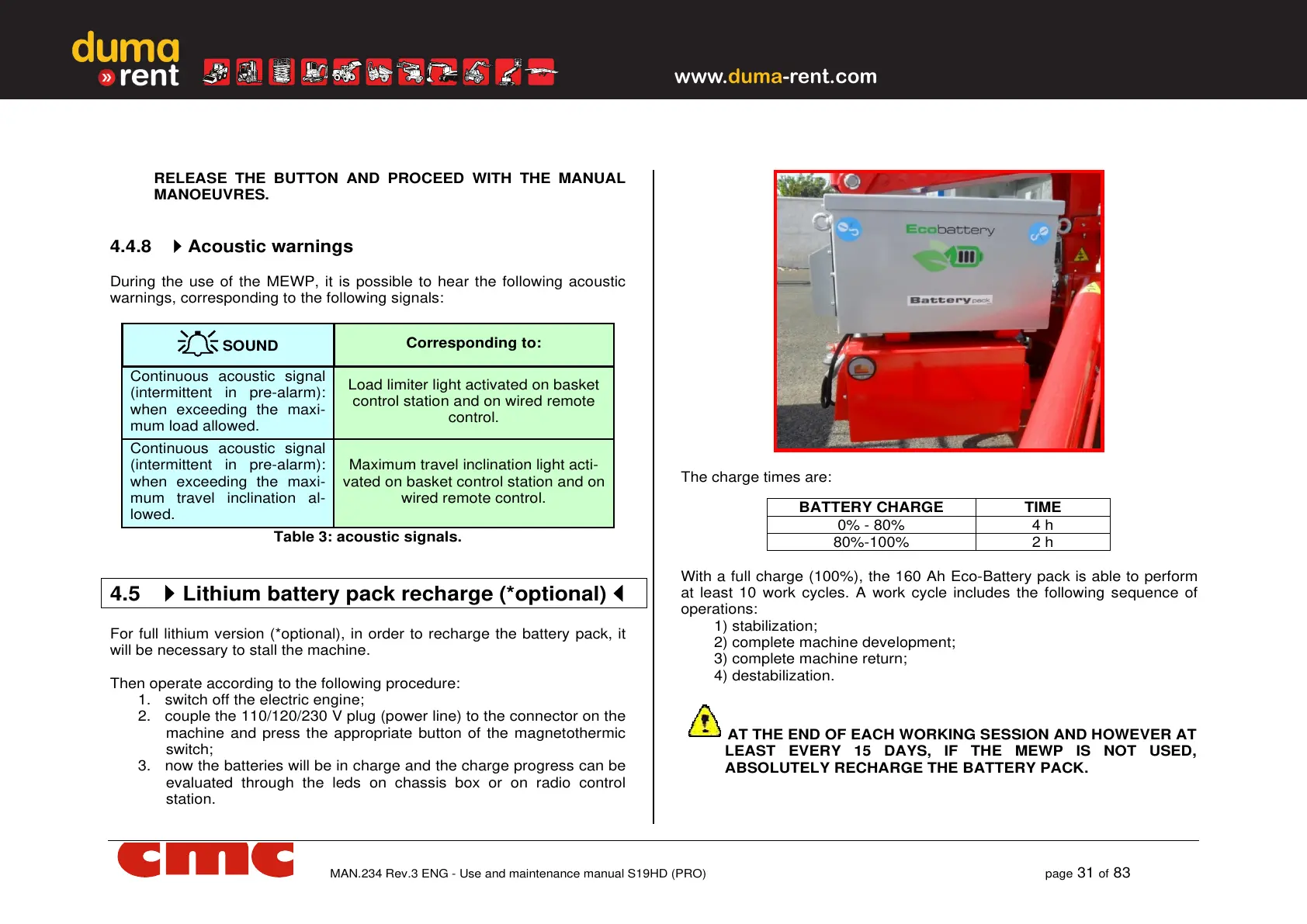

MAN.234 Rev.3 ENG - Use and maintenance manual S19HD (PRO) page
31
of
83
RELEASE THE BUTTON AND PROCEED WITH THE MANUAL
MANOEUVRES.
4.4.8

Acoustic warnings
During the use of the MEWP, it is possible to hear the following acoustic
warnings, corresponding to the following signals:
Ö
SOUND
Corresponding to:
Continuous acoustic signal
(intermittent in pre-alarm):
when exceeding the maxi-
mum load allowed.
Load limiter light activated on basket
control station and on wired remote
control.
Continuous acoustic signal
(intermittent in pre-alarm):
when exceeding the maxi-
mum travel inclination al-
lowed.
Maximum travel inclination light acti-
vated on basket control station and on
wired remote control.
Table 3: acoustic signals.
4.5

Lithium battery pack recharge (*optional)

For full lithium version (*optional), in order to recharge the battery pack, it
will be necessary to stall the machine.
Then operate according to the following procedure:
1. switch off the electric engine;
2. couple the 110/120/230 V plug (power line) to the connector on the
machine and press the appropriate button of the magnetothermic
switch;
3. now the batteries will be in charge and the charge progress can be
evaluated through the leds on chassis box or on radio control
station.
The charge times are:
0% - 80% 4 h
80%-100% 2 h
With a full charge (100%), the 160 Ah Eco-Battery pack is able to perform
at least 10 work cycles. A work cycle includes the following sequence of
operations:
1) stabilization;
2) complete machine development;
3) complete machine return;
4) destabilization.
AT THE END OF EACH WORKING SESSION AND HOWEVER AT
LEAST EVERY 15 DAYS, IF THE MEWP IS NOT USED,
ABSOLUTELY RECHARGE THE BATTERY PACK.
