MAN.234 Rev.3 ENG - Use and maintenance manual S19HD (PRO) page
36
of
83

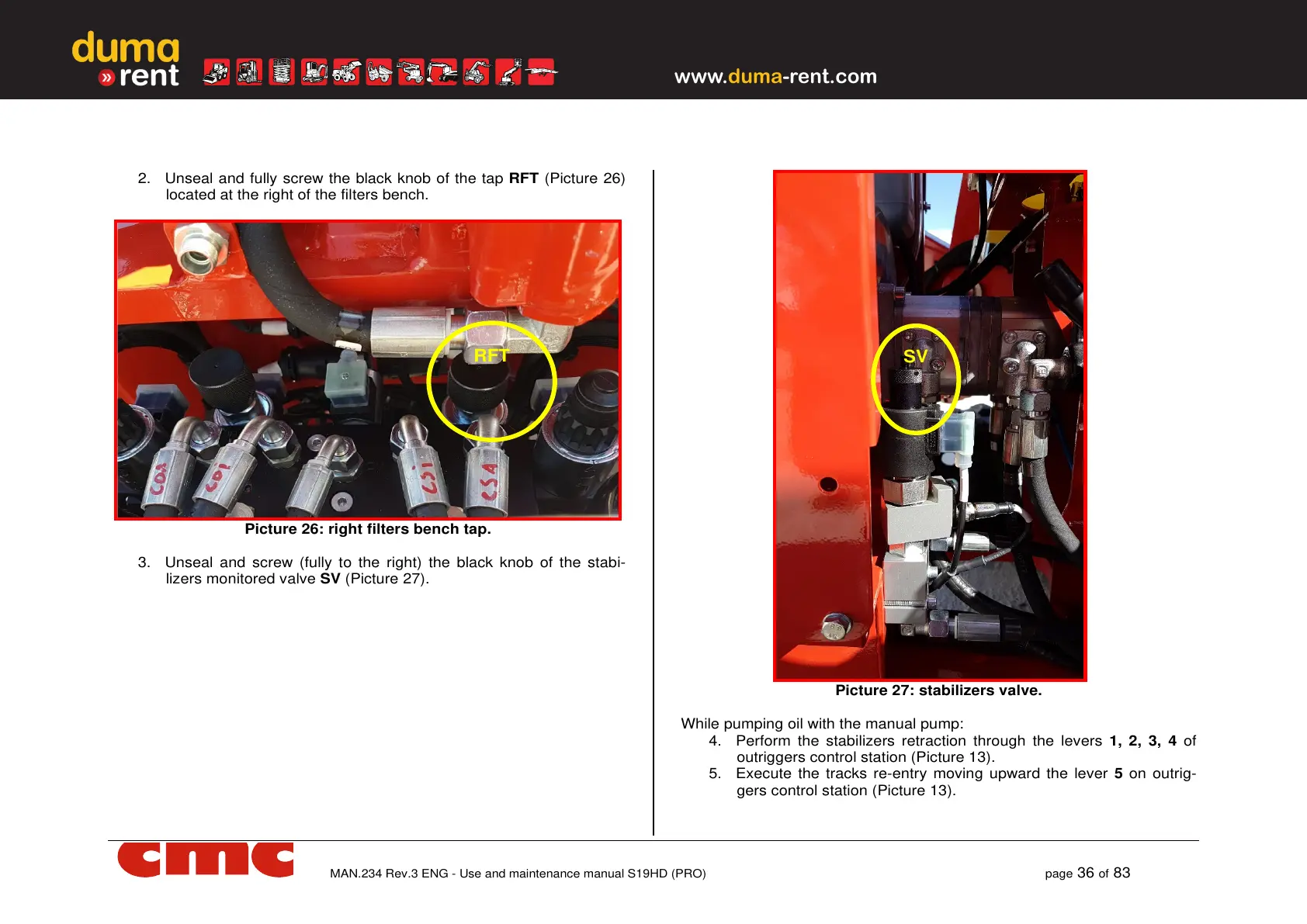

2. Unseal and fully screw the black knob of the tap RFT (Picture 26)
located at the right of the filters bench.
Picture 26: right filters bench tap.
3. Unseal and screw (fully to the right) the black knob of the stabi-
lizers monitored valve SV (Picture 27).
Picture 27: stabilizers valve.
While pumping oil with the manual pump:
4. Perform the stabilizers retraction through the levers 1, 2, 3, 4 of
outriggers control station (Picture 13).
5. Execute the tracks re-entry moving upward the lever 5 on outrig-
gers control station (Picture 13).
RFT
SV
