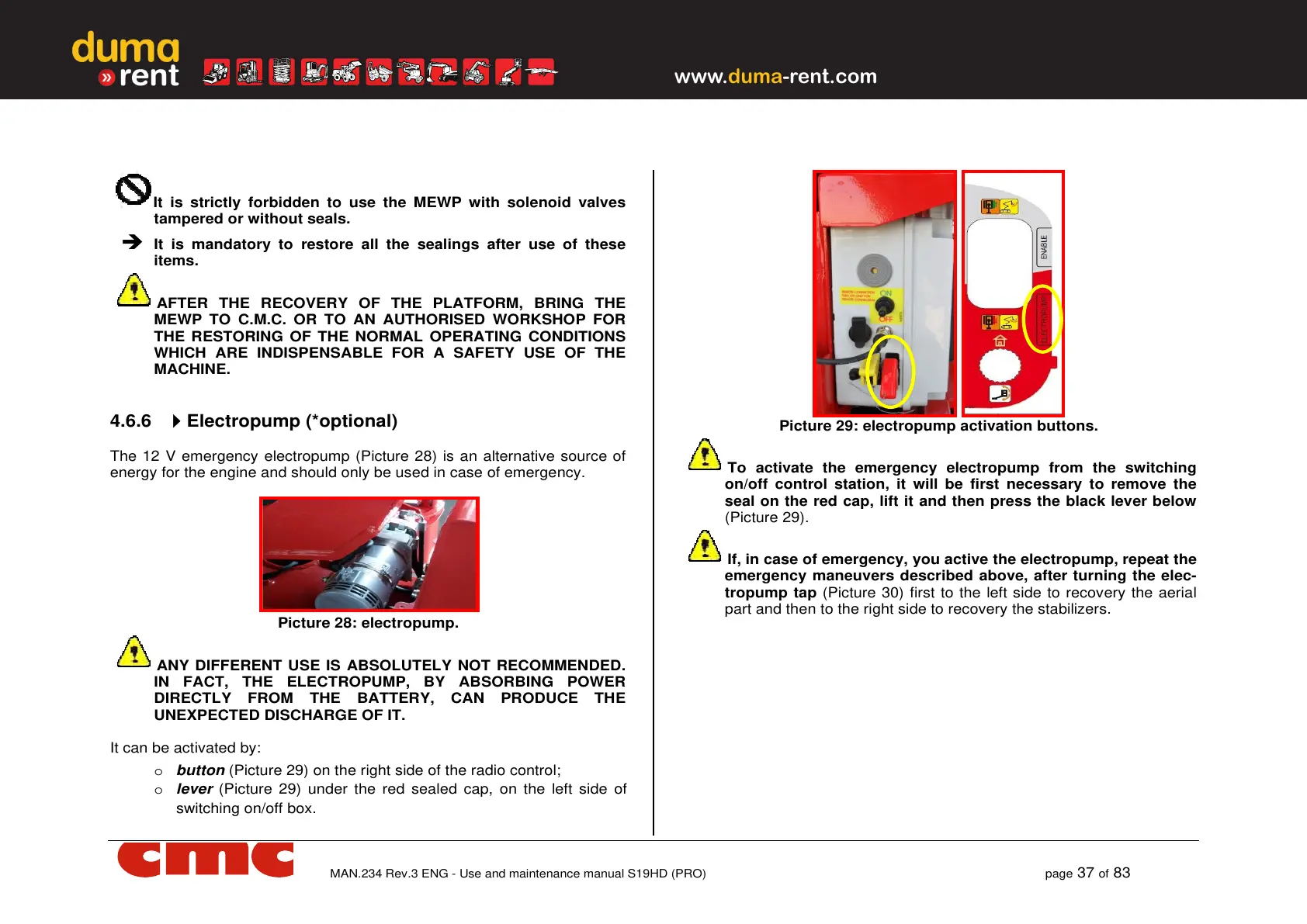

MAN.234 Rev.3 ENG - Use and maintenance manual S19HD (PRO) page
37
of
83
It is strictly forbidden to use the MEWP with solenoid valves
tampered or without seals.

It is mandatory to restore all the sealings after use of these
items.
AFTER THE RECOVERY OF THE PLATFORM, BRING THE
MEWP TO C.M.C. OR TO AN AUTHORISED WORKSHOP FOR
THE RESTORING OF THE NORMAL OPERATING CONDITIONS
WHICH ARE INDISPENSABLE FOR A SAFETY USE OF THE
MACHINE.
4.6.6

Electropump (*optional)
The 12 V emergency electropump (Picture 28) is an alternative source of
energy for the engine and should only be used in case of emergency.
Picture 28: electropump.
ANY DIFFERENT USE IS ABSOLUTELY NOT RECOMMENDED.
IN FACT, THE ELECTROPUMP, BY ABSORBING POWER
DIRECTLY FROM THE BATTERY, CAN PRODUCE THE
UNEXPECTED DISCHARGE OF IT.
It can be activated by:
o button (Picture 29) on the right side of the radio control;
o lever (Picture 29) under the red sealed cap, on the left side of
switching on/off box.
Picture 29: electropump activation buttons.
To activate the emergency electropump from the switching
on/off control station, it will be first necessary to remove the
seal on the red cap, lift it and then press the black lever below
(Picture 29).
If, in case of emergency, you active the electropump, repeat the
emergency maneuvers described above, after turning the elec-
tropump tap (Picture 30) first to the left side to recovery the aerial
part and then to the right side to recovery the stabilizers.
