Chapter 2: Installation
4 Installing the Control Panel
Installing the Control Panel
When installing, make sure the Compass Safe Distance of 0.6 m is
maintained.
The Control Panel can be mounted in two ways, if needed with the cable
relief:
• Desktop mounting
• Flush mount — typically in a console
Desktop mounting

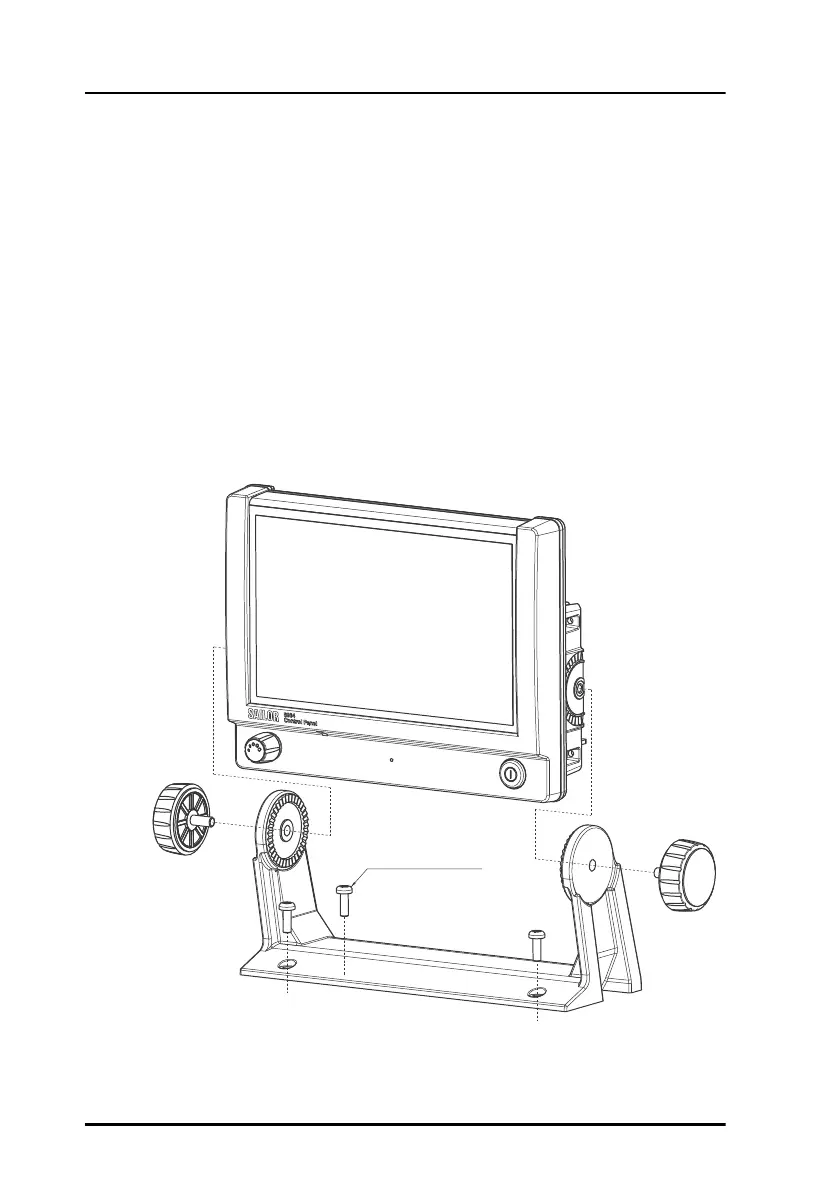

You can mount the Control Panel on a desktop using the mounting bracket.
M4x12 TORX 20 (4 pcs.) or
ø3.9x19 TORX 20 (4 pcs.)
