Chapter 3: Connectors & controls
16 Controls
Connecting cables
To connect the Control Panel, do as follows:
1. Connect an Ethernet cable to the LAN connector on the Control Panel.
For one cable, use the lower LAN connector (Primary LAN). Both
connectors work in DHCP and zeroconf environments.
2. Connect the power cable to the PWR connector according to the
description in DC Power input 12–24 V DC (PWR) on page 12.
3. Connect the other end of the Ethernet cable to one of the LAN
connectors on the unit you want to control via the Control Panel.
When connected and powered, all the units are automatically set up to
communicate with each other in the Ethernet network.

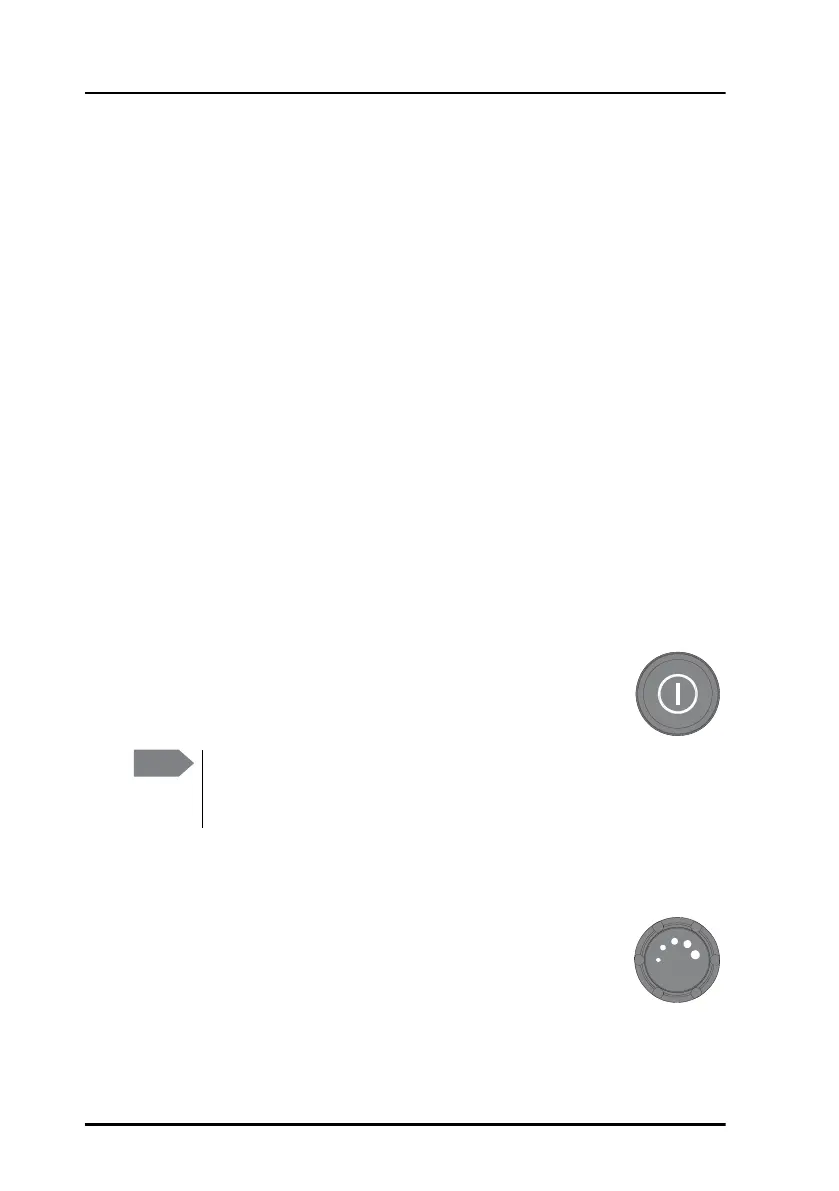

Controls
Power button
To switch on: Push the button.
To switch off: Push and hold for 1 second and press OK. If
the Control Panel cannot switch off normally (e.g. due to a
fault): Push and hold for 12 seconds.
Dim and night mode
Turn the dim knob to increase or decrease the display
brightness. The display lowers the backlight either when
turning the dim knob on the front panel counterclockwise or
automatically when using the internal light sensor.
For automatic setting, turn the dim knob until “Automatic” appears on the
top of the touch-screen, then press “Automatic” on the touch-screen.
Note
When the remote switch is used and the Control Panel is switched
on, you can only use the Power button on the Control Panel to
reboot the unit.
