Chapter 2: Installation
Installing the Control Panel 7
22222
Installation

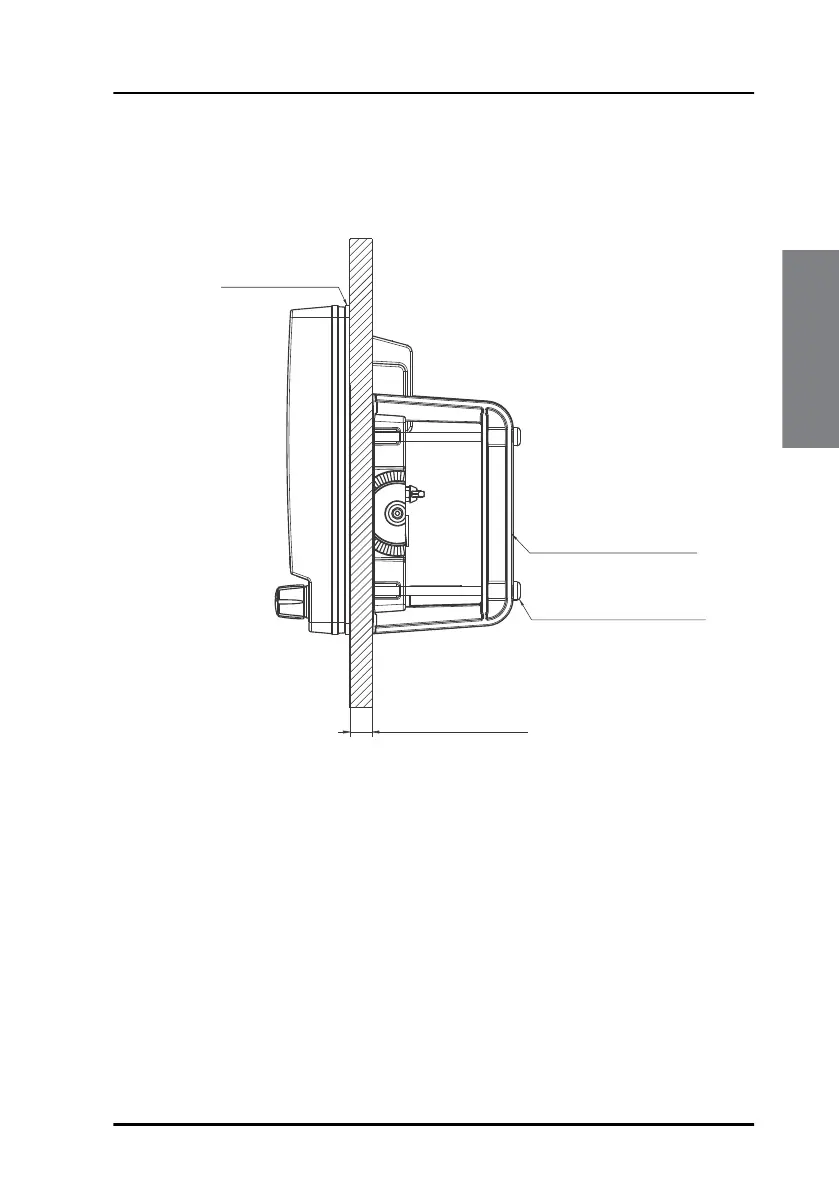

3. Ensure that the flush mount gasket is placed correctly on the Control
Panel.
4. Fit the Control Panel into the cut-out in the console.
5. Mount the flush mount brackets on the back of the Control Panel by
mounting the four Torx screws through the bracket and into the Control
Panel.
Screw M4x65 Torx 20 (4 pcs.)
Flush Mount Bracket (2 pcs.)
Flush Mount Gasket
20Max Wall Thickness mm
