5.4.3 Connections
For water connection refer to m-tec user manual: https://m-tec.com
5.5 Storage
Before storage, the printer must be disassembled into 8 separate parts:
• 1 X-beam (including X- and Y carriages)
• 2 Y-beams
• 4 Z-beams (Including Z carriages and E-box)
• Printhead (including cables)
Parts must be stored assembled in modules and raised from ground (with i.e.: pallets or joists) in such a
manner that it is possible to access under using fork lift or wrap lifting strap around. Printhead can be
stored on a regular EU-pallet or similar. All cable ends must be covered and tied to the beams to avoid
damage. All accessories must be stored on pallets and protected from weather.

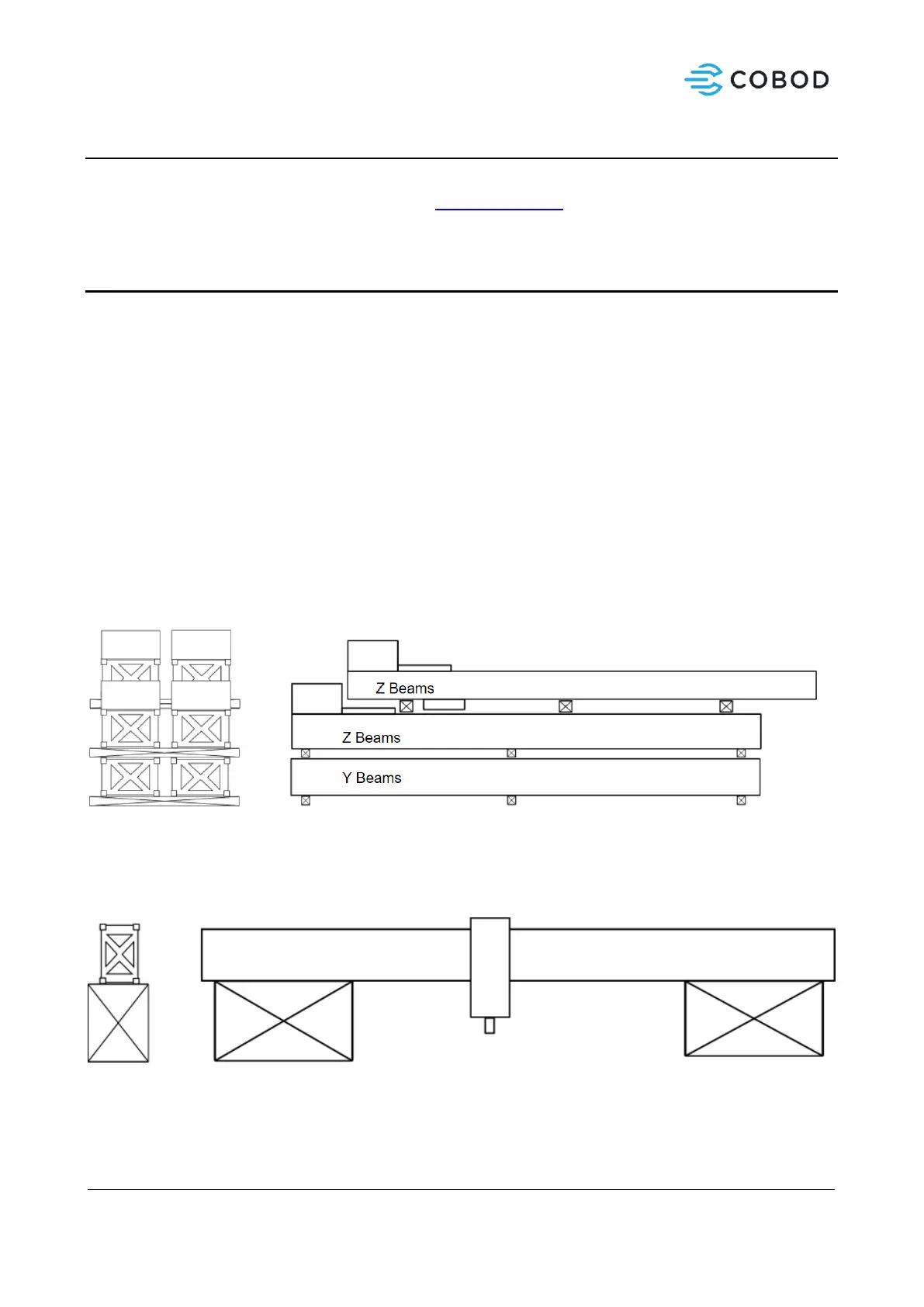

Packing of Z and Y beams:
Figure 10: Packing placement of Z and Y axes
Packing of X beam:
Figure 11: packing placement of X-axis
