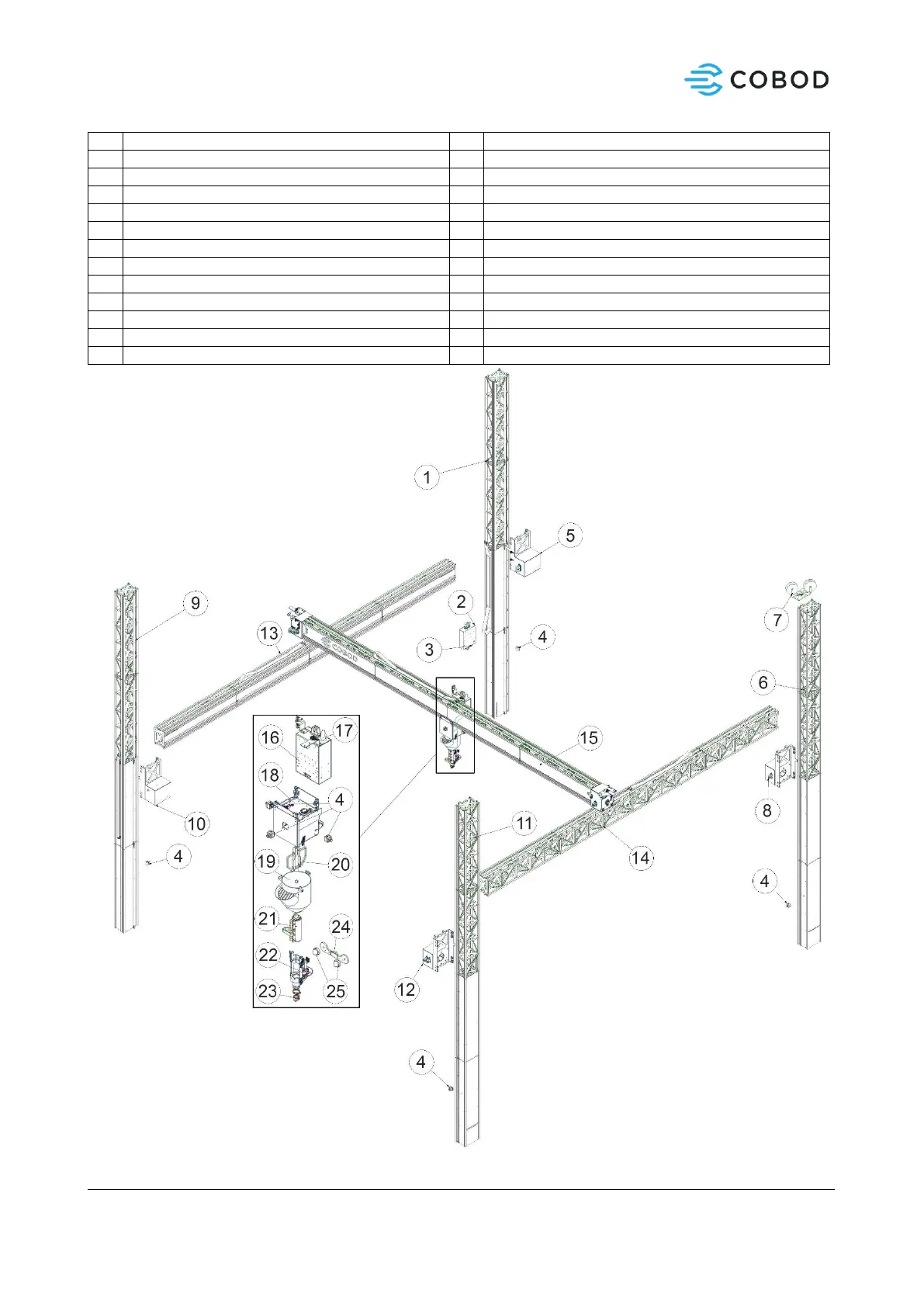

Figure 2: Exploded view, printer parts
1
Z1-axis
14
Y2-axis
2
Main E-box
15
X-axis
3
Power connection and circuit breaker
16
X-carriage E-Box
4
Emergency stop
17
Status lamp
5
Z1-carriage
18
X-carriage
6
Z2-axis
19
Material hopper
7
Hose management
20
Mixing shaft
8
Z2-Carriage
21
PCP
9
Z3-axis
22
U Axis
10
Z3-carriage
23
Nozzle
11
Z4-axis
24
Camera Mount
12
Z4-carriage
25
IP Cameras
13
Y1-axis
