If TMPS is minimized and the sensors successfully are paired with the the
unit, it will automatically send pressure and temperature readings to the
monitor every 5 minutes.
If the pressure data received by the monitor is over or under the pressure
values selected, or if the tyre temperature exceeds the temperature value
you have selected, the TMPS icon on the mapping screen will turn red and
the unit will emit a warning beep.
To quickly access the TPMS menu press the icon on the mapping screen.

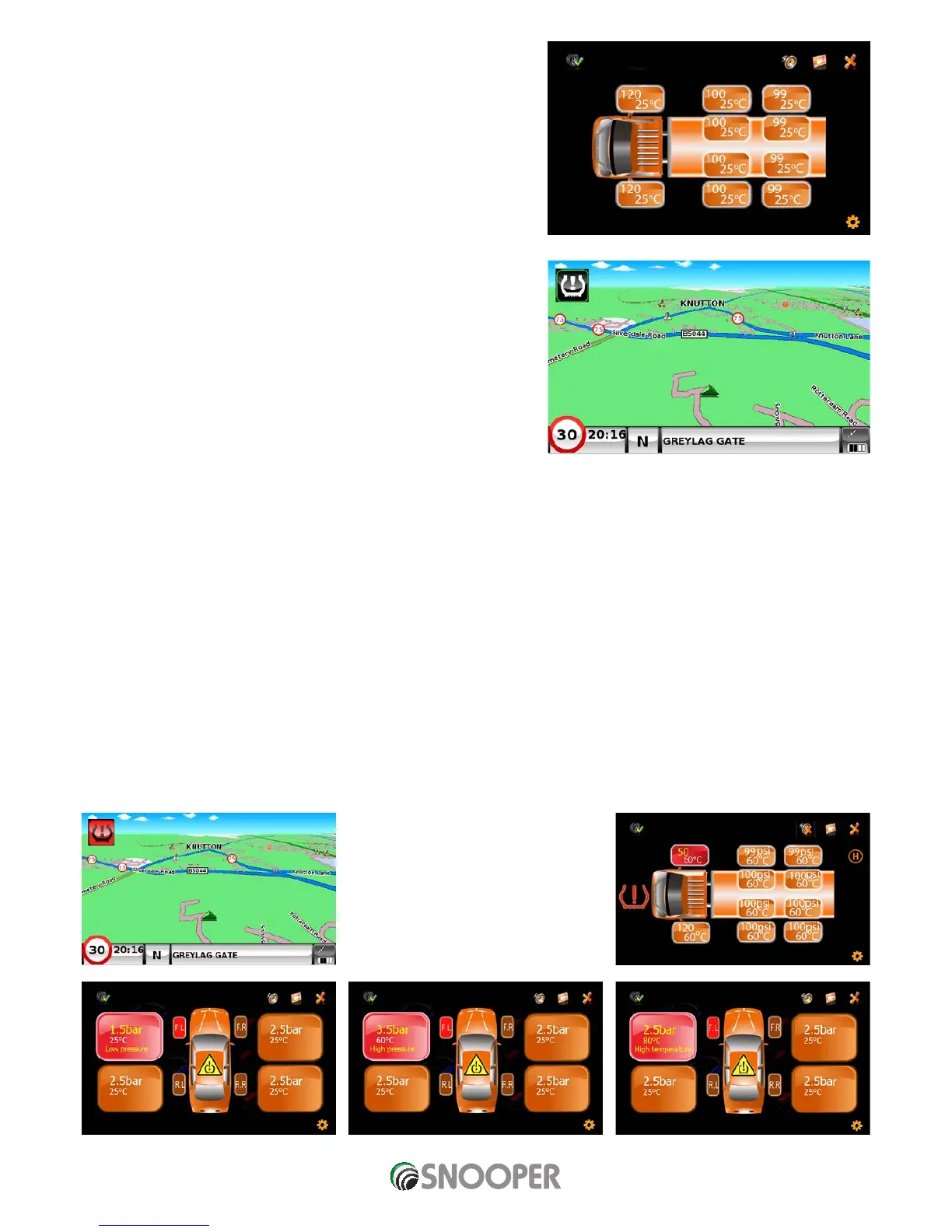

10.6 Minimise TPMS
For TPMS to operate correctly it must not be closed.
Once you have paired the sensors, configured the high and low values, of
the type pressure sensors, you now need to return to the navigation menu.
If TPMS is closed incorrectly then you will not receive any alerts.
To return to the navigation menu press the ‘minimise’ button (1).
The TPMS icon will now appear on the mapping screen.
10.7 Alerts
Sensors successfully paired with the Tyre Pilot display will automatically send pressure and temperature readings to the TMPS app
every 5 minutes. If the pressure data received by the monitor is over or under the pressure values selected, or if the tyre temperature
exceeds the temperature value you have selected, the device will provide an immediate alert.
1. The minimized TPMS icon will flash RED on the navigation screen
2. The device will emit an audible beep.
3. Press the TPMS icon to enter the menu
4. The corresponding icon for either pressure or temperature will appear on the display and flash.
3. The icon representing the tyre which is experiencing the issue will be shown in red .
4. To mute the alert press the speaker icon (1) .
5. Press to : Close (button 3) ,minimise (button 2) or to adjust the setting (button 4) TPMS
1
1 2 3
4
Examples of alerts:
Car - low pressure on the front left tyre Car high pressure on the front left tyre Car - high temperature on the front left tyre
Truck - low press on front left tyre
