Codan Sentry-H 6110-MP - Page 22

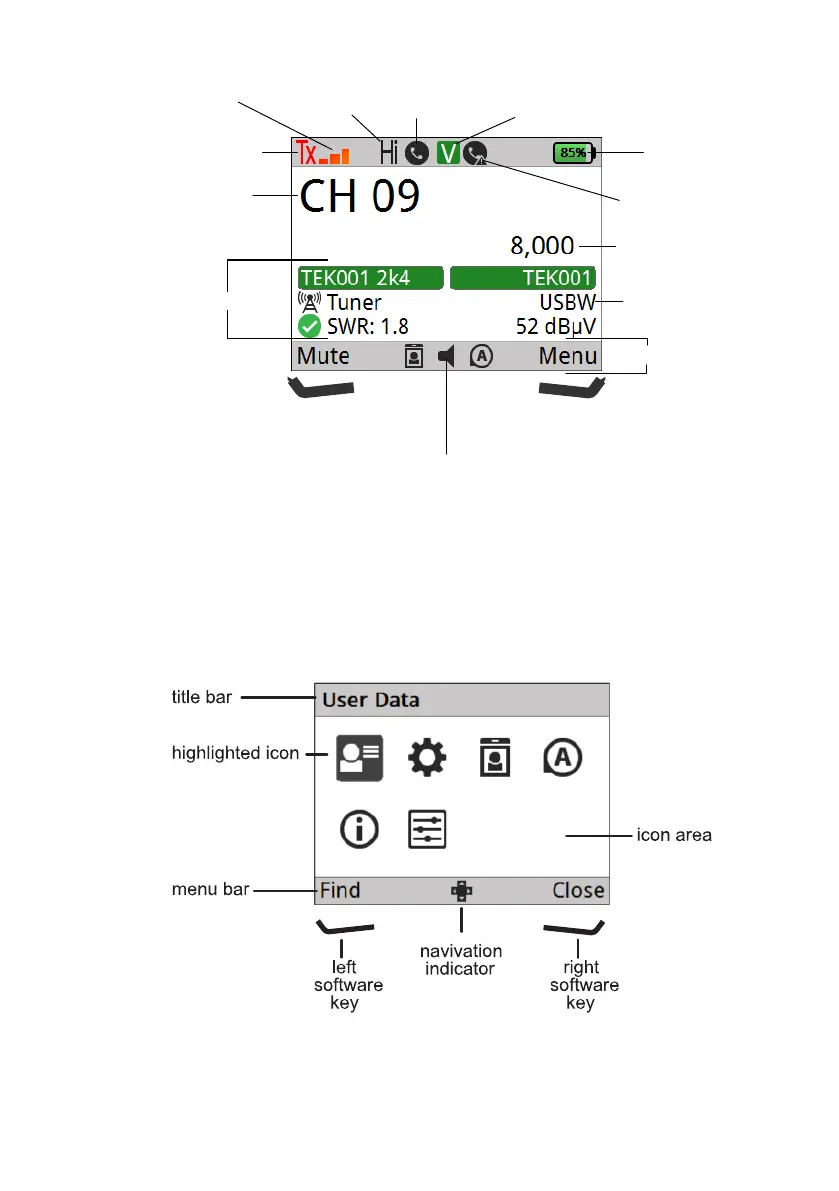

Rx/Tx level
indicator
Rx/Tx indicator
channel name
status areas
left
software key
right
software key
volume/speaker mode indicator
menu bar
mode indicator
Tx/Rx frequency
battery level
indicator
missed call icon
mute type indicator
(highlighted when mute is on)
call type
indicator
Tx power
setting
The Menu screen
The menu screen displays all user and system-level configurations for the radio, provides
information about the radio and allows access to advanced views and administrator login on the
radio.
Front panel and screen overview
Page 20 Sentry-H 6110-MP Operator Guide
