20

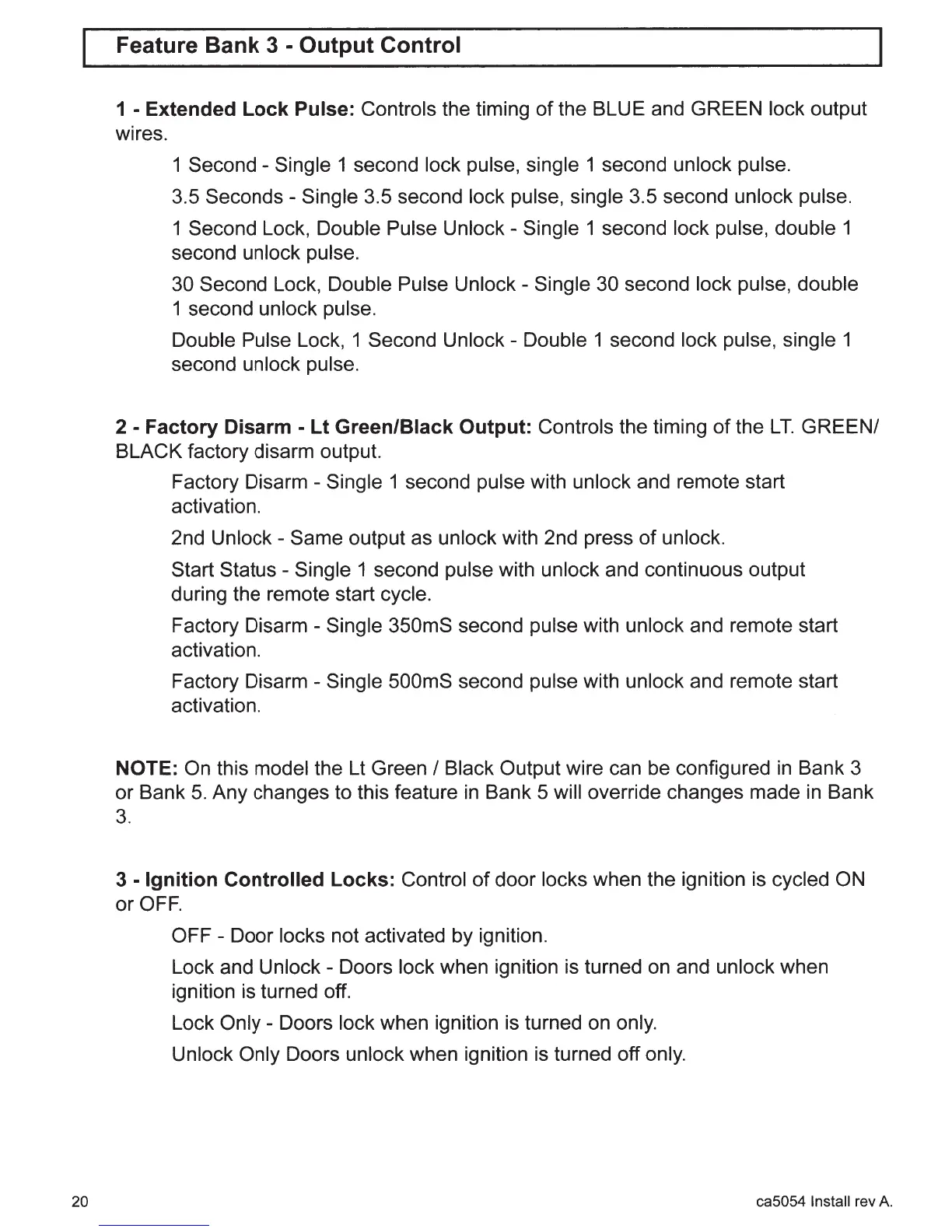

Feature Bank 3 - Output Control
1 -Extended Lock Pulse: Controls the timing
of
the BLUE and
GREEN
lock output
wires.
1 Second - Single 1 second lock pulse, single 1 second unlock pulse.
3.5 Seconds - Single 3.5 second lock pulse, single 3.5 second unlock pulse.
1 Second Lock, Double Pulse
Unlock-
Single 1 second lock pulse, double 1
second unlock pulse.
30 Second Lock, Double Pulse Unlock - Single 30 second lock pulse, double
1 second unlock pulse.
Double Pulse Lock, 1 Second
Unlock-
Double 1 second lock pulse, single 1
second unlock pulse.
2 - Factory Disarm - Lt Green/Black Output: Controls the timing
of
the
LT.
GREEN/
BLACK
factory disarm output.
Factory Disarm - Single 1 second pulse with unlock and remote start
activation.
2nd Unlock -
Same
output as unlock with 2nd press
of
unlock.
Start Status - Single
1 second pulse with unlock and continuous output
during the remote start cycle.
Factory Disarm - Single 350mS second pulse with unlock and remote start
activation.
Factory Disarm - Single 500mS second pulse with unlock and remote start
activation.
NOTE: On this model the Lt Green I Black Output wire can be configured in Bank 3
or
Bank
5.
Any
changes to this feature in Bank 5 will override changes made in Bank
3.
3 - Ignition Controlled Locks: Control
of
door
locks when the ignition is cycled ON
or
OFF.
OFF
- Door locks not activated by ignition.
Lock and
Unlock-
Doors lock when ignition is turned on and unlock when
ignition is turned off.
Lock Only - Doors lock when ignition is turned on only.
Unlock Only Doors unlock when ignition is turned
off
only.
ca5054 Install rev
A.
