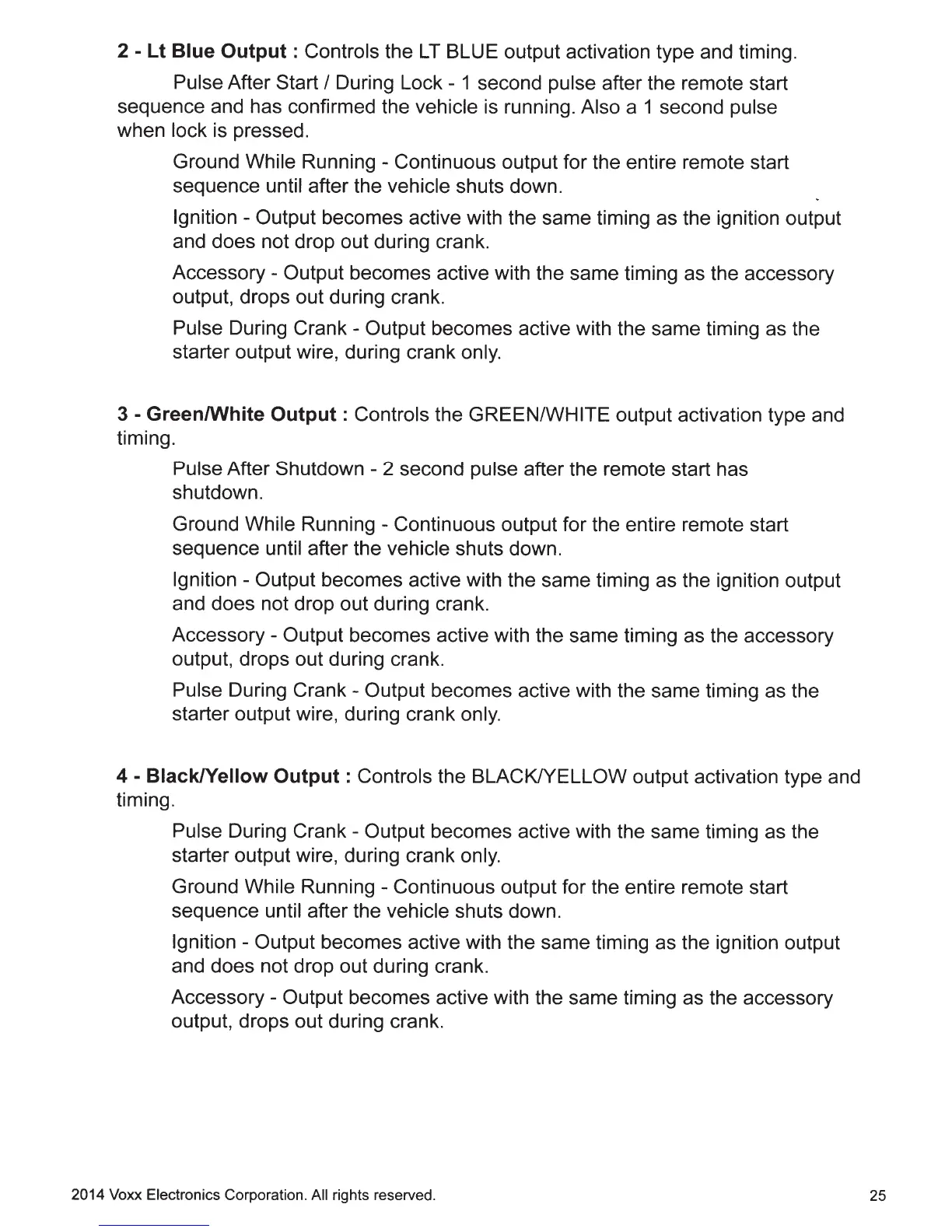

Code Alarm Professional ca5054 - Page 25

2 -
Lt
Blue
Output :
Controls
the
LT
BLUE output activation type and timing.
Pulse
After
Start
I During Lock - 1 second
pulse
after the remote start
sequence and has confirmed the
vehicle
is running.
Also
a
1 second
pulse
when
lock
is pressed.
Ground
While
Running - Continuous output for the entire remote start
sequence
until
after the
vehicle
shuts down.
Ignition-
Output becomes active with the same timing as the ignition output
and does not drop out during crank.
Accessory - Output becomes active with the same timing as the accessory
output, drops out during crank.
Pulse During Crank - Output becomes active with the same timing as the
starter output wire, during crank
only.
3-
Green/White
Output:
Controls
the
GREEN/WHITE output activation type and
timing.
Pulse
After Shutdown - 2 second
pulse
after the remote start has
shutdown.
Ground
While
Running - Continuous output for the entire remote start
sequence
until
after the
vehicle
shuts down.
Ignition
- Output becomes active with the same timing as the ignition output
and does not drop out during crank.
Accessory
- Output becomes active with the same timing as the accessory
output, drops out during crank.
Pulse
During Crank - Output
becomes active with the same timing as the
starter output wire, during crank
only.
4 -
Black/Yellow
Output :
Controls
the
BLACKNELLOW
output activation type and
timing.
Pulse
During Crank - Output becomes active with the same timing as the
starter output wire, during crank
only.
Ground
While
Running - Continuous output for the entire remote start
sequence
until
after the
vehicle
shuts down.
Ignition
- Output becomes active with the same timing as the ignition output
and does not drop out during crank.
Accessory - Output becomes active with the same timing as the accessory
output, drops out during crank.
2014 Voxx
Electronics
Corporation.
All
rights reserved.
25
