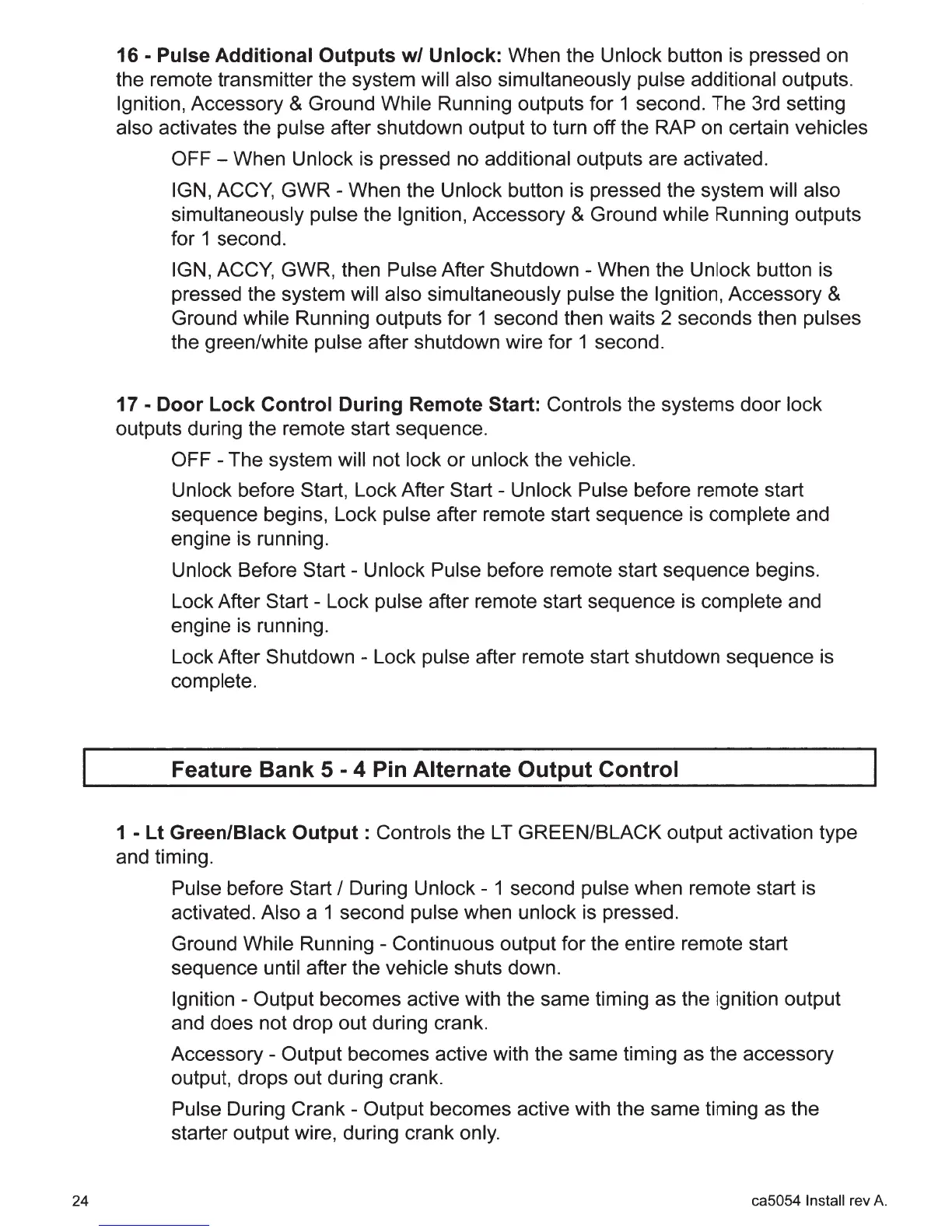

16 - Pulse Additional Outputs w/ Unlock: When the Unlock button is pressed on
the remote transmitter the system will also simultaneously pulse additional outputs.
Ignition, Accessory & Ground While Running outputs for 1 second. The 3rd setting
also activates the pulse after shutdown output to turn off the RAP on certain vehicles
OFF- When Unlock is pressed no additional outputs are activated.
IGN, ACCY,
GWR- When the Unlock button is pressed the system will also
simultaneously pulse the Ignition, Accessory
& Ground while Running outputs
for 1 second.
IGN, ACCY, GWR, then Pulse After
Shutdown- When the Unlock button is
pressed the system will also simultaneously pulse the Ignition, Accessory &
Ground while Running outputs for 1 second then waits 2 seconds then pulses
the green/white pulse after shutdown wire for 1 second.
17 - Door Lock Control During Remote Start: Controls the systems door lock
outputs during the remote start sequence.
OFF - The system will not lock
or unlock the vehicle.
Unlock before Start, Lock After
Start- Unlock Pulse before remote start
sequence begins, Lock pulse after remote start sequence is complete and
engine is running.
Unlock Before
Start- Unlock Pulse before remote start sequence begins.
Lock After Start - Lock pulse after remote start sequence is complete and
engine is running.
Lock After Shutdown - Lock pulse after remote start shutdown sequence is
complete.
Feature Bank 5 - 4 Pin Alternate Output Control
1 - Lt Green/Black Output : Controls the L T GREEN/BLACK output activation type
and timing.
Pulse before Start
I During Unlock- 1 second pulse when remote start is
activated. Also a 1 second pulse when unlock is pressed.
Ground While Running - Continuous output for the entire remote start
sequence until after the vehicle shuts down.
Ignition - Output becomes active with the same timing as the ignition output
and does not drop out during crank.
Accessory- Output becomes active with the same timing as the accessory
output, drops out during crank.
Pulse During Crank - Output becomes active with the same timing as the
starter output wire, during crank only.
ca5054 Install rev A.
