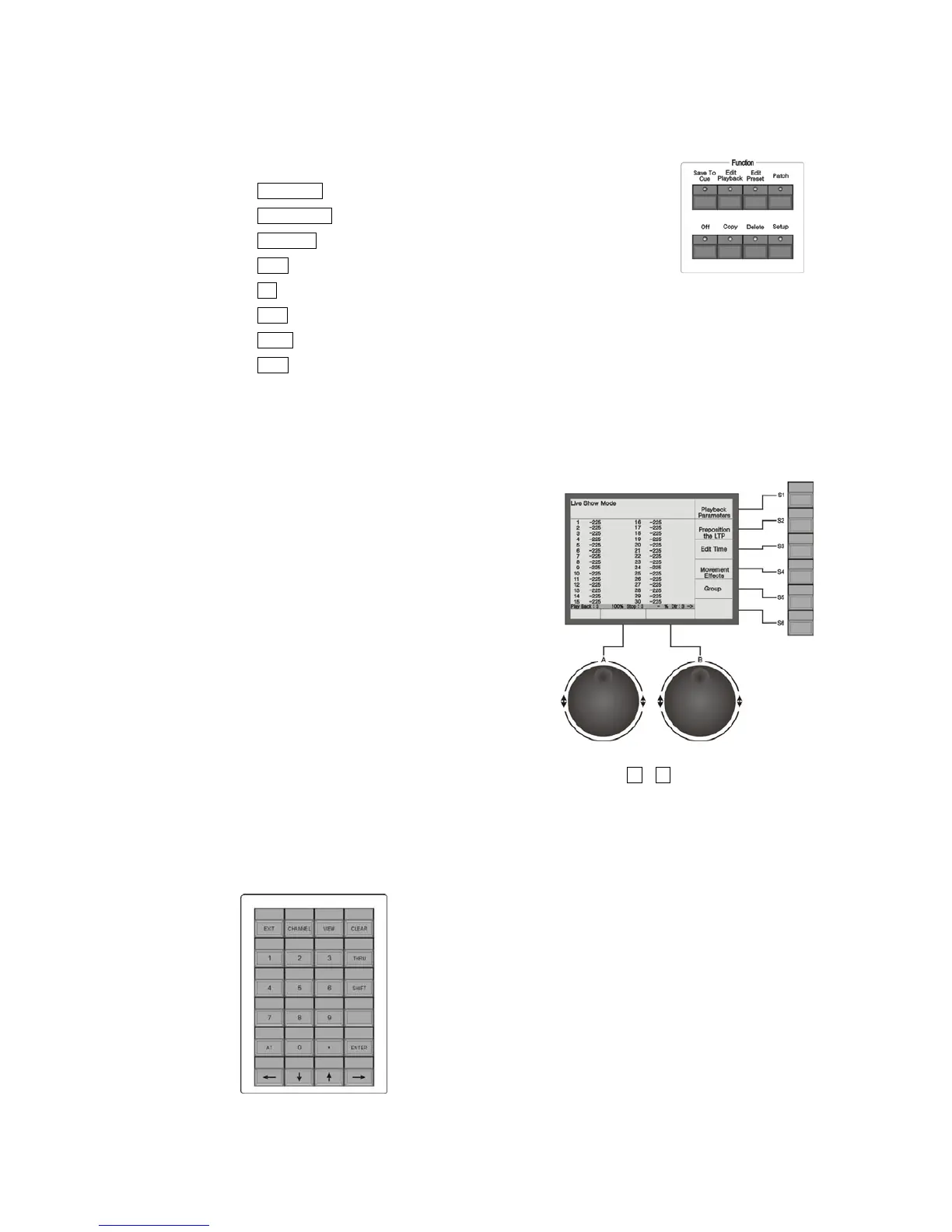

1.2.6. Function
There are 8 buttons in the Function section:
Save to Cue --- save the Playback program of Cue;
Edit Playback --- establish and setup Playback;
Edit Preset --- edit the Preset;
Patch --- patch the Units;
Off --- close some Units;
Copy --- copy function;
Delete --- delete function;
Setup --- setup the Console.
1.2.7. LCD Screen
Display diversified information under various circumstances.
1.2.8. Control wheels
The wheel A and B are used to setup all the attributes
values of the Units, as well as all the controlling
parameters of the Effects.
1.2.9. Menu Soft-keys
On the right of the LCD screen, there are 6 Soft-keys, the
functions of which depend on the present state of the
console. Under different situations, the enabled functions of the keys are displayed on the corresponding
place of the LCD screen. For convenient, keys from the top down we use S1 – S6 instead.
1.2.10. Numeric keypad
There are 24 buttons in the Numeric keypad. Their functions will be illustrated in the following chapter.
