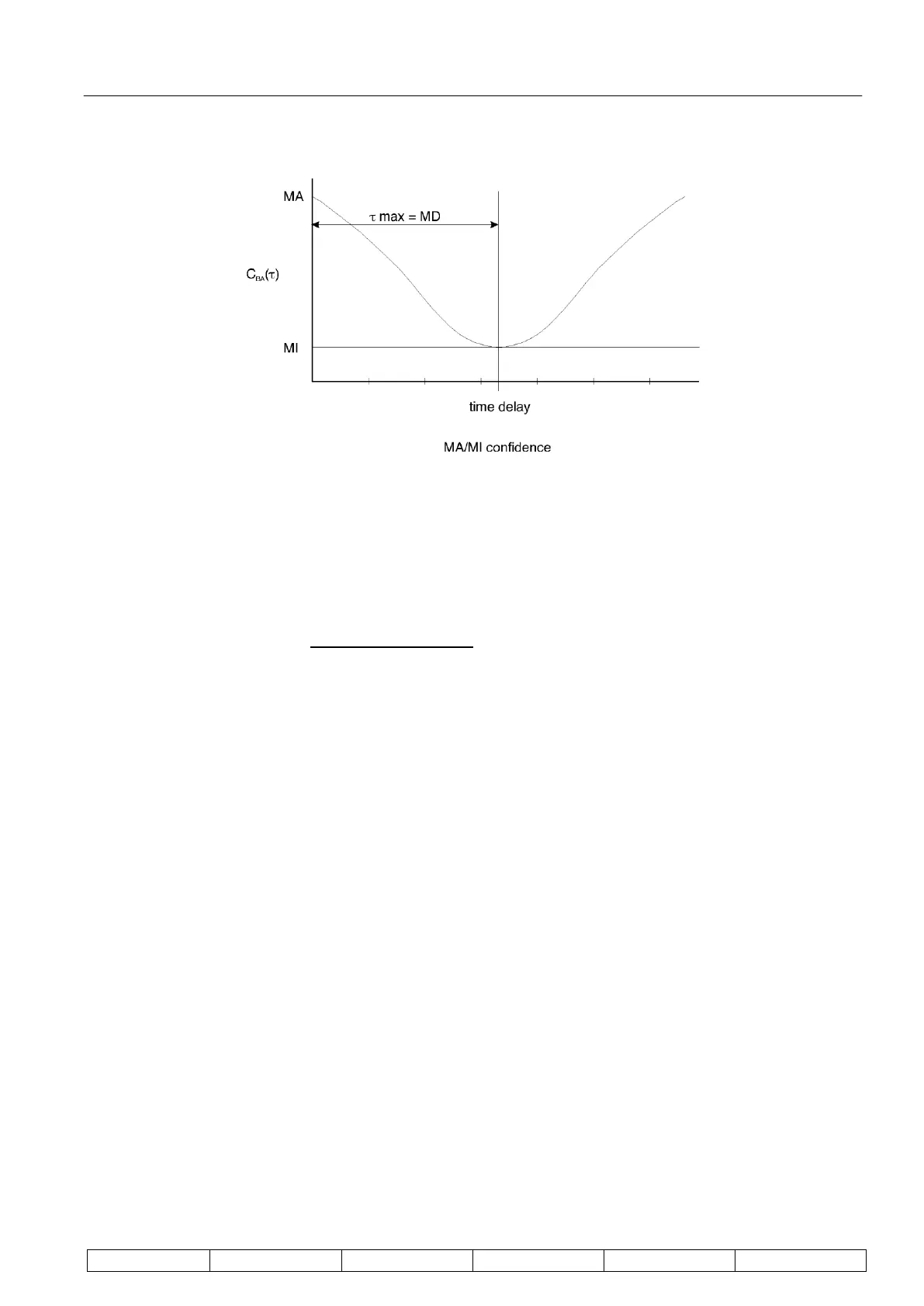

In the V-CEM5100 the correlogram is inverted as follows:
Consequently in order to determine the  max. value the correlogram is scanned to find the minimum.
The first element of the correlogram corresponds to a zero time delay and the 256th element corresponds to
255 time delay increments. Hence, if a DATA RATE of 1ms is selected the 256th element corresponds to a time
delay of 255ms.
Displacement is the point on the ‘x’ axis of the correlogram that coincides with the minimum. The correlation
coefficient is defined as :
Correlation Coefficient = max. value – min. value x 100%
max. value
and is a measure of the confidence at the measurement. Coefficient values of less than 10% would indicate a
non-acceptable measurement.
