Coffee Queen A-2 - Mega Gold A, Termos A Electrical Schematic

FILTERBREW & SERVING CONCEPT
25

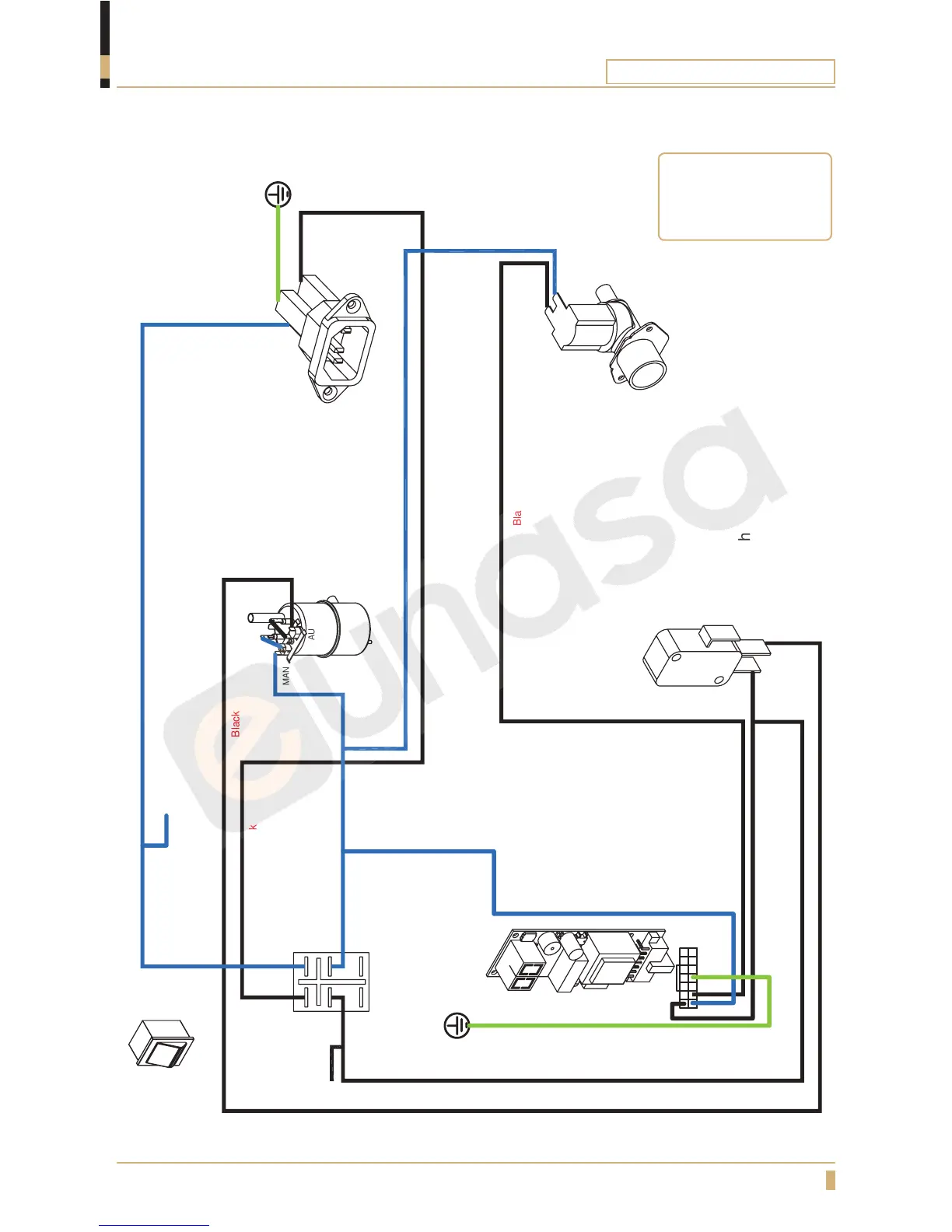

ELECTRICAL SCHEMATICS
Mega Gold A, Termos A
MIC 1
MIC 2
A-1
VENT
AUT
ELH
230
MAN
VENT
230
A-1
ELH
230
Rocket Switch
PCB Original A
Brew Element
Main Socket
Inlet Valve 1.8L
Micro Switch
1
2 3
4 5
6
Blue
Black
Black
Blue Black
Green/Yellow
Blue
Black Black
Black
Blue
Black
Green/Yellow
Note:
- Thick wire ≥ 100V
- Thin wire ≤ 24V
