Coffee Queen A-2 - V-2 Electrical Schematic

FILTERBREW & SERVING CONCEPT
33
V-2

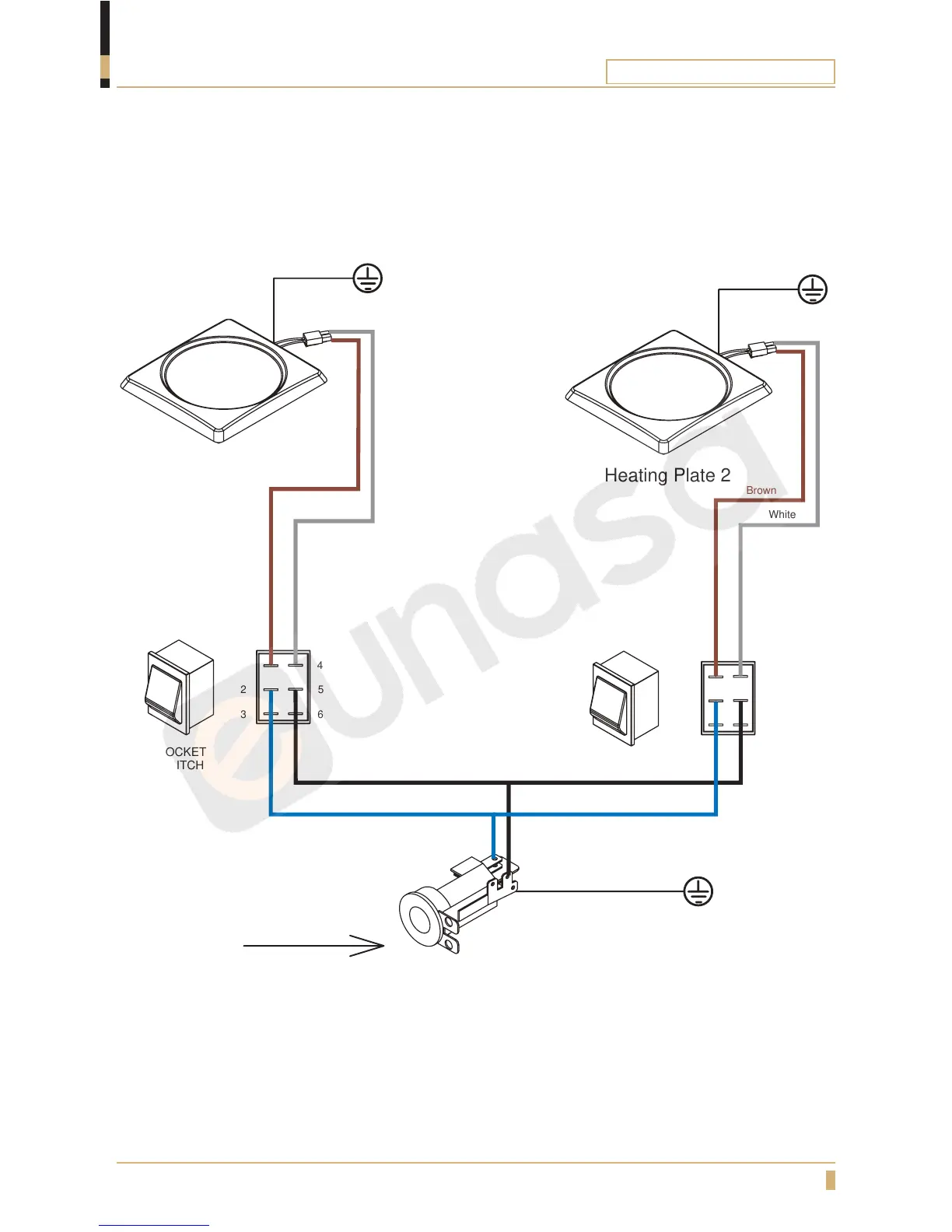

ELECTRICAL SCHEMATICS
1
2
3
4
5
6
ROCKET
SWITCH
Chassis
GND
Heating Plate 1
Main Power
Socket
1
2
3
4
5
6
ROCKET
SWITCH
Chassis
GND
Heating Plate 2
Chassis
GND
230V Input
Black Black
Blue Blue
White
White
Brown
Brown
