FILTERBREW & SERVING CONCEPT
55
EXPLODED VIEW
Cater

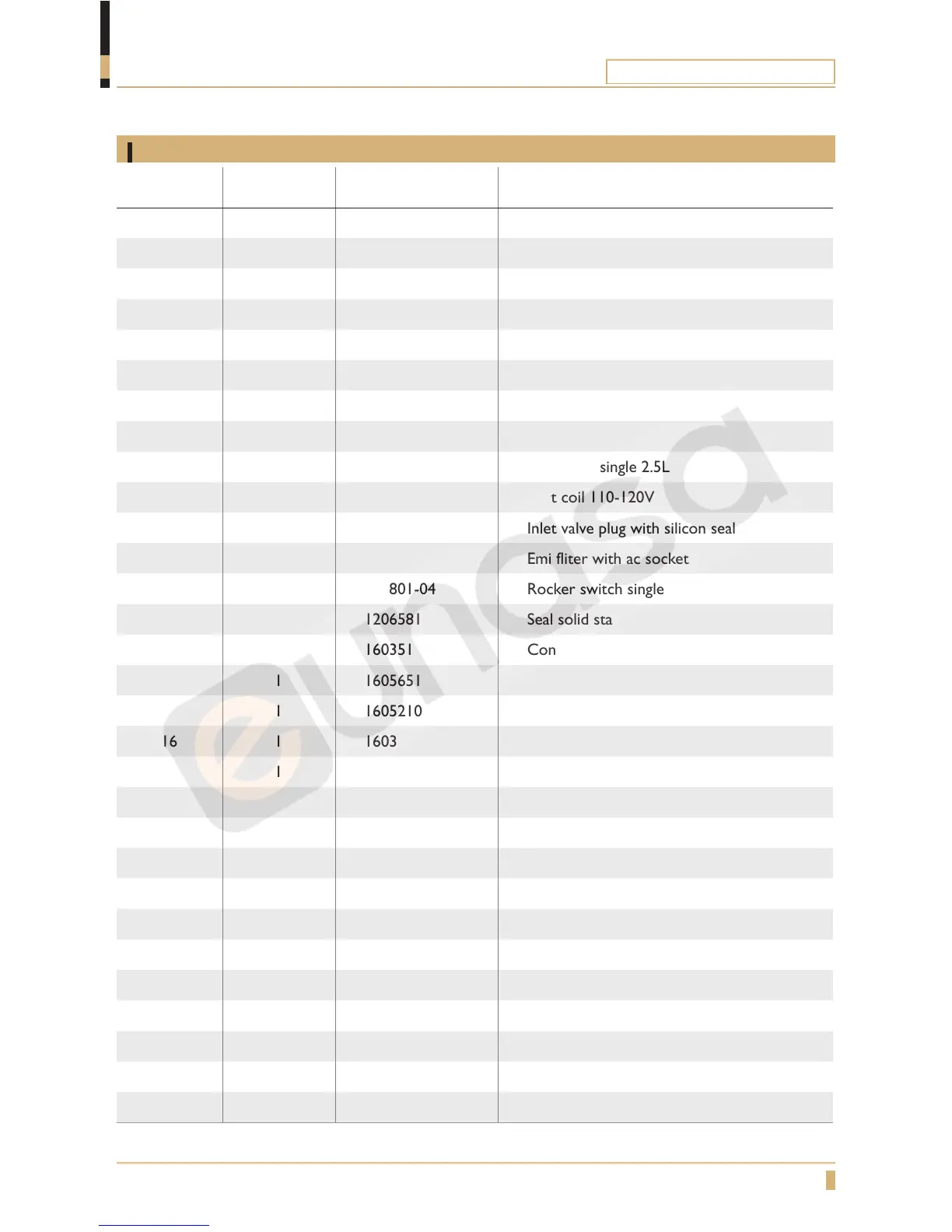

Spare parts list
POS. PCS Part No. Description
1 1 1102011 Brew basket 110mm
2 1 1664002 Red indicating lamp 230V
3 1 1603863 Membrane switch single
3 1 1603864 Membrane switch double
4 1 1201924 Hot water faucet
5 1 140204 Screw M4x6mm
6 1 1505042 Inlet hose 3/4”-1/2”
7 1 1604203/1604201 Solid state 25A
8 1 120624-01 (230V) Valve inlet single 2.5L
8 1 120617-01 (110V) Inlet coil 110-120V
9 1 1403401 Inlet valve plug with silicon seal
10 1 160571 Emi fliter with ac socket
11 1 160801-04 Rocker switch single(orange)
12 1 1206581 Seal solid state
13 1 160351 Connecter PA80 FF
14 1 1605651 PG complete (P16)
15 1 1605210 Power cable 4x1.5mm
16 1 1603866 Overlay cater without hole
17 1 1031801 Spray nozzle tower
18 1103303 Serving station 2.5L
19 1 160970 CQ sticker
20 1 1605403 Flat cable, extention
21 4 120136 Adjustable feet
22 1 1031646 (230V) Electronic unit PCB Cater
22 1 1031645 (110V) Electronic unit PCB 110V Cater
23 1 1603865 Overlay cater with hole
24 1 1206603 Gasket DIA23.5mm x 15mm D3mm
25 1 1206604 Gasket DIA18mm x 9mm D2mm
26 1 2760094 Gasket set for inlet hose
27 1 120422 Air inlet plastic 1.8L
To Next Page
