12 DataMan 100 Quick Reference Guide DataMan 100 Quick Reference Guide 13
Reading Distances

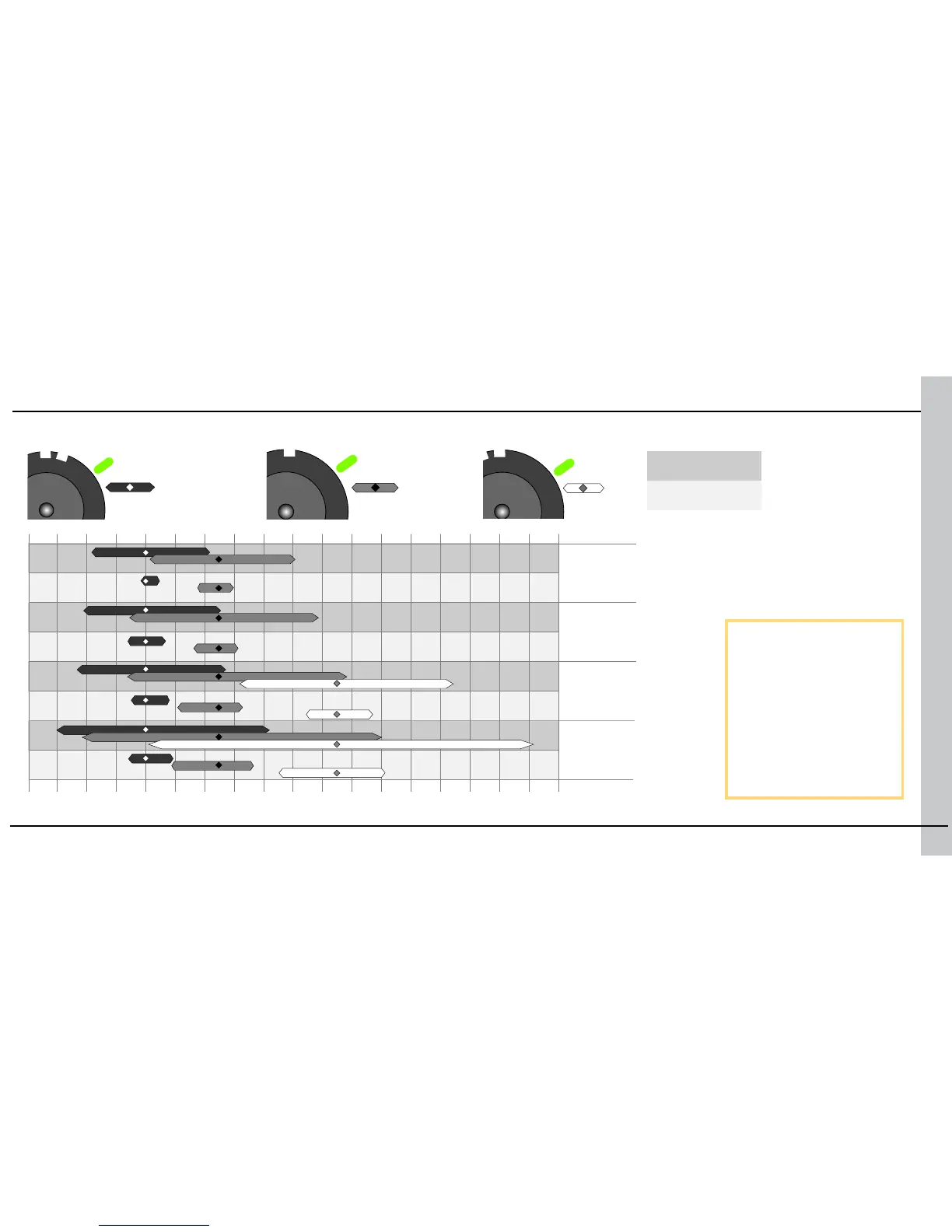

This chart shows the
supported range of reading
distances for four code
sizes (6, 8, 10, and 12 mil)
at each of the three focus
positions (40mm, 65mm,
and 105mm).
The working distances for
both the standard DataMan
100 and the DataMan 100-
LA (large-aperture) are
shown.
6 mil
8 mil
10 mil
12 mil
DataMan 100
DataMan 100-LA
20mm 40 60 80 100 120 140 160 180
105
40
65
105
40
65
105
40
65
