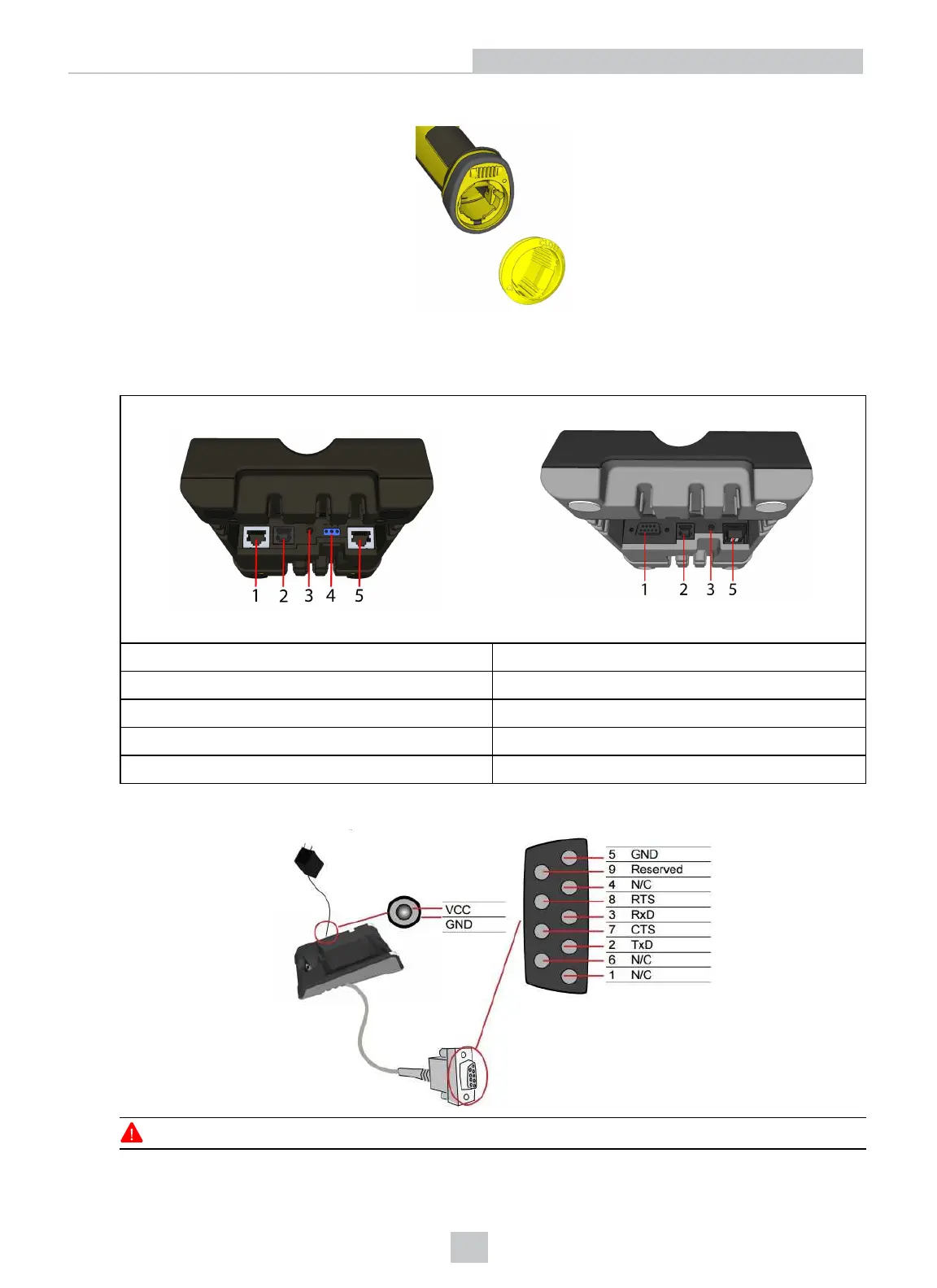

4. Insert the plug and twist it in place.
5. Power up the DMA-IBASE-BT-XX base station using a 24V power supply (DMA-24VPWR-XX). In the case of a
DMA-IBASE-01 base station, use either a 24V power supply, or a Class 3 Power Over Ethernet adapter.
6. Connect your base station to your PC using either serial, USB or Ethernet communication.
DMA-IBASE-BT-XX DMA-IBASE-01
1 RS-232 connection
2 USB connection
3 Power
4
Alternative power supply connector
5 Ethernet connection
Observe the following electrical requirements when connecting the base station through RS-232:
WARNING: For proper RS-232 operation, do not apply any voltage to pin 9.
24
Connection Options
