Cognex DataMan 8600 - Physical Layout of the Base Station

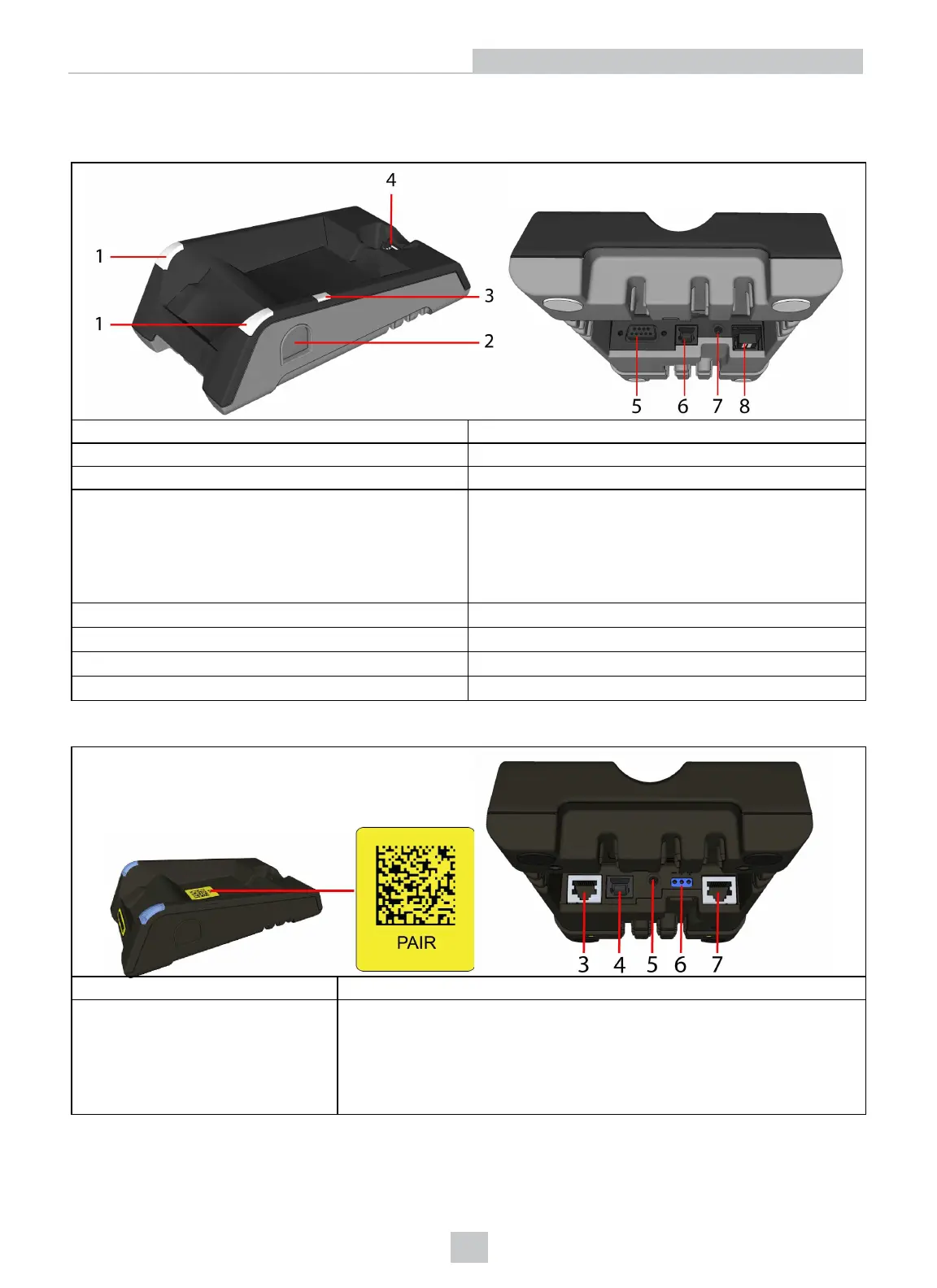

Physical Layout of the Base Station
DMA-IBASE-01
1 Base station status indicators
2 Spare battery charger
3 Spare battery charger status indicator
4 Connection point with the reader:
l pairing reader and base station
l non-wireless communication
l charging
5
RS-232
6
USB
7
Power plug (24 V, max. 13 W)
8
Ethernet (with optional Class 3 PoE power)
DMA-IBASE-BT-XX
1 Base station status indicators
2 Connection point with the reader:
l pairing reader and base station
l non-wireless communication
l charging
