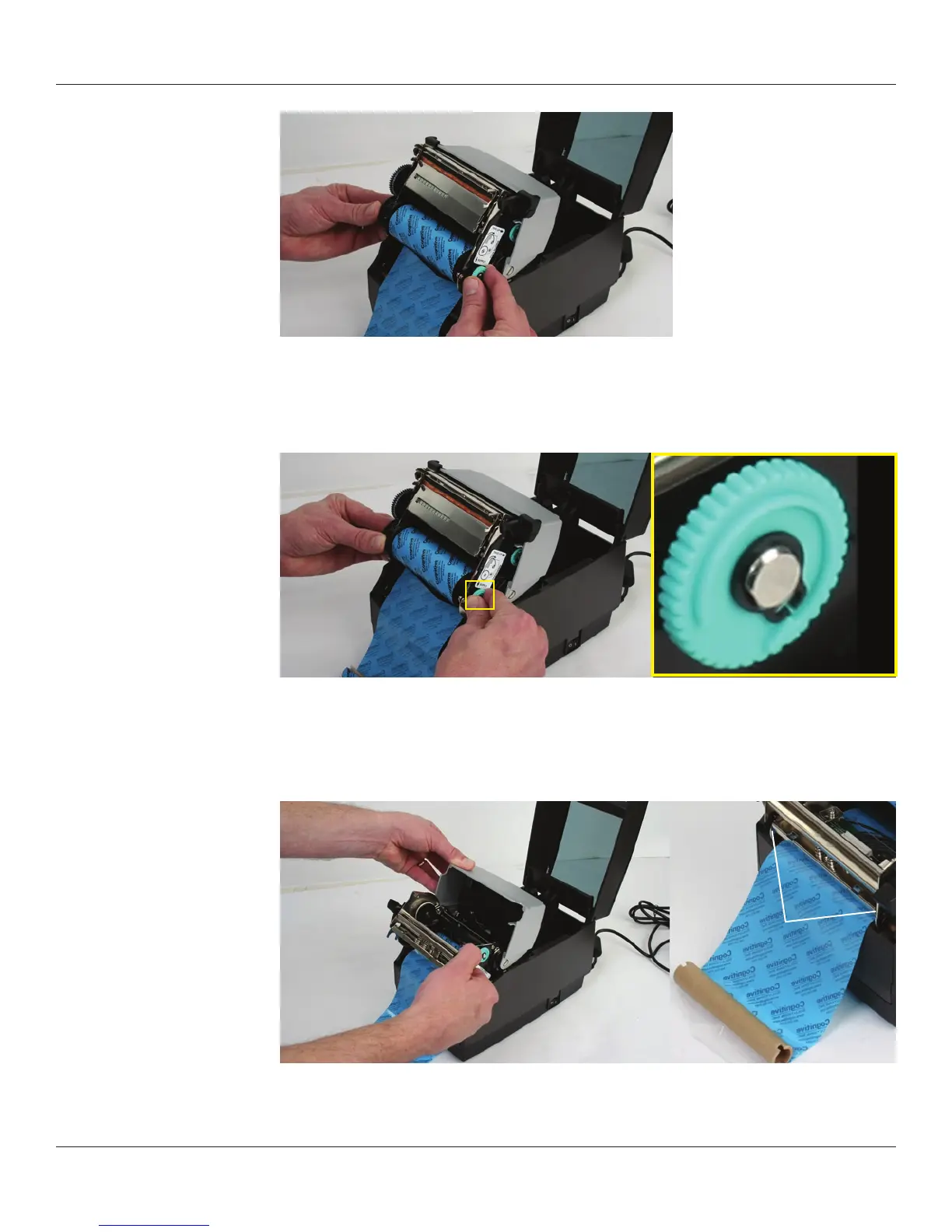

Figure 2-29. Lining up the Supply Roll Core with the Ribbon Spindle Notches
When the ribbon feels secure, gently push and rotate the green supply spindle clockwise,
while holding the supply clutch hug, until the ribbon seats properly.
Figure 2-30. Supply Spindle Rotation to Secure Supply Roll In Place
Once the ribbon supply roll is loaded, gently lower the printhead mechanism down
with one hand while holding the user interface cover with the other hand. DO NOT
LATCH the printhead mechanism. Refer to Figure 2-31.
Figure 2-31. Separating and Lowering the Printhead Mechanism from the User
Interface Without Latching the Mechanism
DO NOT LATCH
