Chapter 5: USB A Host
Chapter 5: USB-A HOST
This chapter describes use of the USB-A connector (referred to as “E” below in
Figure 5-1).

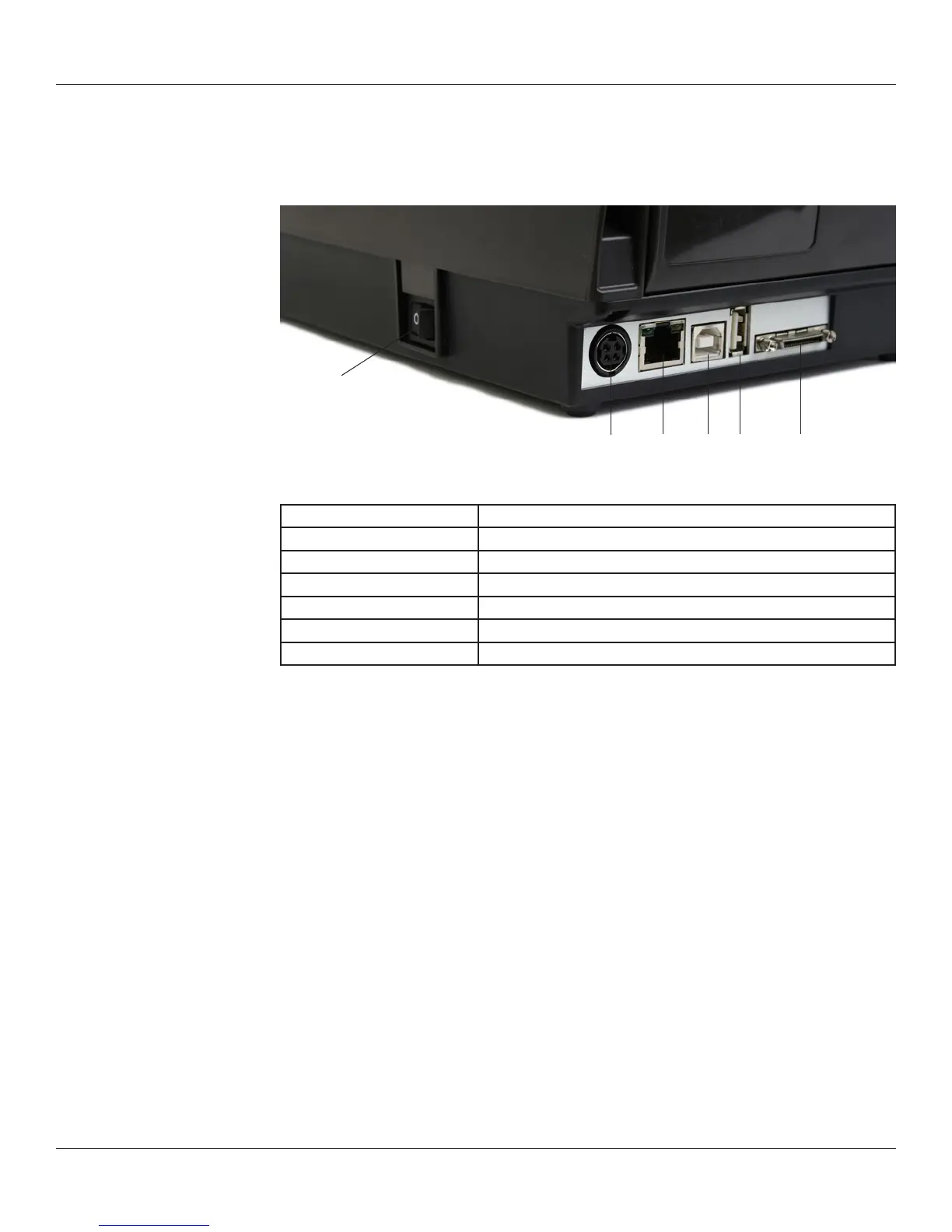

Figure 5-1. C Series Connections Including the USB A Host Port
Connector Use
A – ON/OFF switch Controls printer power
B – Power connector Connects to power supply
C – Ethernet connector (RJ-45) Ethernet communications port for network connectivity
D – USB-B device port USB communications port
E – USB-A host port USB communications port
F – Serial/Parallel port Serial/parallel data communications port
Using USB Hubs, Keyboards and Scanners
The printer supports USB hubs, keyboards and scanners. Any USB hub, Windows™
keyboard or number pad can be used with the USB-A port. Only USB scanners that
provide a keyboard-wedge interface can be used.
Keyboards and scanners can be used for menu navigation and data entry with menus
and stored formats. This allows for a stand-alone application when used in conjunction
with the printer’s LCD display.
Using a USB Flash Drive
This section describes use of a USB ash drive to load rmware, objects and settings to
the printer using its USB-A connector. Note that the printer must be running version
1.30 or higher to load rmware and 1.40 or higher to load objects and settings. The
printer loads les in the following order: 1) Settings, 2) Objects, and 3) Firmware.
NOTE: PLEASE REFER TO THE WEB SITE TO UPGRADE TO THE LATEST FIRMWARE
VERSION AND USE THIS FEATURE:
http://www.cognitivetpg.com/resources_Firmware.aspx
