Operation Manual P750/P1500/P3000
Cold Jet, LLC Page 16

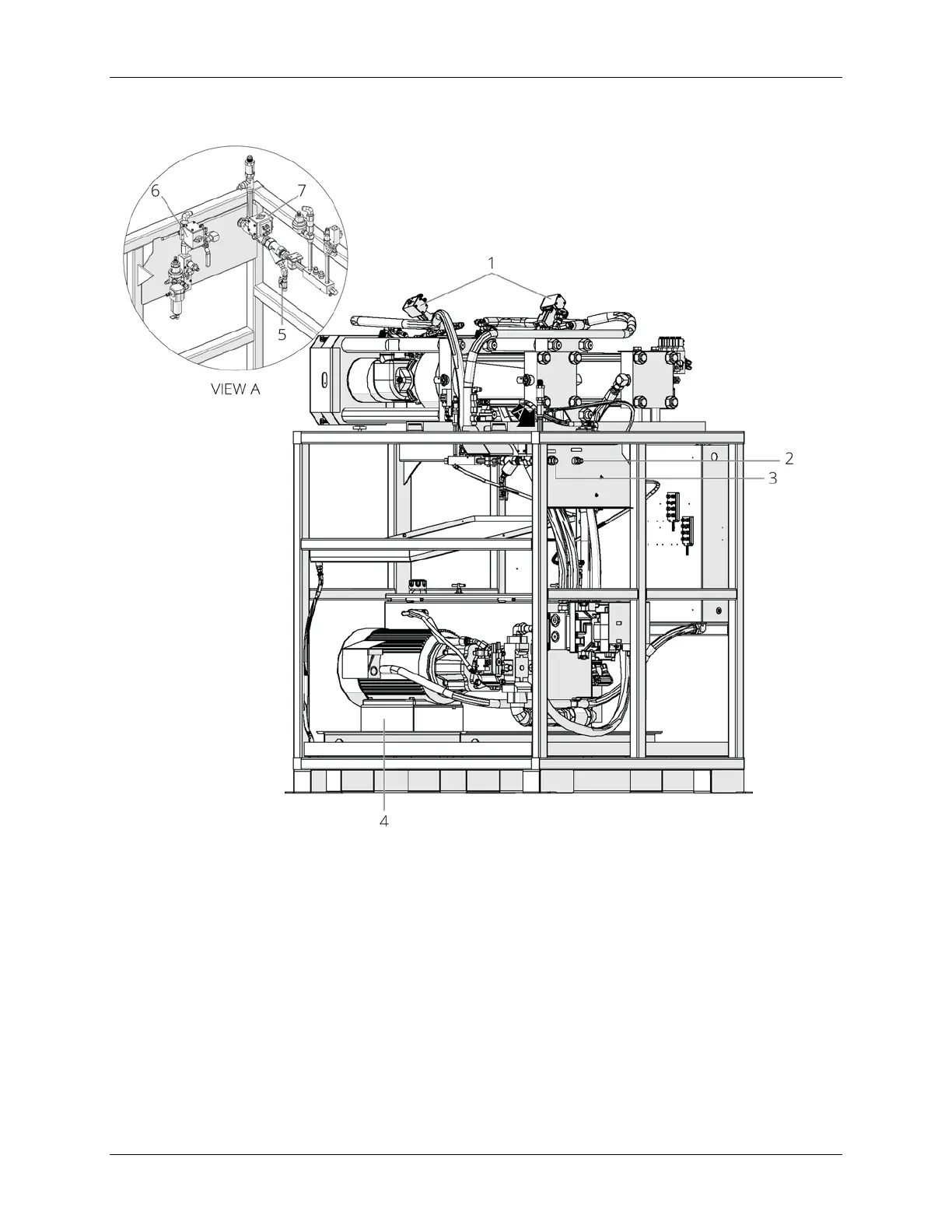

Back
1. Top Injector Valve Assembly
2. Vapor CO
2
Supply
3. Liquid CO
2
Supply
4. Hydraulic Unit
5. Liquid Bleed Valve
6. Vapor Purge Valve
7. Liquid CO
2
Supply Valve
