Operation Manual P750/P1500/P3000
Cold Jet, LLC Page 18

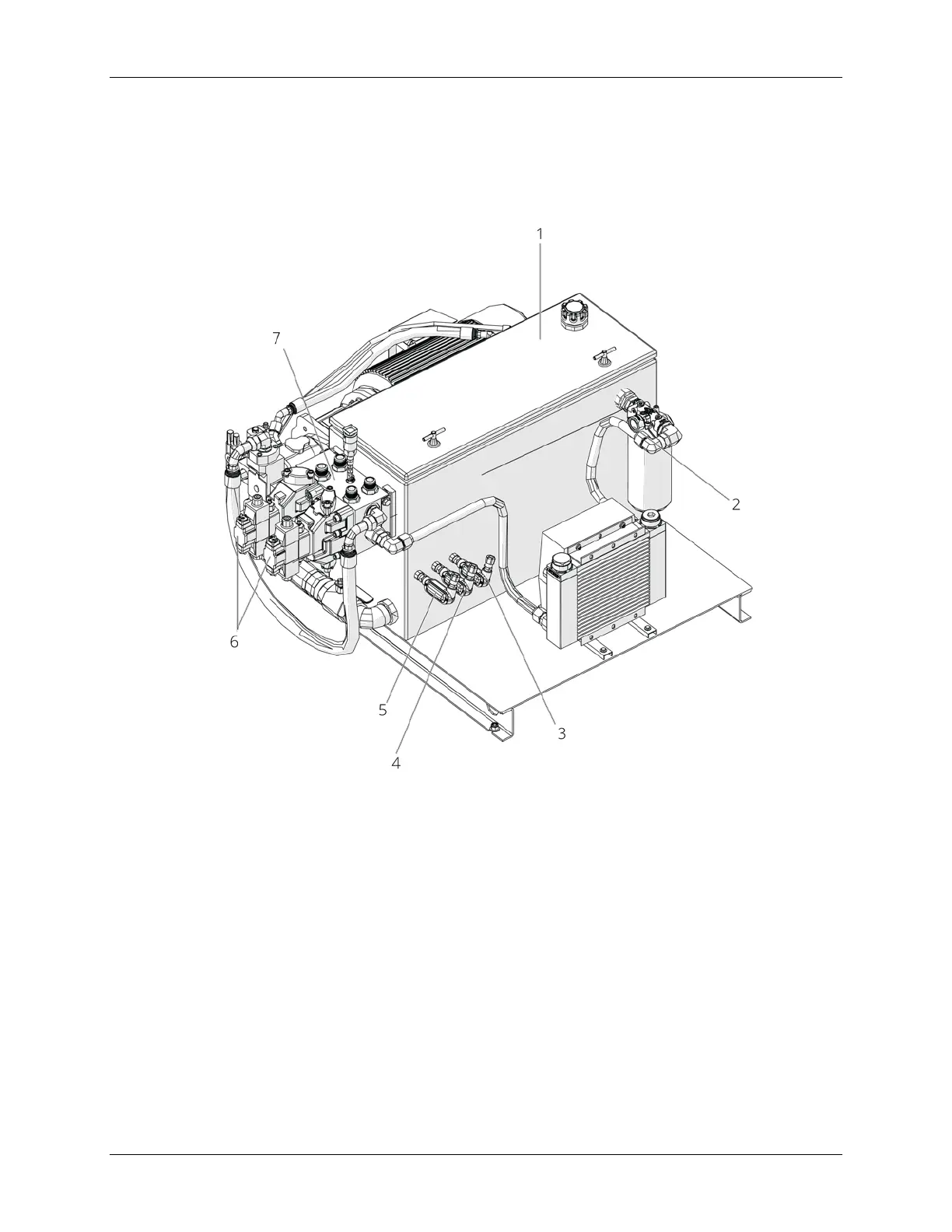

Hydraulic Unit
1. Hydraulic Oil Tank
2. Oil Filter
3. Oil Temperature Sensor
4. Oil Level Sensor
5. Cooling Fan Sensor
6. Hydraulic Directional Control Valve Solenoid
7. Directional Control Valve
