Cold Jet PR350H - Page 115

2 1
* *
6 1
3 2
7 1 7 1
SHIPPED TO MANUFACTURER:
3 2
6 1
* *
7 1
7 1
514781 ASSEMBLY KIT FOR FRAME PR120H
ITEM
NO.
PART
NUMBER
DocNumber
Description
QTY.
1 93366
Handle M6 x145
4
2 81368
Hexagon nut, DIN 934, M20, A2
4
3 81335 81355
NUT, HEX W/ NYLON INSERT, M8, STAINLESS STEEL
18
4 81315
DIN 6798 A Ø6,4 A2
6
5 81310
-DIN 912 M6 x 16 ---
16N-81310-A
SCREW, SOCKET HEAD CAP, M6 X 16 MM LONG, STAINLESS STEEL
8
6 70057
DIN 912 M6x10 A2
36
7 70040 70040
WASHER, M6, STAINLESS STEEL
51
8 70032
Button head, ISO 7380, M6 x 8, A2
10
9 70010
Screw, ISO 7380, M6 x 10, A2
2
10 70009
-DIN EN ISO 7040 -
M6 - N-70009-
NUT, HEX W/ NYLON INSERT, M6, STAINLESS STEEL
6
11 70009 70009
Lock nut, M6, A2
8
12 70014
Button head, ISO 7380, M8 x 20, A2
8
13 514699
-Hexagon Flange Nut
DIN 6923 - M6 - N--
Hexagon Flange Nut DIN 6923 - M6 - N
8
14 514697
P294-1-20229-A
Bracket for cable component
1
15 513718
P294-1-18750-B
SUSPPENSION BRACKET, CO2 out, PR120H
1
16 512831
P294-1-18611-A
Bracket for cable component
1
17 512608
P294-1-16232-B
Cable tray, PR120 H
1
18 512606
P294-1-15938-D
Connection plate
1
19 512605
P294-1-16270-B
Box for panel PR 120 H
1
20 512604
P294-1-16269-B
Console for panel PR 120 H
1
21 511297
-1--
Washer DIN9021 6,4 A2
4
22 510783 510783
Weld stud M8x30 A2 DIN 32501
6
23 510783 510783
Weld stud M8x30 A2 DIN 32501
12
24 510782 510782
Weld stud M6x16 A2 DIN 32501
14
25 510514 510514
Muff 1/2" x 8 mm
1
26 500842
P035-1-6373-C
BRACKET, FILTER/REGULATOR
1
27 500714
-DIN 912 M6 x 35 ---
24C--
SCREW, SOCKET HEAD CAP, M6 X 35 MM LONG, STAINLESS STEEL
8
28 500141
-M20-500141-A
DIN 125A, M20, A2
4
29 105025
Tongue lock
22
30 105024
P028-2-4395-B
Frame fitting for gas cylinder
4
31 105019
P270-1-4608-A
Hinge, door
8
32 104007
P028-2-5164-D
Bracket for gasdamper
4
33 512559
P294-1-16187-A
Cabinet sheet front bottom
2
89
P294-2-20311-A
WOODEN BOARD 96x20x1060 mm
4
90
P294-2-15386-A
Proifile for bushings 50x50x3 L=345 mm
1
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
514703
Article nr.:
Copy from:
Industrivej 62 DK-6740 Bramming TLF. +45 76561500 FAX. +45 76561509 www.icetechworld.com
-
Material:
P294-1-20227
2/2
Sheet no: Projection:
A3
Creator:
Rev:
A
Date:
Scale:
Weight:
471.47 kg
1:20
Description:

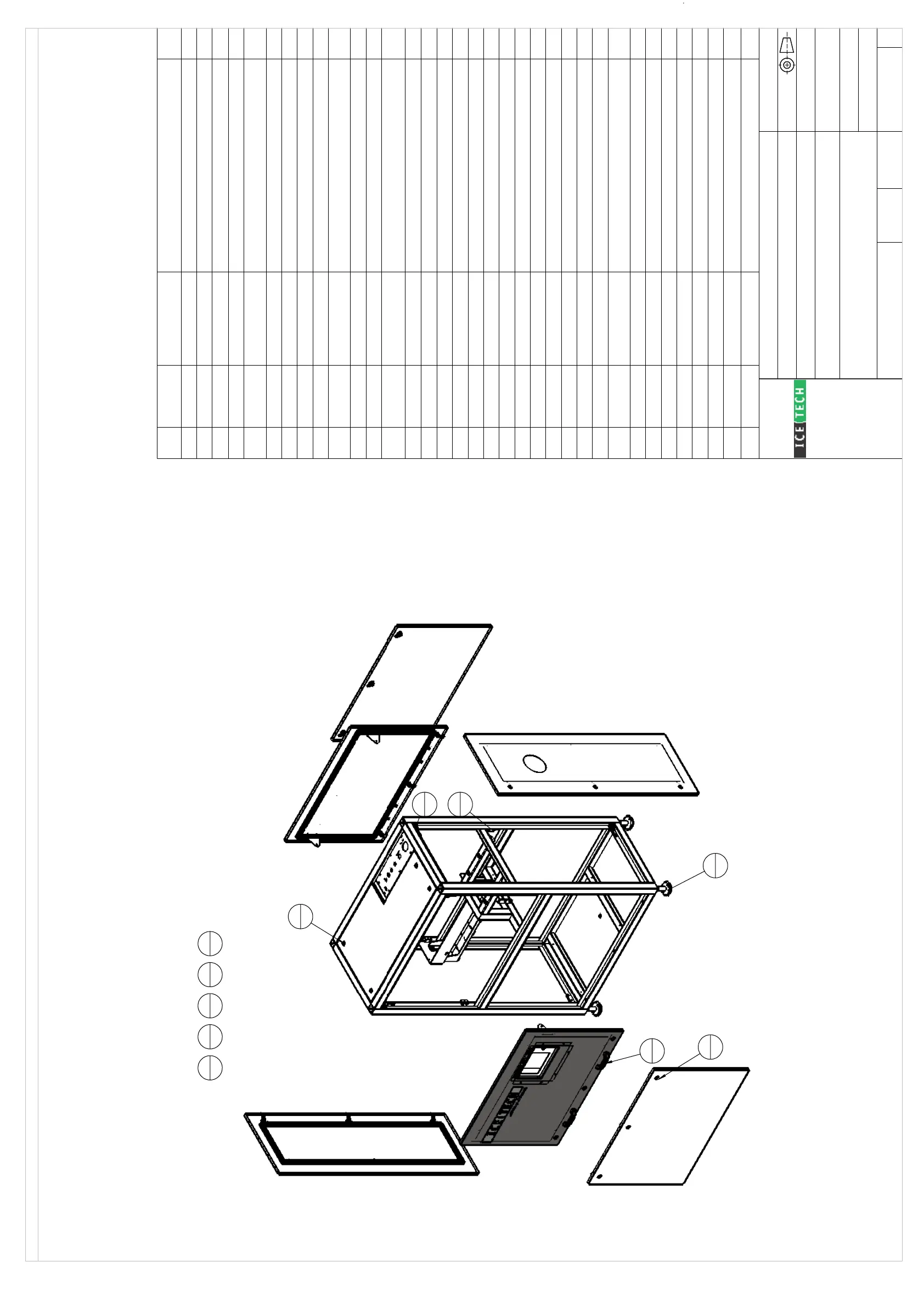

FRAME AND CABINETS PR120H
Format:
lm
Drawing no.:
IceTech A/S
18-09-17
