Cold Jet PR350H - Page 116

6 2
10
8
9 8
B
5 4
4 4
3
12
2 1
1 1
7 4
3
12
3
12
8 4
11
1
D
D
NOTES:
CLEAN THE THREADS ON THE STUD BOLTS AND APPLY SEMI-PERMANENT THREAD SEALING COMPOUND TO THE THREADS ON
1.
THE END THAT IS SCREWED IN THE ALUMINIUM HOUSE. TIGHTEN THE STUD BOLTS BY HAND
2.
APPLY ANTI-SEIZE FOOD GRADE COMPOUND AFTER CLEANING THE THREADS
3.
FOLLOW THIS PROCEDURE FOR MONTING THE DIE PLATE, AND HYDRAULIC CYLINDER:
4. STEP 1. CROSS TENSION THE 8 MAIN NUTS TO TORQUE 37 FT-LBS (50 NM) STEP 2. CROSS TENSION THE 8 MAIN NUTS TO TORQUE 148 FT-LBS (200 NM) STEP 3. TENSION THE 8 LOCKING NUTS TO TORQUE 74 FT-LBS (100 NM) 5. APPLY VASELINE/SILICONE BASED COMPOUND TO THE O-RING TO KEEP IT IN PLACE DURING ASSEMBLY 6. APPLY SEMI-PERMANENT THREAD SEALING COMPOUND TO THE LINEAR ENCODER FITTINGS IF NOT PRE-APPLIED.
SEE NOTE #1 SEE NOTE #2 SEE NOTE #3
SEE NOTE #1 SEE NOTE #2 SEE NOTE #3
SEE NOTE #5
TIGHTENED BY HAND. SEE NOTE #3
SEE NOTE #4
C
SEE NOTE #6
TORQUE TO 55 FT-LBS (74 NM) SEE NOTE #3
TORQUE TO 55 FT-LBS (74 NM) SEE NOTE #3
REVISIONS
REV.
DESCRIPTION
DATE
IN ITIALS
B
updated Extruder
2016-02-19
lm
C
general update, add Linear transduser
30.10.2016
lm
D
Added notations
18-03-2019
Hmh
ITEM NO.
PART NUMBER
Description
1/QTY.
1 511439
Extruder cylinder
1
2 511458
CYLINDER, COMPLETE, PR120H
1
3 81369
Washer, DIN 125A, M20, A2
12
4 511457
Nut DIN934 M20x1,5 A2
4
5 511456
Nut DIN439 M20x1,5 A2
4
6 512610
Extruder mount, PR 120 H
2
7 500245
Bolt, M20 x 90, A2, DIN 931
4
8 81368
Hexagon nut, DIN 934, M20, A2
4
9 81354
DIN 125A, M12, A2
8
10 502076
Unbracoskrue, M12 x 40, A2
8
11 510088
ENCODER, LINEAR, 300MM LONG, ETHERCAT PR350H/PR750H EXTRUDER PLATE/SL1000H
1
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
Break sharp edges and deburr
Dimension tolerance acc. to DS/ISO 2768-1 m Geometric tolerance acc. to DS/ISO 2768-2 K
511442
Article nr.:
Copy from:
Industrivej 62 DK-6740 Bramming TLF. +45 76561500 FAX. +45 76561509 www.icetechworld.com
-
Material:
P294-1-12090
1
Sheet no: Projection:
A3
Creator:
Rev:
D
Date:
Scale:
Weight:
kg
1:6

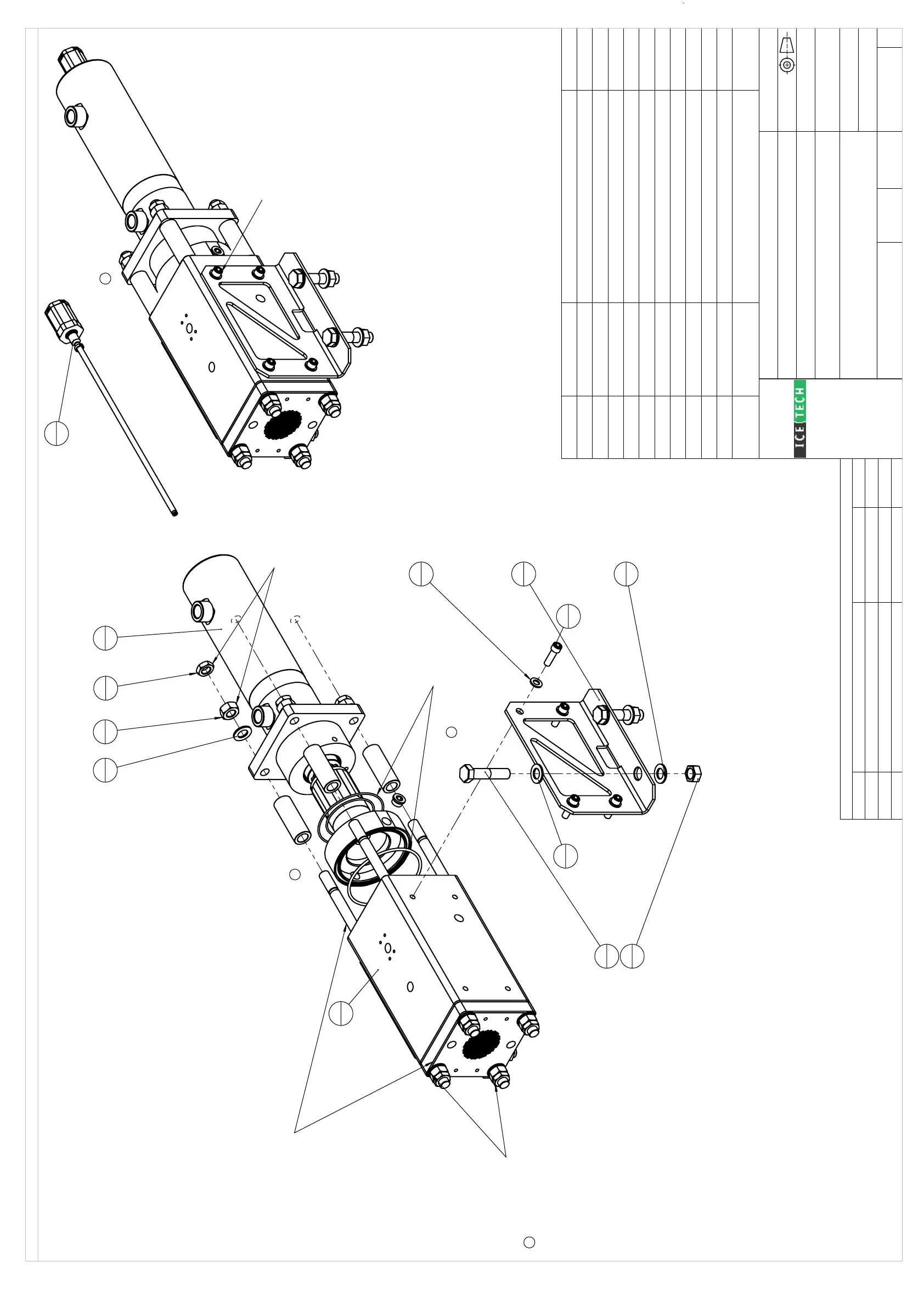

Description:
Extruder Unit
Format:
jm
Drawing no.:
IceTech A/S
06-10-14
