Pre-Installation Guidelines & Checklist
11
Utility Connections

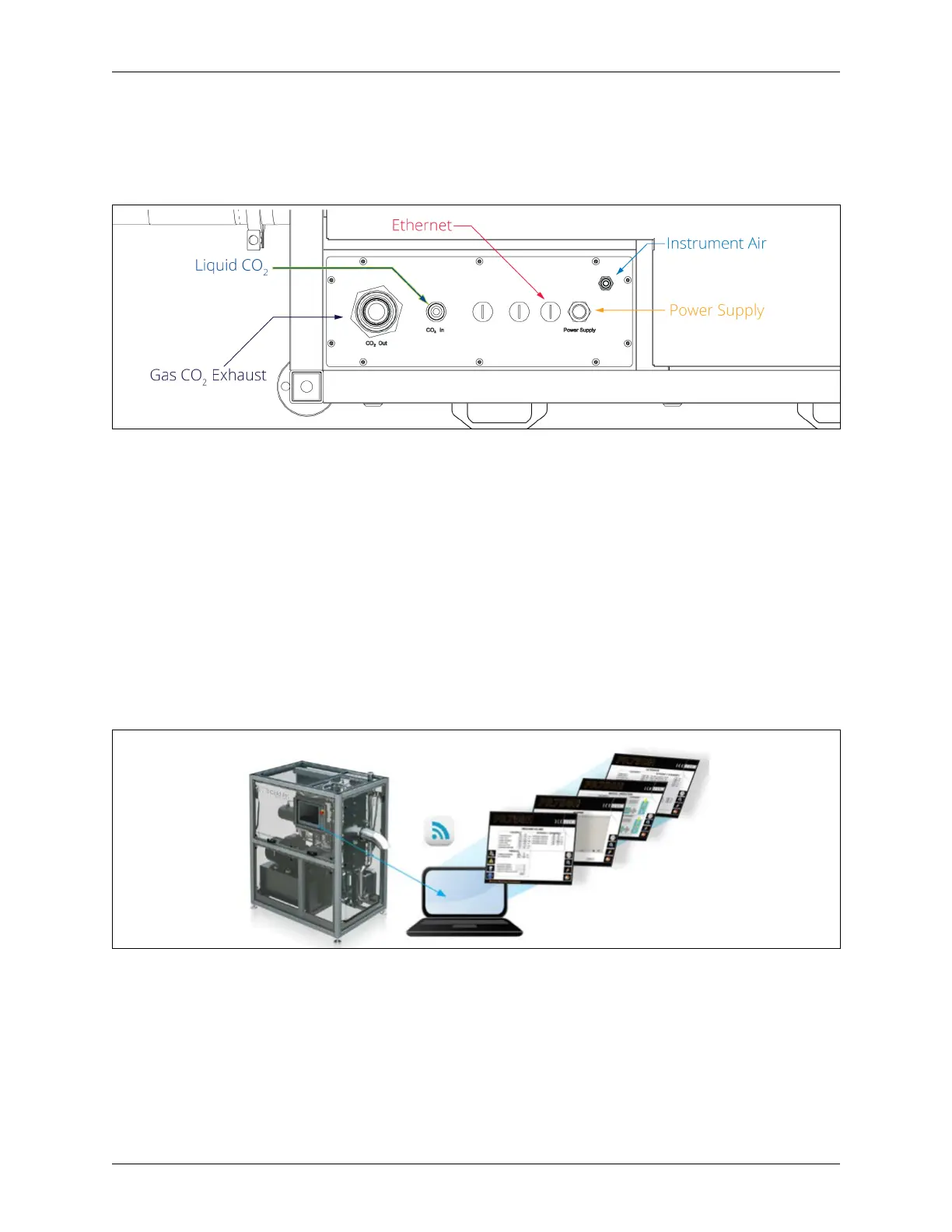

The utility connections are located on top of the pelletizers (refer to "Figure 4: Utility
Connections").
Figure 4: Utility Connections
Cold Jet Connect™ Internet Connection
Cold Jet Connect™ is your access to quick and eective remote technical support. Via the
internet, a Cold Jet technician can view the machine data in real time and support the owner/
user in for continued optimized machine performance or quick diagnostic of other uptime
related issues.
The customer is responsible for the internet connection and the machine, Beckho PLC, is
connected to internet either directly through an Ethernet ISP or by using a mobile 3G/4G
connection. The connection is established with a network cable RJ45 plug.
Figure 5: Internet Connection
