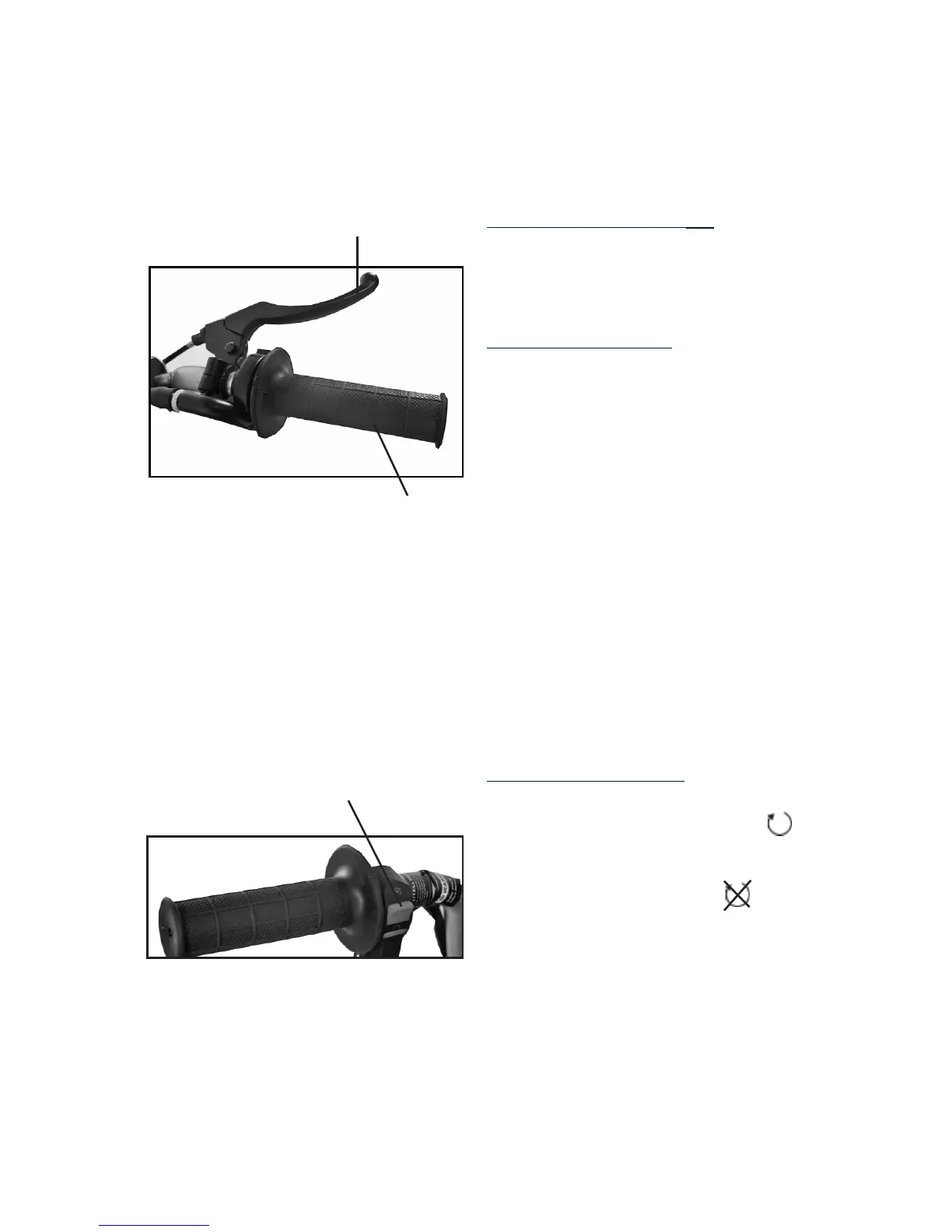

Right hand brake lever (1). Front
brakes are applied when the right
hand brake lever is pulled toward
the hand grip.
Right Throttle Grip (2): The engine
speed is regulated by the position
of the right throttle grip. Throttle is
increased by turning the throttle grip
toward the operator. Engine speed
is decreased by turning the throttle
grip away from the operator.
Engine Stop Switch (3) : Dirt Bike
engine can start when the En-
gine stop switch is placed in the
(on) position. Engine will shut off
and the engine will not start when
the switch is placed in the (off)
position.
Note: The key switch located on
the side of the dirt bike needs to be
placed in the (on) position for the
engine to start.
1
2
Right side handlebar functions
DESCRIPTION AND PART FUNCTIONS
Left side handlebar functions
3
9
