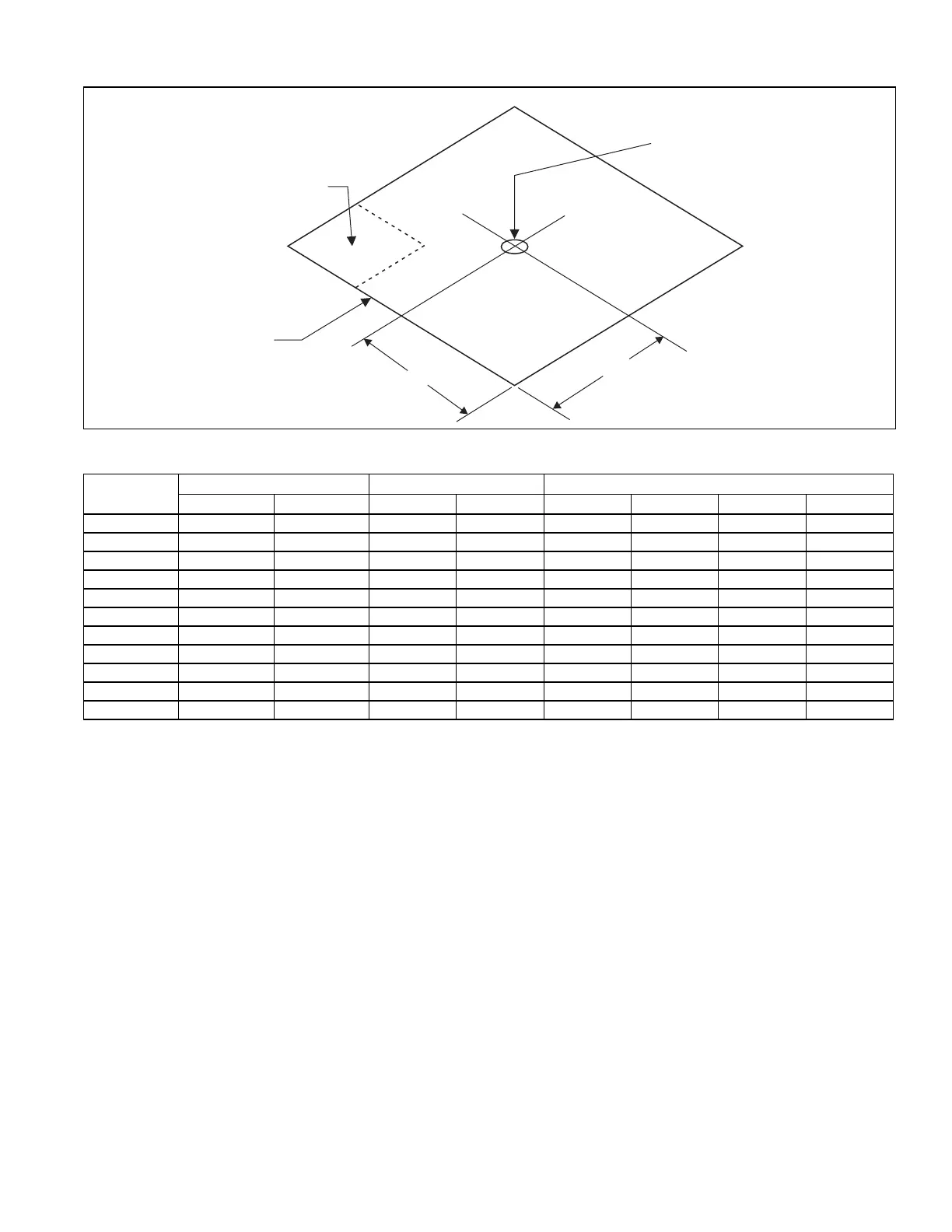

WEIGHTS AND DIMENSIONS
Model Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
Shipping Operating X Y ABCD
36050 399 394 28 15 141 107 94 78
36075 406 401 28 15 135 115 103 74
36100 410 405 28 15 139 113 99 80
42075 446 441 28 15 145 112 99 85
42100 448 443 28 15 148 110 96 89
48065 465 460 28 15 189 116 93 117
48100 473 468 28 15 169 139 115 100
48125 478 473 28 15 164 145 124 95
60065 482 477 29 15 174 142 124 92
60100 486 481 28 15 177 140 117 102
60125 493 488 27 15 151 167 141 84
X
CENTER OF
GRAVITY
FRONT
OF UNIT
Y
"D"
"C"
"B"
"A"
A0295-001-TG
COMPRESSOR
