Coleman PCG4B60 - Unit Dimensions

5564041-CTG-A-1018
Johnson Controls Unitary Products 9

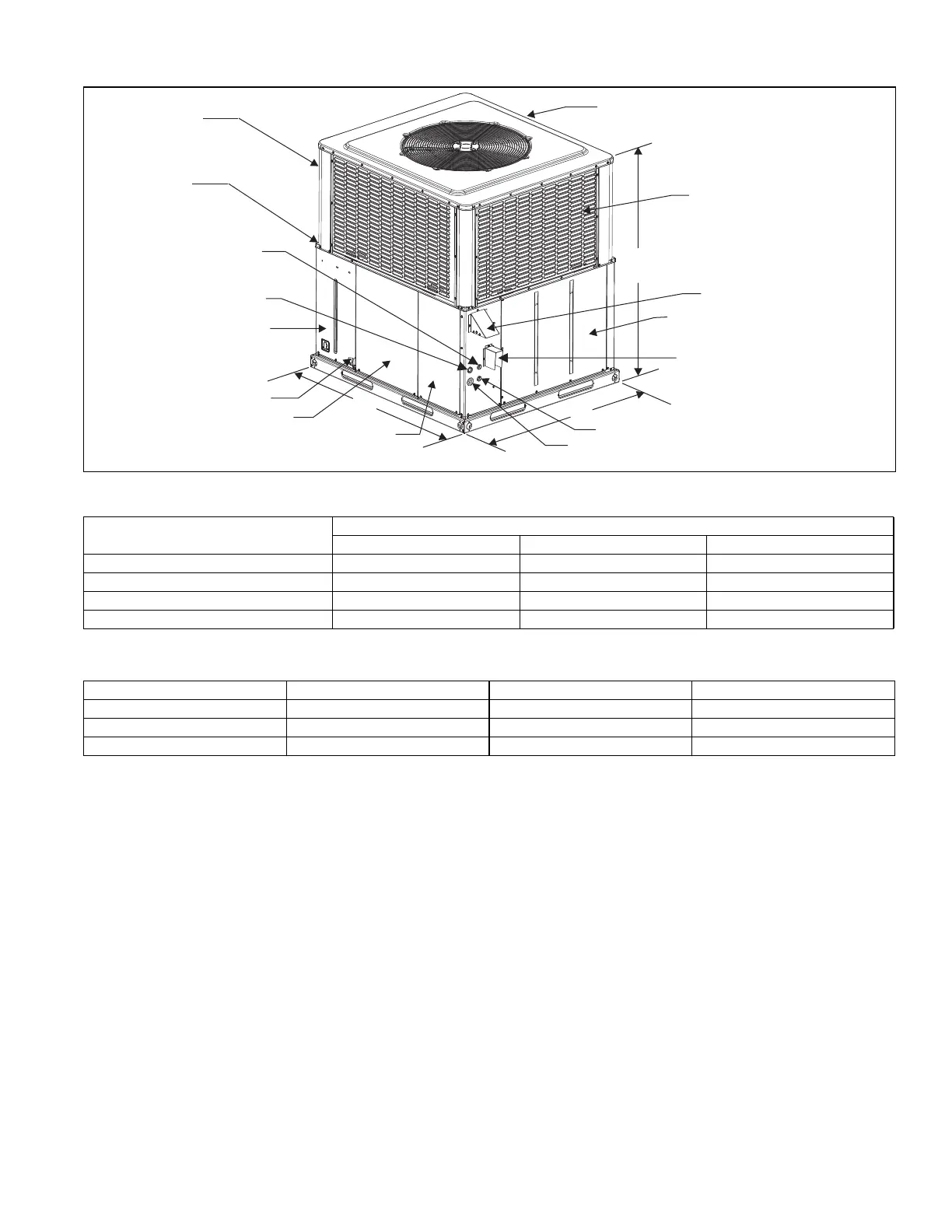

UNIT DIMENSIONS
Model
Dimensions
ABC
A36 51-1/4 35-3/4 47
A42 51-1/4 35-3/4 49
B48 51-1/4 45-3/4 49
B60 51-1/4 45-3/4 51
UNIT CLEARANCES
1,2
1. A 1" clearance must be provided between any combustible material and the supply air duct work.
2. The products of combustion must not be allowed to accumulate within a confined space and recirculate.
Direction Distance (in.) Direction Distance (in.)
Top
3
3. Units must be installed outdoors. Over hanging structure or shrubs should not obstruct condenser air discharge outlet.
36 Power Entry (Right Side) 36
Side Opposite Ducts 36 Left Side 24
Duct Panel 0 Bottom
4
4. Units may be installed on combustible floors made from class A, B or C roof covering materials.
1
