Colorlight X2 User Manual

www.colorlightinside.com
6
5.2 LED Screen Setting

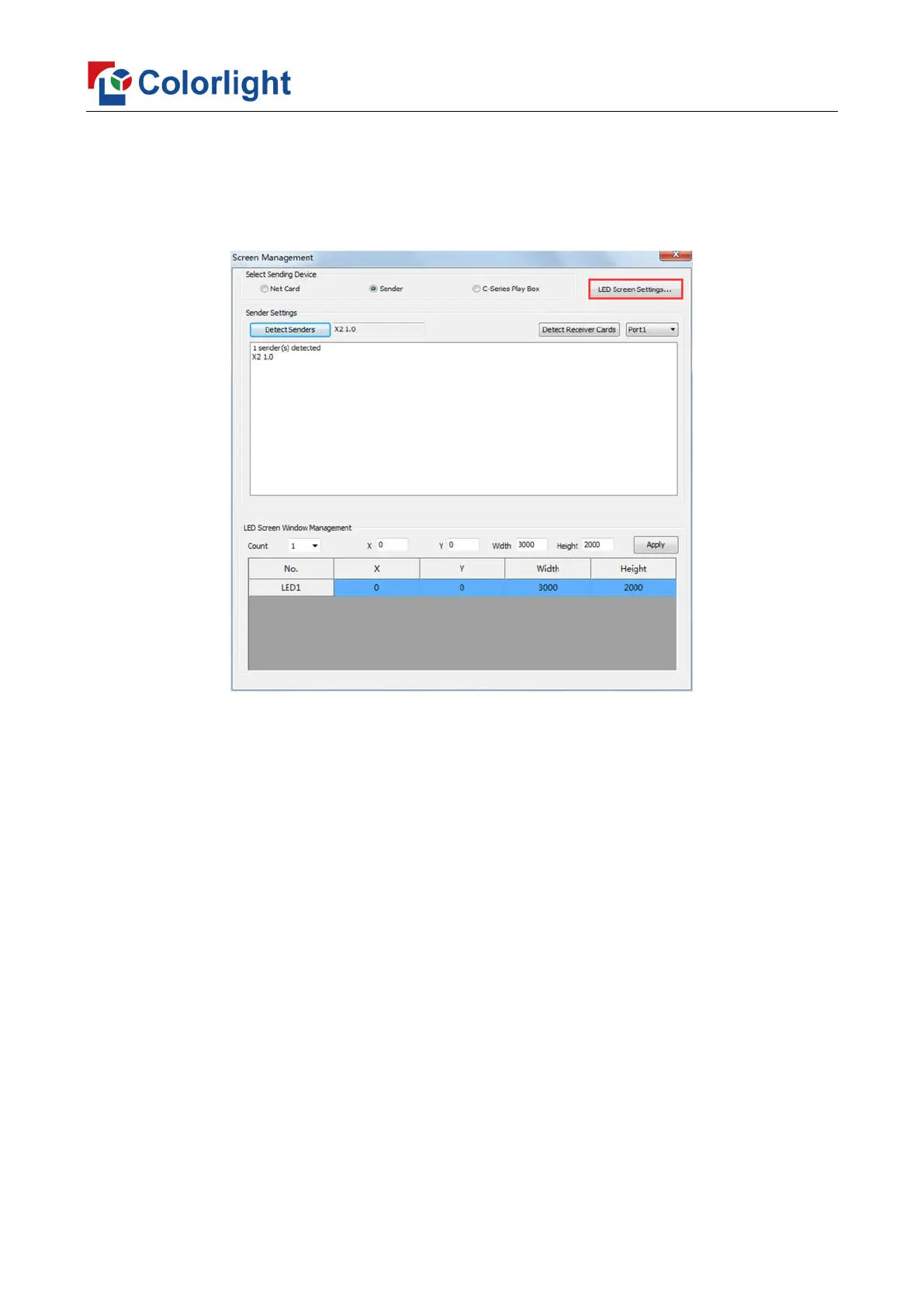

Click [LED Screen Settings] to enter the LED Screen Setting interface, and set up
“Sending Device”, “Screen Parameters”, “Connection Parameters”.
5.2.1 Sending Device Setting
[Select Sending Device] for [Sender], and detect senders. Sending Device Setting
includes 4 parts: Output, EDID, Other, Detect Receivers.
1, Output
① Signal Source
When the input signal source of X2 is normal, the upper right of the software interface
will display the input signal information auto acquired via the software. Users can select
specific signal source (HDMI/DVI/SDI/VGA/AV) according to needs in [Main], at the
moment, the image of selected signal source will display in the Image View Area on the left
of the software interface.
