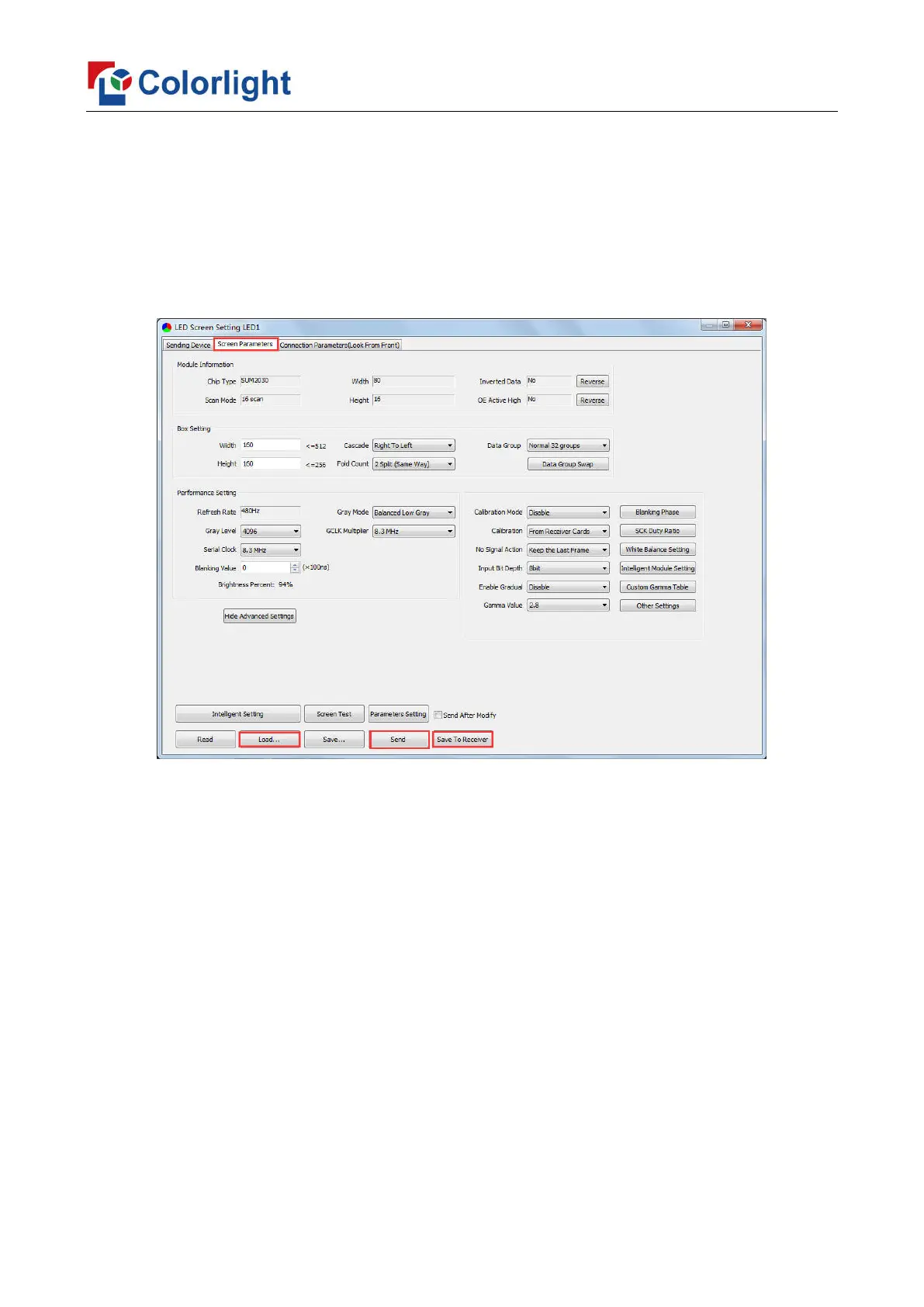

5.2.2 Screen Parameters Setting
Observe the display screen with single cabinet as a unit, and if all cabinets themselves
could display normally {it is normal circumstance even the picture between cabinets is not
continuous}, please ignore this step and directly go to the next step.
Otherwise, configuration must be done as follows:
Click [Load], choose the correct parameter file.
Click [Send], to send the loading parameters to the receiving cards. At the moment,
each cabinet should display normally (it is normal circumstance even the picture between
cabinets is not continuous), then click [Save to Receiver] to save the parameters to the
receiving cards.
If each cabinet cannot display normally, you can conduct via the Basic Setting
(Module Information, Box Setting, Performance Setting) or Intelligent Setting, and you
can also contact with the LED screen engineers.
5.2.3 Connection Parameters Setting
Users don’t need to set up the control area of each net port respectively, but to the
connection relationship between the receiving cards under the network port loading via
