Inteli NT GeCon MINT, SW Version 1.4, ©ComAp – June 2007
IGS-NT-GeCon-MINT-1.4.PDF
29
Common BOC
The output closes if any “Breaker Open & Cool-down”-type alarm appears. The output opens, if no “Breaker
Open & Cool-down”-type alarm is active and FAULT RESET has been pressed.
Common Al
The output closes if any “Alarm only”-type alarm appears. The output opens, if no “Alarm only”-type alarm is
active and FAULT RESET has been pressed.
Common Hst
The output closes if any “History record”-type alarm appears. The output opens after 1s.
CommonActLev 1
The output is a logical OR of Common Al and Common Wrn outputs.
CommonAlLev 1
The output is active if at least one of the 1
st
level alarms (Al, Wrn) is active or not yet confirmed.
Hint:

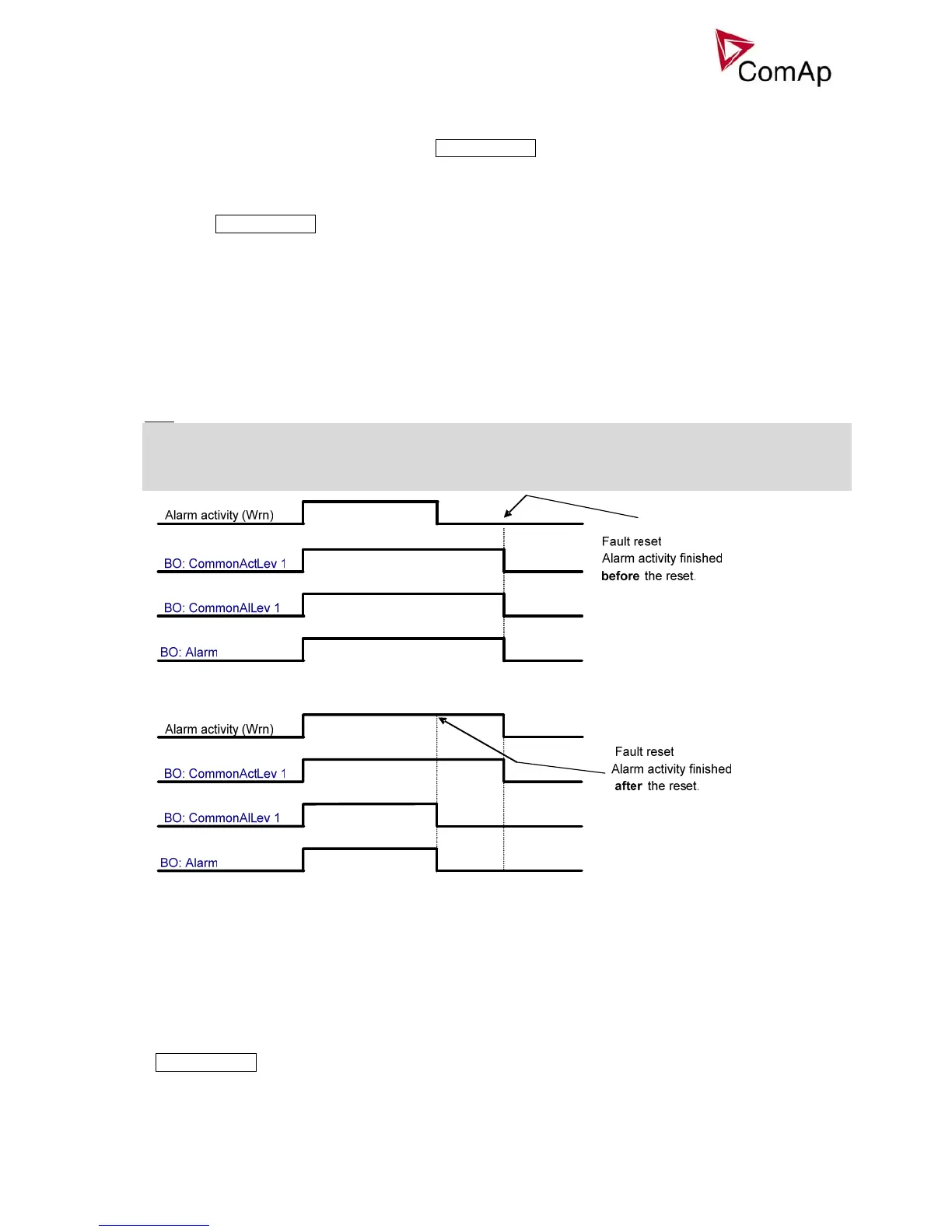

See picture below with signal behaviour description. The same behaviour like for “Warning”-type alarm would
be for “Alarm only”.
The same behaviour, but with signals CommonActLev 2 and CommonAlLev 2 would be for
“BreakerOpen&Cool-down”, “Slow stop” and “Shutdown”-type alarms
CommonActLev 2
The output is a logical OR of Common BOC, Common Stp and Common Sd outputs.
CommonAlLev 2
The output is active if at least one of the 2
nd
level alarms (BOC, Stp, Sd) is active or not yet confirmed.
Alarm flashing
If any alarm comes up, the output starts periodic closing/opening with period 1s/1s. It opens and stays open
if FAULT RESET is pressed.
