Inteli NT GeCon MINT, SW Version 1.4, ©ComAp – June 2007
IGS-NT-GeCon-MINT-1.4.PDF
48

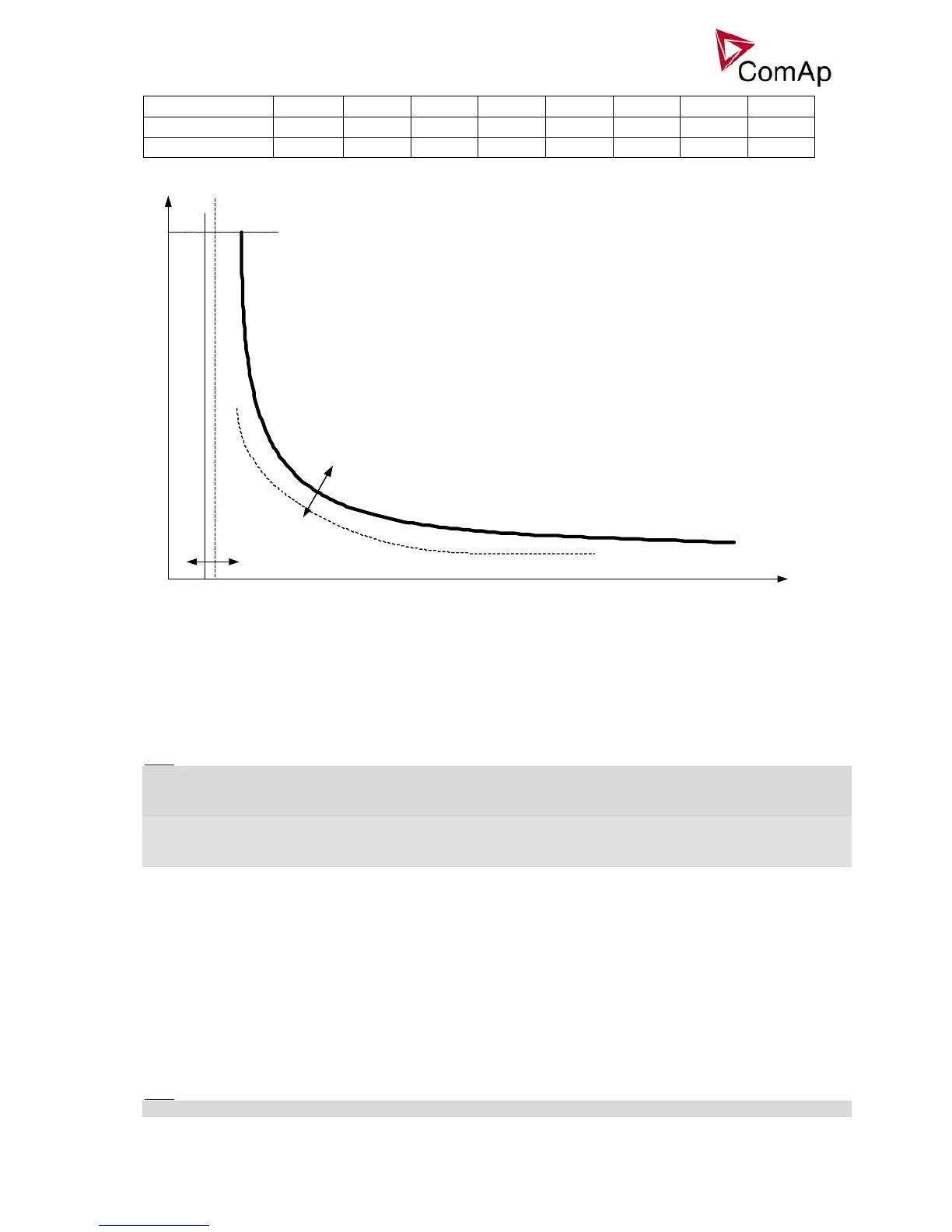

10,0 No action 1100 550 220 110 27,5 12,223
20,0 No action 2200 1100 440 220 55 24,445
50,0 No action No action 2750 1100 550 137,5 61,112
Pgen
Nominal power
2POvrldStEvDel
Maximal Reaction time
Reaction time
OverldStrtEval
Min Power PtM [ % ] (FV)
Minimum Power in Parallel to the Mains is the minimal value of the gen-set power in parallel to the mains.
Gen-set is never loaded below this level (even if the active load control loop requests a lower level). There is
no indication or alarm when Min Power PtM level is reached.
Step: 1 % of Nomin power
Range: 0 – 100 % of Nomin power
Force value: Yes
Hint:
If the setpoint Base load is lower than setpoint Gener protect: Min power PtM, the gen-set requested load is
set to Gener protect: Min power PtM.
The value of Min Power PtM is ignored during Warming procedure.
The setpoint is used as a limit for Low power protection: if it becomes active, the load is ramped-down using
setpoint Sync/Load strl: Load ramp, to Min power PtM. After protection becomes inactive, the power
limitation is automatically terminated.
Ishort [ % ]
If the level set in this setpoint is reached, the GCB is opened with delay defined in Ishort del. Intended for
shortcurrent detection.
Step: 1 % of Nomin current
Range: 100 - 500 % of Nomin current
Protection: BreakerOpen & Cool-down.
Ishort del [ s ]
Delay for generator shortcurrent protection.
Step: 0,02 s
Range: 0,00 – 10,00 s
Hint:
Ishort del can be set to 0,01 s but this value is rounded to the proximate controller evaluation period.
