ComAp IG-NTC User Manual

Inteli NT GeCon MINT, SW Version 1.4, ©ComAp – June 2007
IGS-NT-GeCon-MINT-1.4.PDF
7

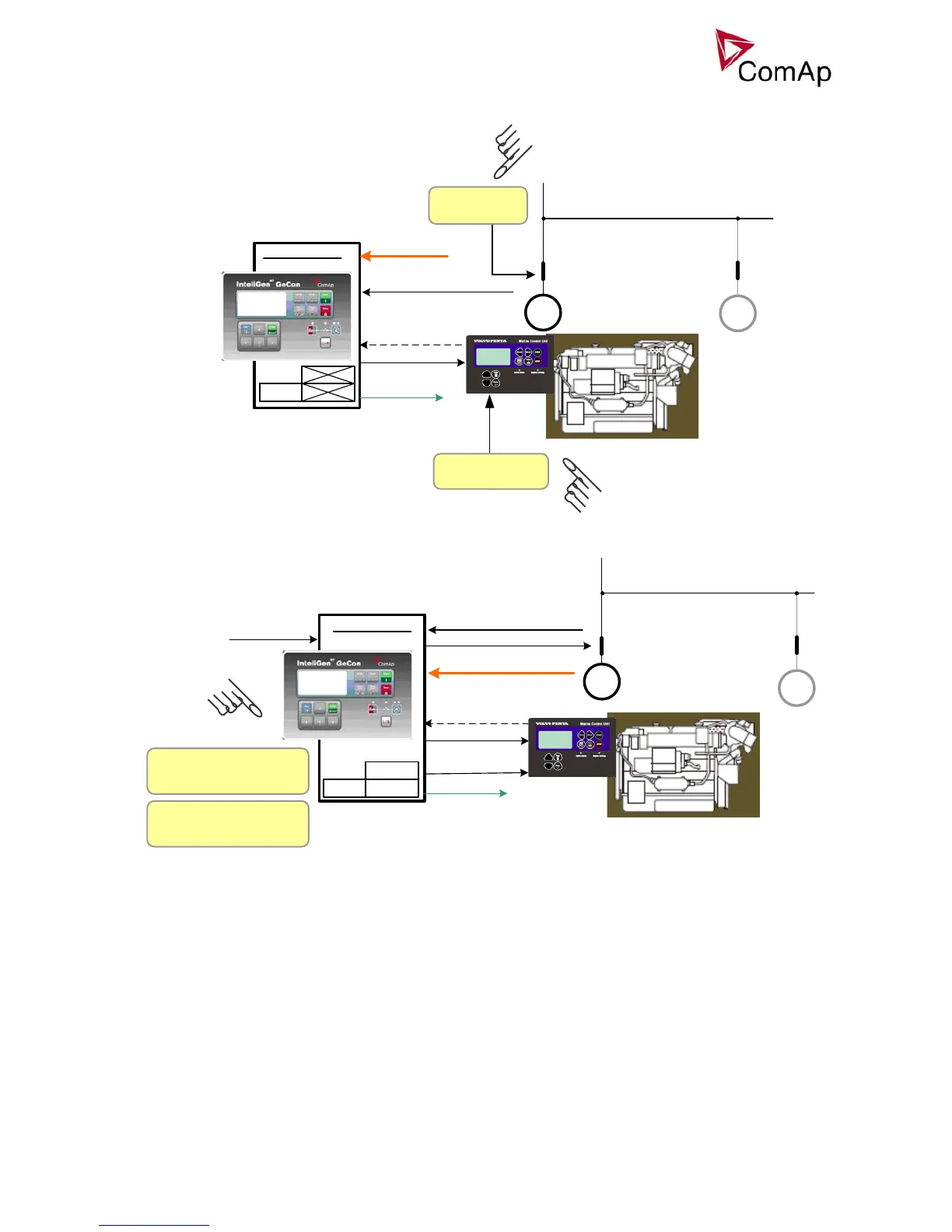

HAND mode
IG-EE GeCon
MINT
MCU
GCB feedback
GCB
close/open
Vg, Ig, Vb
RS232 - PC
Speed control
(Sync/Load ctrl)
GCB
START
STOP
(ReadyToLoad)
G
G
External Engine
Start / Stop
External GCB
Close / Open
generator
measuring
Process control: StartStopBtn = DISABLED
ProtectionMode = NOT ACTIVE
Sync/Load ctrl: Sync timeout = NO TIMEOUT
GCB open level = NO LEVEL
GCB open del = NO TIMEOUT
MCU
MAN mode
IG-EE GeCon
MINT
MCU
RS232 - PC
GCB
START
STOP
(ReadyToLoad)
G
GCB close/open
Remote start/stop
System s/s
G
Vg, Ig, Vb
Generator measuring
Process control: StartStopBtn = ENABLED
ProtectionMode = ACTIVE
Sync/Load ctrl: Sync timeout =
GCB open level =
GCB open del =
GCB feedback
Speed control
(Sync/Load ctrl)
Engine Start / Stop
is activated from GeCon
or externaly
GCB Close / Open is
activated from GeCon
or externaly
MCU
Engine start can be activated from
o Engine controller (e.g. ID-MCU)
o GeCon panel – Start button
o GeCon BI: StartButton
o Remotely e.g. from InteliMonitor
GeCon BI: ReadyToLoad initiates GeCon “Running” state” - activates Gener protect: Min stab time a Max
stab time within the generator electric protections are activated.
Gen-set is loaded/unloaded from
o GeCon panel – GCB button
o GeCon BI: GCBButton
o Direct GCB “hand” control
o Remotely e.g. from InteliMonitor
