Maintenance
Backup battery replacement
The internal backup battery should be replaced approx. every 5-7 years. Replace the battery, if the
alarm Low BackupBatt occurs. Follow these instructions:
1. Disconnect all terminals from the controller and remove the controller from the switchboard.

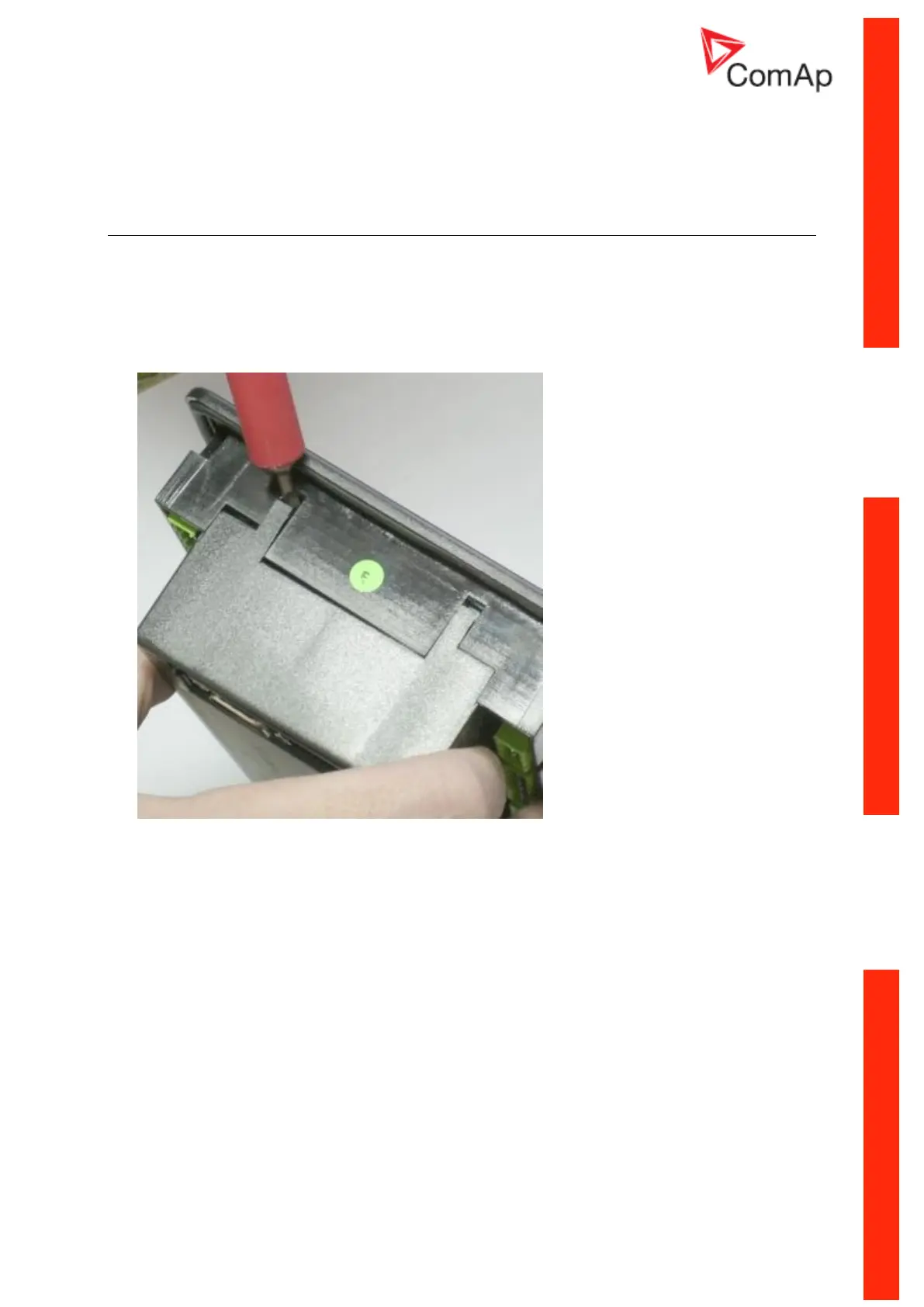

2. Release the rear cover using a flat screwdriver or another suitable tool.
3. Remove all plug-in modules.
4. The battery is located in a holder on the circuit board. Remove the old battery with a small
sharp screwdriver and push with a finger the new battery into the holder. Use only CR1225
lithium battery.

ComAp intelilite nt amf25 Specifications

General

Communication Ports	RS232, RS485, USB
Power Supply	8-36 VDC
Number of Digital Inputs	8
Number of Digital Outputs	8
Number of Analog Inputs	3
Number of Analog Outputs	2
Display	LCD with backlight
Supported Protocols	Modbus
Operating Temperature	-20°C to +70°C
Humidity	95% non-condensing
Weight	0.4 kg
Protection	IP65 (front panel)
Controller Type	AMF Controller
Storage Temperature	-30 to +80 °C
